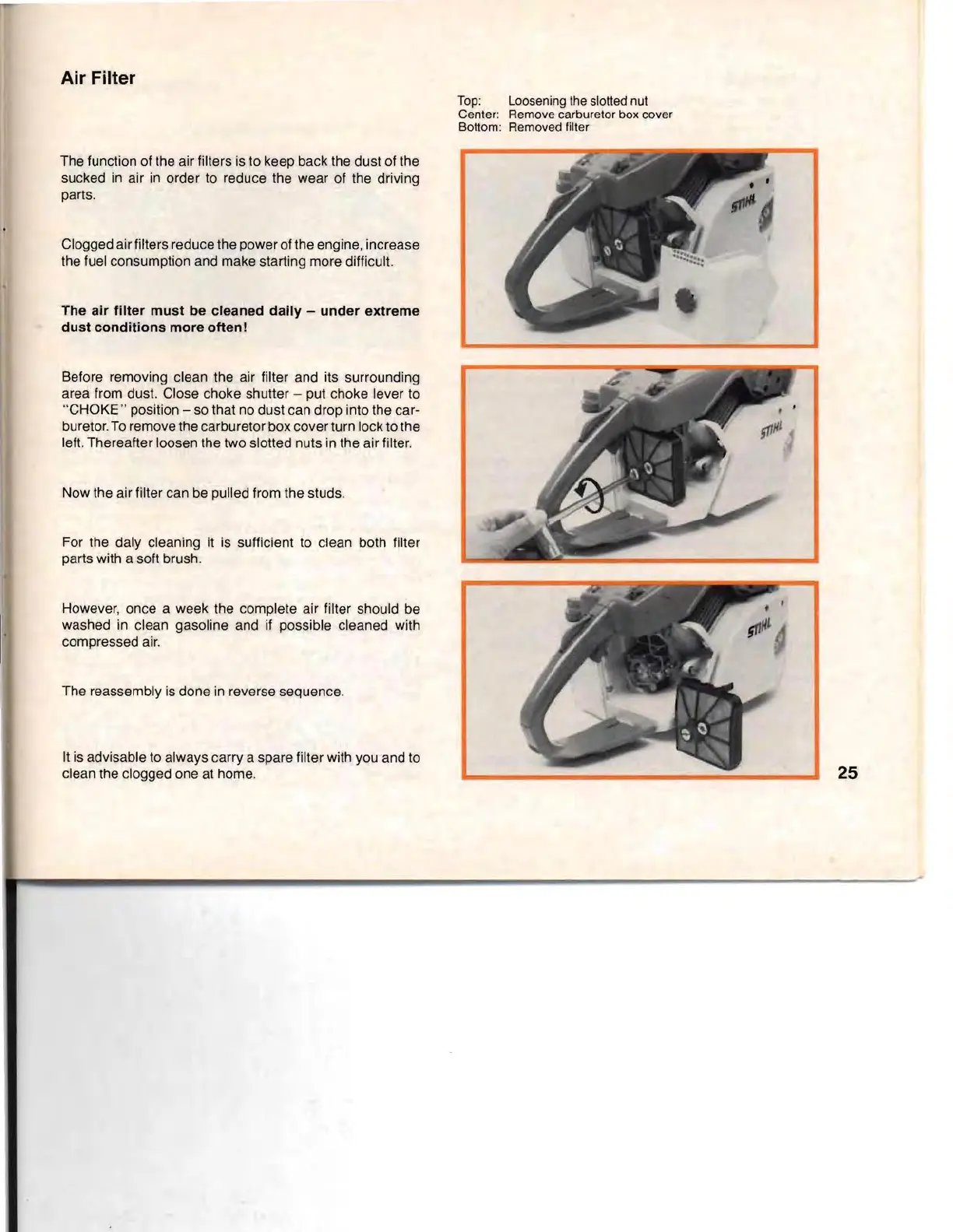

Air Filter
The function of the air filters
is
to keep back the dust of the
sucked
in
air
in
order to reduce the wear of the driving
parts.
Clogged air filters reduce the power of the engine, increase
the fuel consumption and make starting more difficult.
The air filter must be cleaned daily - under extreme
dust conditions more often!
Before removing clean the air filter and its surrounding
area from dust. Close choke shutter - put choke lever to
"CHOKE"
position - so that no dust can drop into the car-
buretor.
To
remove the carburetor box cover turn lock to the
left. Thereafter loosen the two slotted nuts
in
the air filter.
Now the air filter can
be
pulled from the studs.
For the daly cleaning it is sufficient to clean both filter
parts with a soft brush.
However, once a week the complete air filter should be
washed
in
clean gasoline and
if
possible cleaned with
compressed
air.
The reassembly is done
in
reverse sequence.
It
is advisable to always carry a spare filter with you and to
clean the clogged one at home.
Top:
Loosening the slotted nut
Center: Remove carburetor box cover
Bottom: Removed filter
25
