44

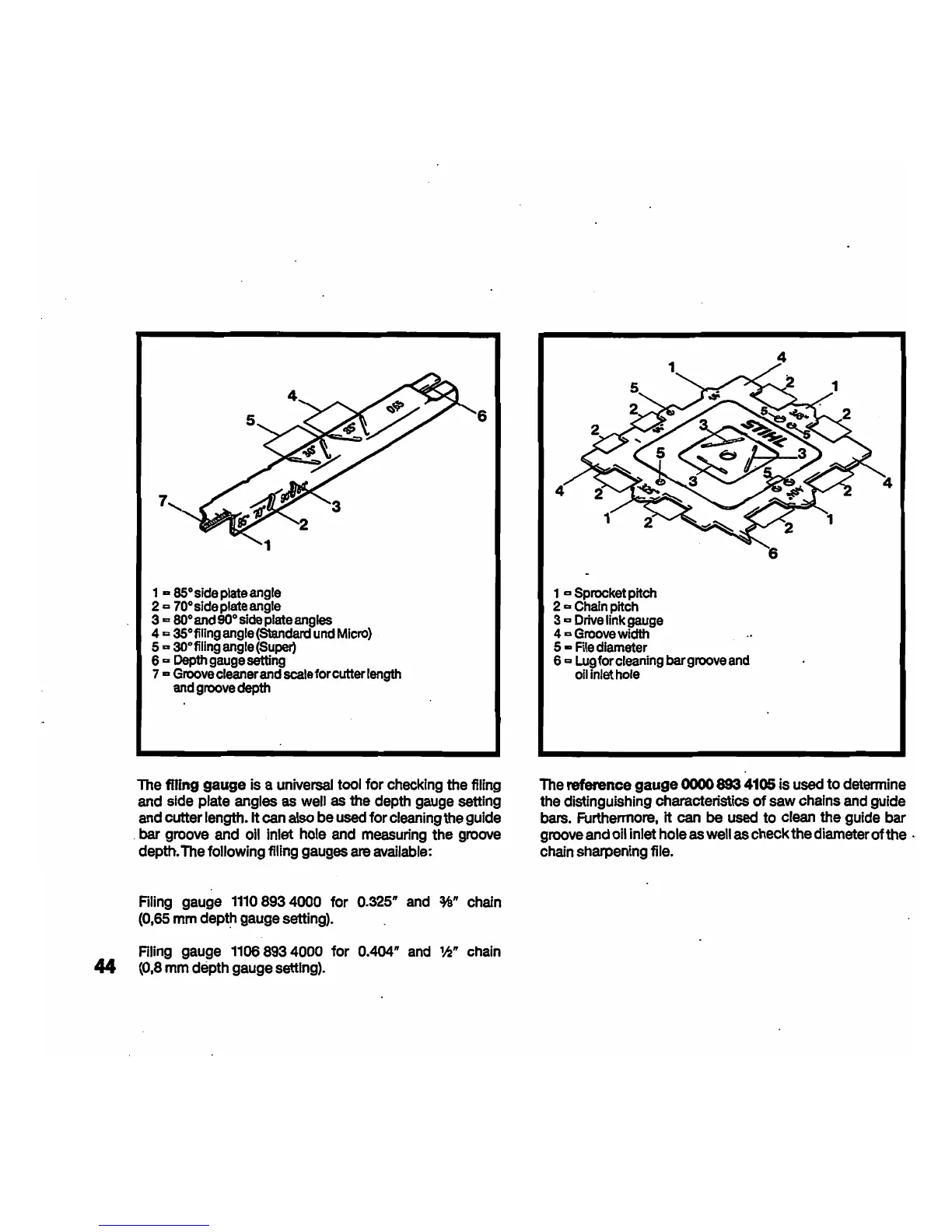

1 .. 85° side plate angle
2 1:1 70° side plate angle
3 ... aoo and 90° side plate angles
4 Q 35° filing angle (Standard und Micro)
5 a 3Qofiling angle (Supelj
6 a Depth gauge setting
7
... Groove cleaner and scale for cutter length
and groove depth
6
The filing gauge is a universal tool for checking the filing
and side plate angles as well as the depth gauge setting
and outter length. It can also be used for oleaning the guide
. bar groove and oil inlet hole and measuring the groove
depth. The following fiUng gauges are available:
Filing gauge 1110 893 4000 for 0.325" and %" ohain
(0,65 mm dep~ gauge setting).
Filing gauge 1106 893 4000 for 0.404" and '!h" chain
(0,8 mm depth gauge setting).
1 CI Sprocket pitch
2 .,. Chain pitch
3 a Drive link gauge
4 .,. Groovewidth
5 ... File diameter
6 III Lug for cleaning bar groove and
oil inlet hole
The reference gauge 0000 893 4105 is used to detennine
the distinguishing characteristics of saw ohains and guide
bars. Furthermore, it can be used to olean the guide bar
groove and oil inlet hole as well as oheck the diameter of the .
ohain sharpening file.
