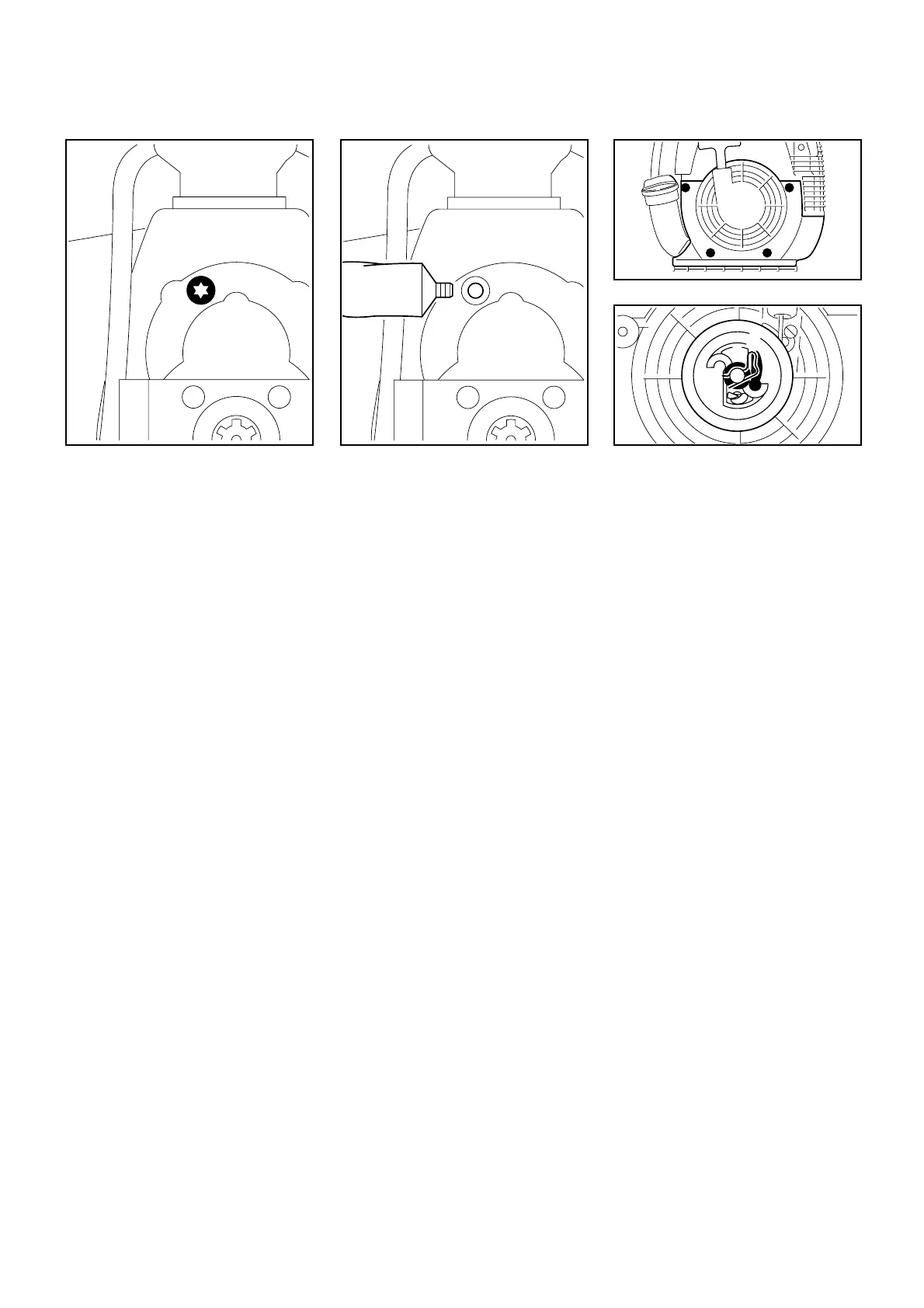

Check grease level about every 50
operating hours:
•
Unscrew the filler plug  - if there
is no grease on the inside of the
filler plug:
•
Apply tube  of STIHL gear
lubricant 0781 120 1117 to filler
hole.
•
Squeeze grease into the gear
housing - about 20 g (3/4 oz).
'RQRWFRPSOHWHO\SDFNWKHJHDU
KRXVLQJZLWKJUHDVH
•
Refit filler plug and tighten it down
firmly.
5HSODFLQJWKHVWDUWHUURSH

:DUQLQJ
The rope rotor rewind spring may pop
out and unwind during the following
operation.
To reduce the risk of injury, wear eye
and face protection.
•
Remove the screws .
•
Lift away the fan housing.
•
Remove the spring clip .
•
Carefully pull off the rope rotor
with washer  and pawl .
424BA021
2
5HSODFLQJWKH6WDUWHU5RSH
DQG5HZLQG6SULQJ
1
1
1
1
256BA063 KN
3
2
4
256BA032 KN
/XEULFDWLQJWKH'ULOOLQJ*HDU
424BA020
1
%7& 
