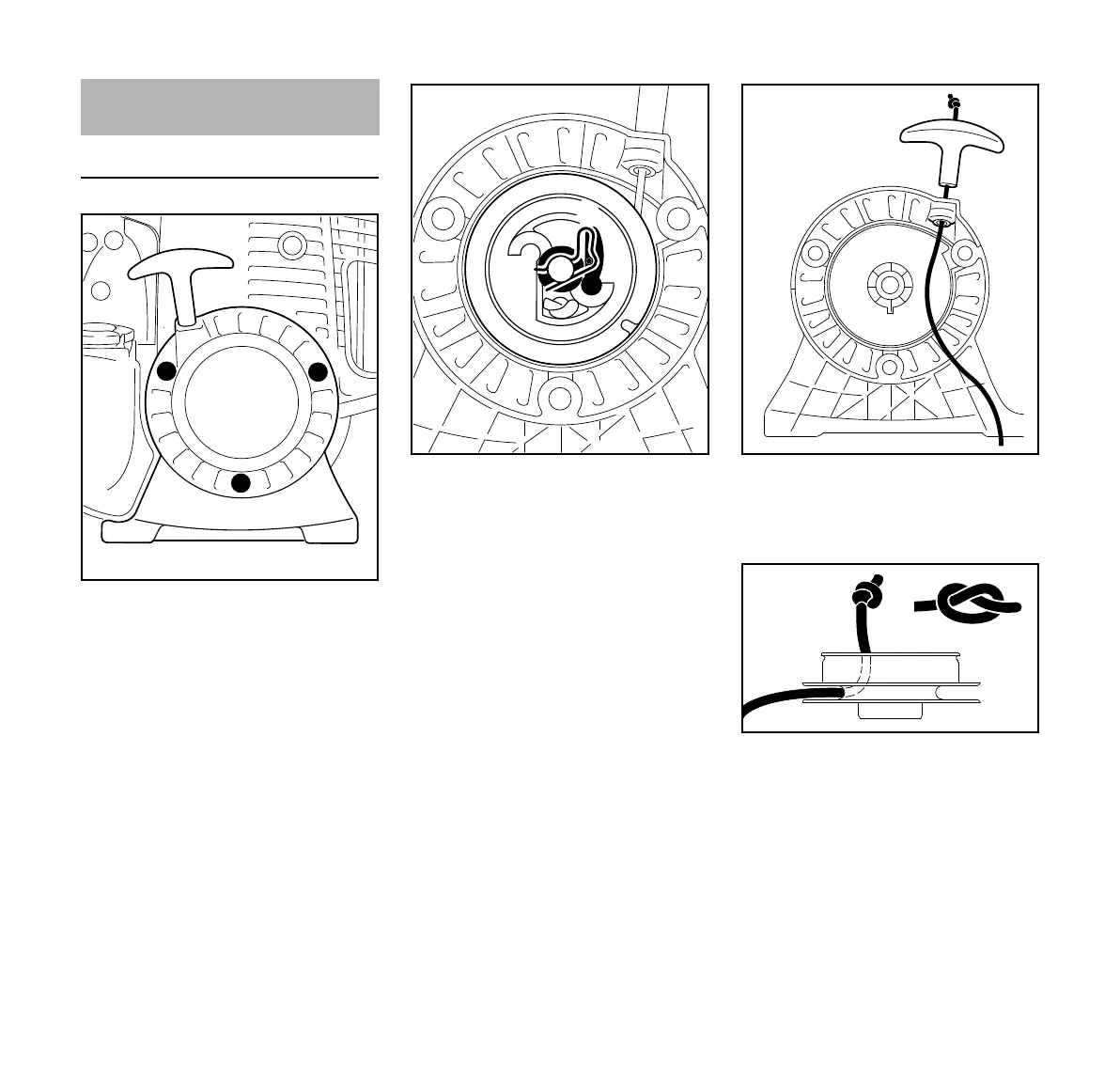

Replacing the Starter Rope
N Push the slide control in direction of
arrow h – to STOP-0.
N Take out the screws (1).
N Remove the starter cover (2) from
the housing.
N Ease the spring clip (3) off the
starter post.
N Remove the rope rotor with
washer (4) and pawl (5).
N Remove the remaining rope from
the rotor and starter grip.
N Tie a simple overhand knot in the
new rope and then thread it through
the top of the grip and the rope
bushing (6).
N Thread the rope through the rotor
and secure it with a simple
overhand knot.
N Coat the rope rotor bearing bore
with non-resinous oil.
N Slip the rotor over the starter post –
turn it back and forth to engage the
anchor loop of the rewind spring.
Replacing the Starter Rope
and Rewind Spring
1
1
249BA061 KN
2
1
4
3
5
249BA013 KN
249BA014 KN
6
249BA015 KN
