FS 100, FS 100 R
English
15

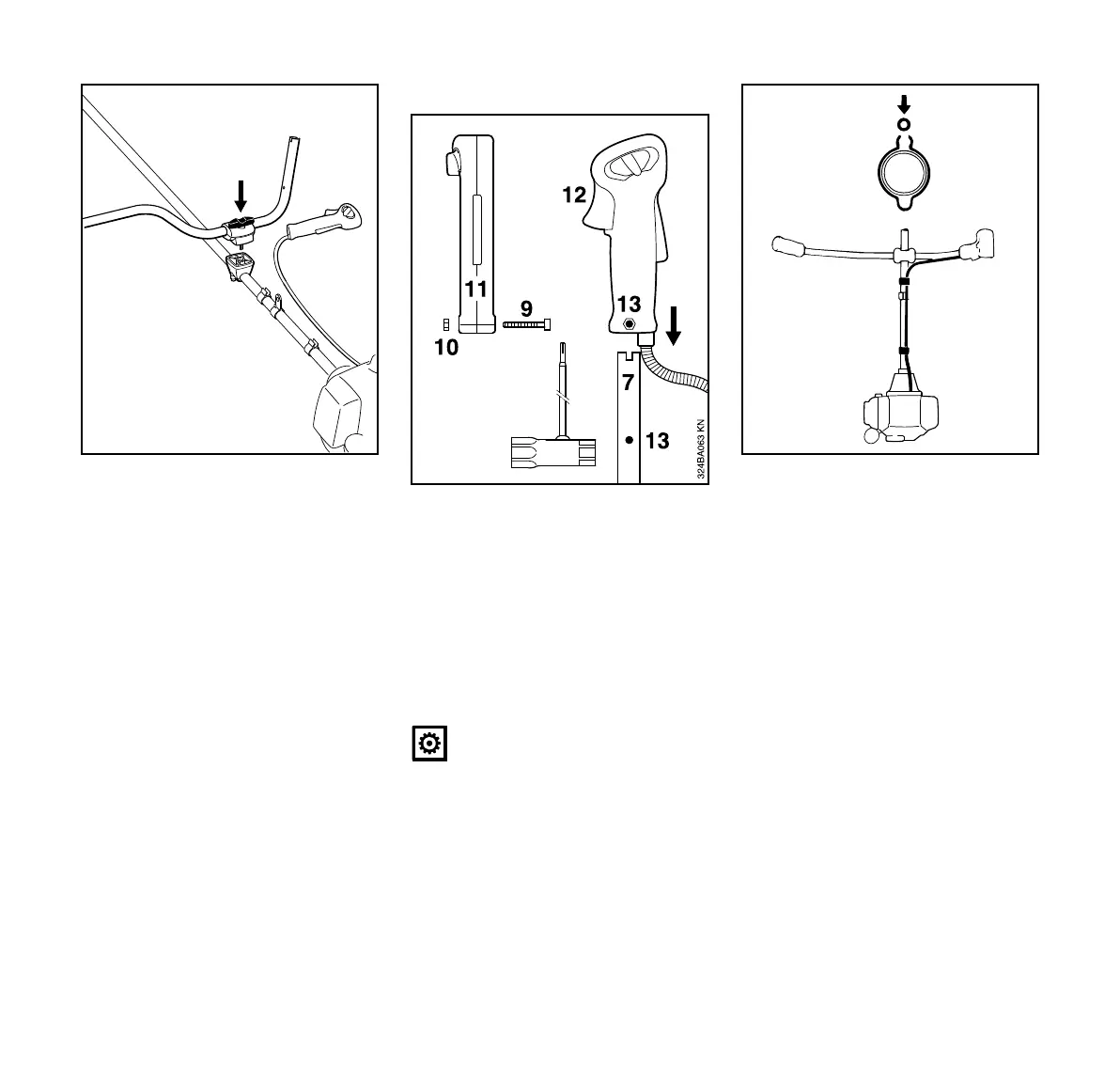

N Place the secured assembly on the
handle support (8) with the wing
screw at the side nearest the
engine.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Line up the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the wing screw firmly.
Mounting the control handle
N Take out the screw (9) – the nut (10)
remains in the control handle (11).
N Push the control handle onto the
handlebar (7) until the holes (13)
line up – the throttle trigger (12)
must point towards the gearbox.
N Insert the screw (9) and tighten it
down firmly.
Fitting the throttle cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
N Push the throttle cable (14) into the
retainers (15).
Adjusting the throttle cable
N Check adjustment of throttle cable –
see chapter on "Adjusting the
Throttle Cable".
