Stihl FS 100 Instruction Manual

FS 100, FS 100 R
English
21

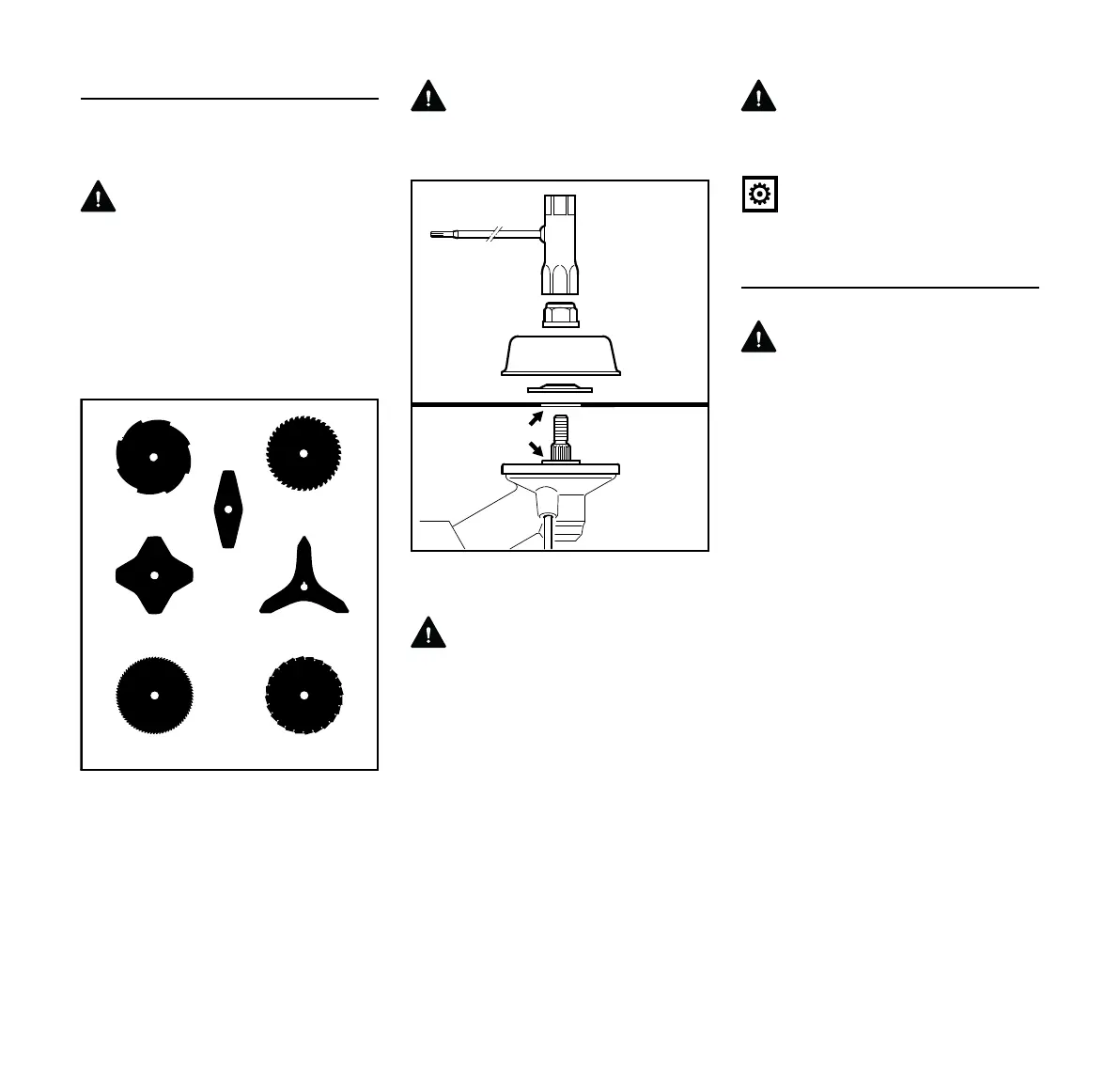

Mounting Metal Cutting Attachments
Keep the leaflet and packaging of the
metal cutting attachment in a safe place.
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Mount only one metal cutting
attachment.
Check direction of rotation of cutting
attachment
Cutting attachments 2, 4 and 5 may be
mounted either way round – they must
be turned over regularly to help avoid
one-sided wear.
The cutting edges of cutting
attachments 1, 3, 6 and 7 must point
clockwise.
WARNING
Direction of rotation is indicated by an
arrow on the inside of the deflector.
N Place the cutting attachment (8) on
the thrust plate (9).
WARNING
Collar (see arrow) must engage the
cutting attachment's mounting hole.
Securing the cutting attachment
N Fit the thrust washer (10) – convex
side must face up.
N Fit the rider plate (11).
N Block the shaft (12).
N Use the combination wrench (14) to
screw the mounting nut (13) on to
the output shaft counterclockwise
and tighten it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Metal Cutting Attachment
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Remove cutting attachment and its
mounting hardware from the
gearbox – but do not remove the
thrust plate (9).
3
1
4
6
7
5
681BA042 KN
2
10
8
9
11
12
13
14
681BA161 KN
