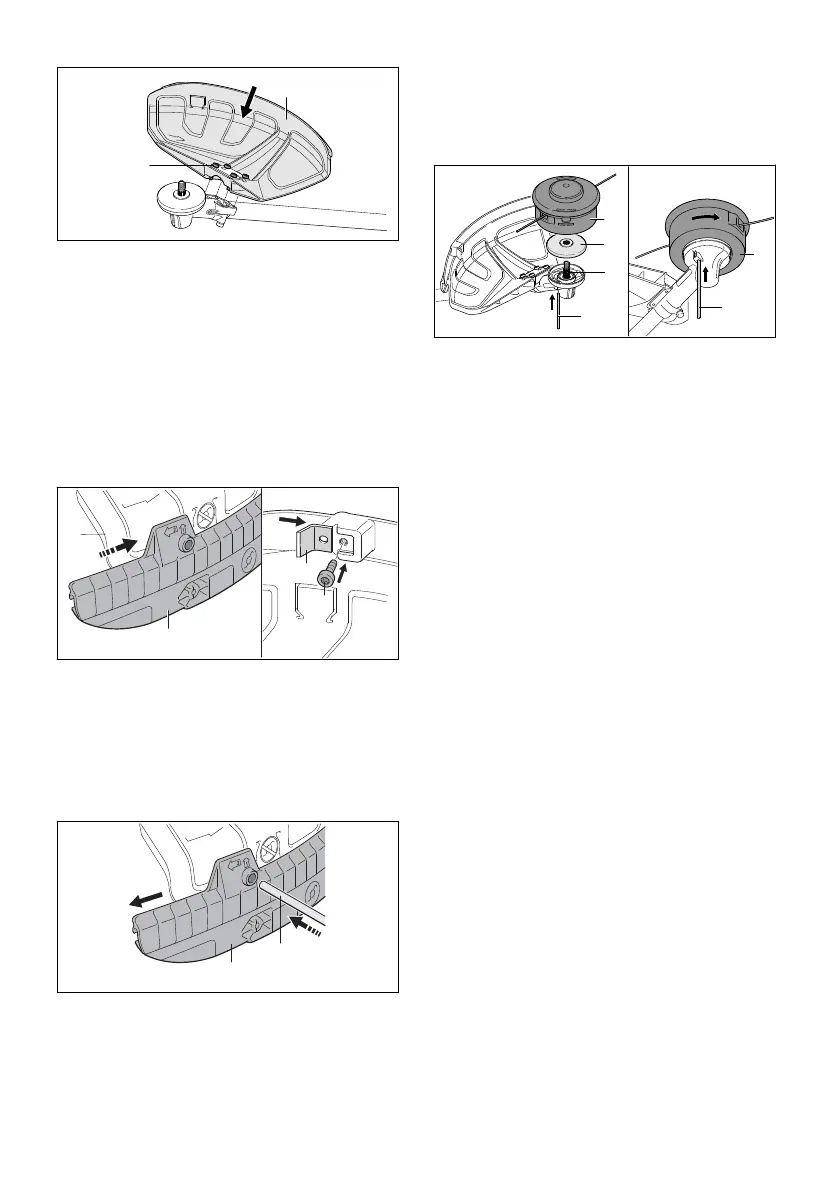

► Push the deflector (1) into the guides on the
gear housing up to the limit stop.
► Insert and tighten the screws (2).
6.4.2 Removing the Deflector
► Shut off the engine.
► Take out screws.
► Remove guard.
6.5 Fitting and Removing the Skirt
6.5.1 Fitting the Skirt
► Shut off the engine.
► Slide the guide slot in the skirt (2) onto the
deflector (1) – it must snap into position.
► Push the line limiting blade (3) into the slot in
the skirt (2).
► Insert and tighten down the screw (4) firmly.
6.5.2 Removing the Skirt
► Shut off the engine.
► Insert stop pin (2) into the hole in the skirt (1).
► Use the stop pin (2) to slide the skirt (1) off the
deflector.
The line limiting blade (1) can be left on the skirt.
6.6 Mounting and Removing the
Mowing Head
6.6.1 Mounting the Mowing Head
► Shut off the engine.
► Place the thrust plate (2) on the shaft (3) so
that its smaller diameter faces up.
► Fit the mowing head (1) on the shaft (3) and
turn it counterclockwise by hand.
► Insert the stop pin (4) in the bore up to the limit
stop and hold it depressed.
► Turn the mowing head (1) counterclockwise
until the stop pin (4) engages in position.
The shaft (3) is now blocked.
► Tighten down the mowing head (1) firmly by
hand.
► Remove the stop pin (4).
6.6.2 Removing the Mowing Head
► Shut off the engine.
► Insert the stop pin in the bore as far as stop
and hold it depressed.
► Rotate the mowing head until the stop pin
engages in position.
The shaft is now blocked.
► Unscrew the mowing head clockwise.
► Remove the thrust plate.
► Remove stop pin.
6.7 Removing and Installing Metal
Cutting Attachment
6.7.1 Mounting the Metal Cutting Attach‐
ment
► Shut off the engine.
English 6 Assembling the Trimmer
12 0458-891-0101-A
