Stihl FS 260 R User Manual

FS 240, FS 240 C, FS 240 R, FS 240 RC, FS 260 R, FS 260 RC
English
15

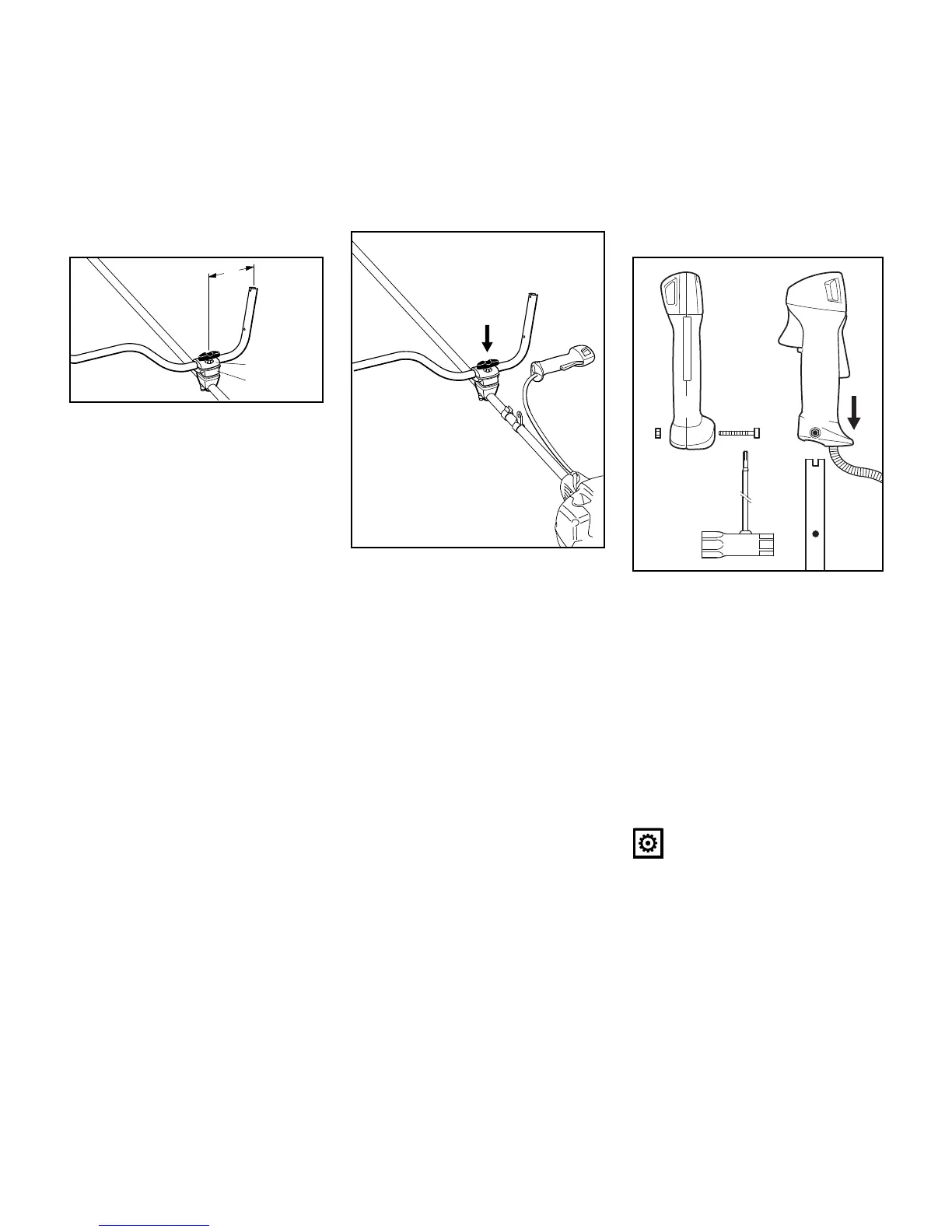

Securing the handlebar
N Place the handlebar (7) in the lower
clamp (1) so that distance A is no
more than 15 cm (6 in).
N Place the upper clamp in position
and hold both clamp moldings
together.
N Push the wing screw (3) through the
two clamps as far as stop – hold all
parts together and secure them.
N Place the secured assembly on the
handle support (8) with the wing
screw at the side nearest the
engine.
N Push the wing screw (3) into the
handle support as far as stop and
then screw it down – but do not
finally tighten yet.
N Line up the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the wing screw firmly.
Mounting the control handle
N Take out the screw (9) – remove the
nut (10) from the control
handle (11).
N Push the control handle onto the
end of the handlebar (7) until the
holes (13) line up – the throttle
trigger (12) must point towards the
gearhead.
N Fit the nut (10) in the control
handle (11), insert the screw (9)
and tighten it down firmly.
Fitting the throttle cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
A
3
7
002BA381 KN
1
2
3
002BA351 KN
8
13
9
11
12
7
13
002BA438 BL
10

Stihl FS 260 R Specifications

General

Brand	Stihl
Model	FS 260 R
Category	Trimmer
Language	English
