Stihl FS 260 R User Manual

FS 240, FS 240 C, FS 240 R, FS 240 RC, FS 260 R, FS 260 RC
English
14
Mounting Bike Handle with Swiveling
Handle Support
The machine is supplied with the
swiveling handle support already
mounted on the shaft. To mount the
handlebar it is necessary to remove the
clamp moldings.

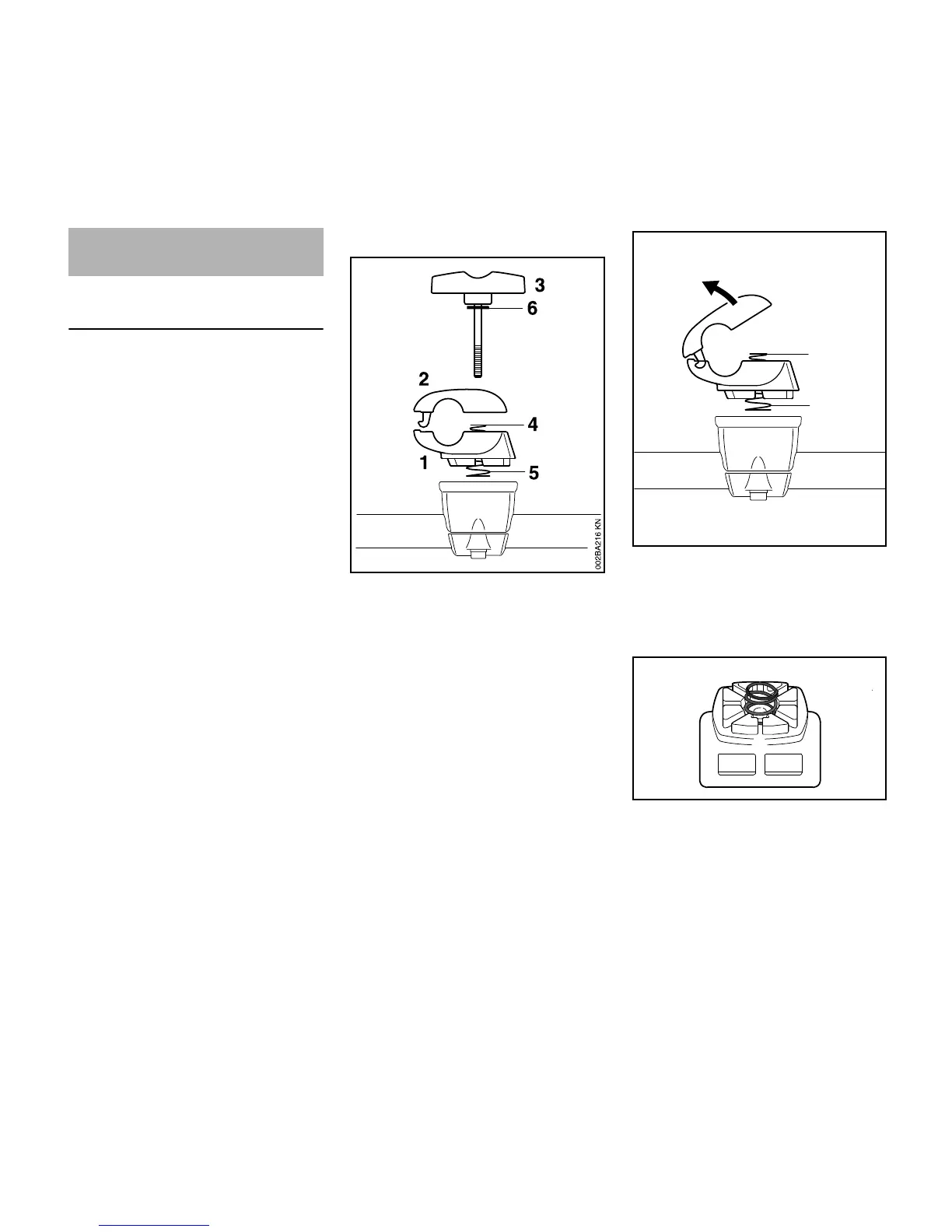

Removing the clamp moldings
N Hold the lower clamp (1) and upper
clamp (2) firmly together.
N Release the wing screw (3) – the
clamps are loose once the wing
screw has been released. They are
pushed apart by the two
springs (4 and 5).
N Pull out the wing screw – the
washer (6) remains on the wing
screw.
N Hold the lower clamp (1) steady and
remove the upper clamp (2) –
separate the parts so that the
springs (4, 5) remain in position in
the lower clamp.
If the spring (5) has slipped out of the
lower clamp (1):
N Fit the spring in the clamp's annular
groove as shown.
Mounting the Bike Handle
2
1
4
5
002BA415 KN
1
5
002BA416 KN
