101FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
Versions with M-Tronic

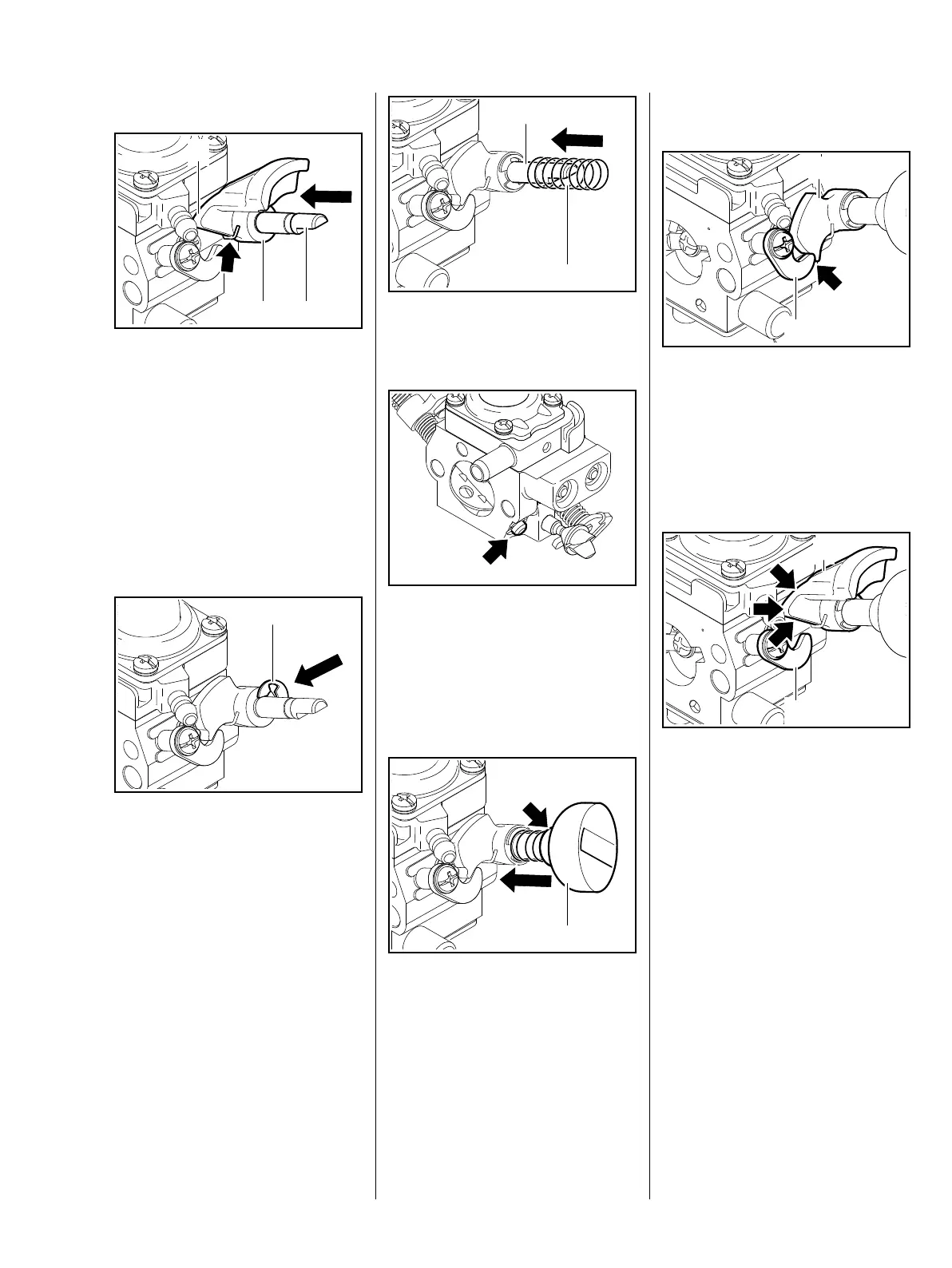

: Orient the lever (1) so that the flat
surface aligns with the choke
shaft (2) and the cam (3) faces
the throttle shaft lever
: Slide lever (1) onto choke
shaft (2), turn torsion spring
counterclockwise and hook it into
lever (arrow)
All versions
– Slide on the lever as far as it will
go – the groove for the circlip
must be visible
: Push circlip (1) into place
5904RA371 TG
1 2
3
5904RA372 TG
1
: Push the spring (1) onto the
choke shaft (2)
When pressing on the choke knob,
the choke shaft must be held in
place.
: Place the opposite end (arrow) of
the choke shaft on a solid surface
: Press the choke knob (1) firmly
onto the choke shaft until it snaps
into place – spring must rest
against the base (arrow) of the
black lever
5904RA373 TG
1
2
5904RA392 TG
5904RA374 TG
1
Checking operation without M-
Tronic
In the "warm start" position,
lever (1) must engage the
notch (arrow) of lever (2) and align
with the contact surface of the cam.
Checking operation with M-
Tronic
Lever (1) must align with the contact
surface (arrows) on the cam of
lever (2).
– Install the carburetor, b 11.3
– Install filter housing and
grommet, b 11.2
5904RA363 TG
2
1
5904RA364 TG
2
1
