Stihl FS 360 Service Manual

111FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

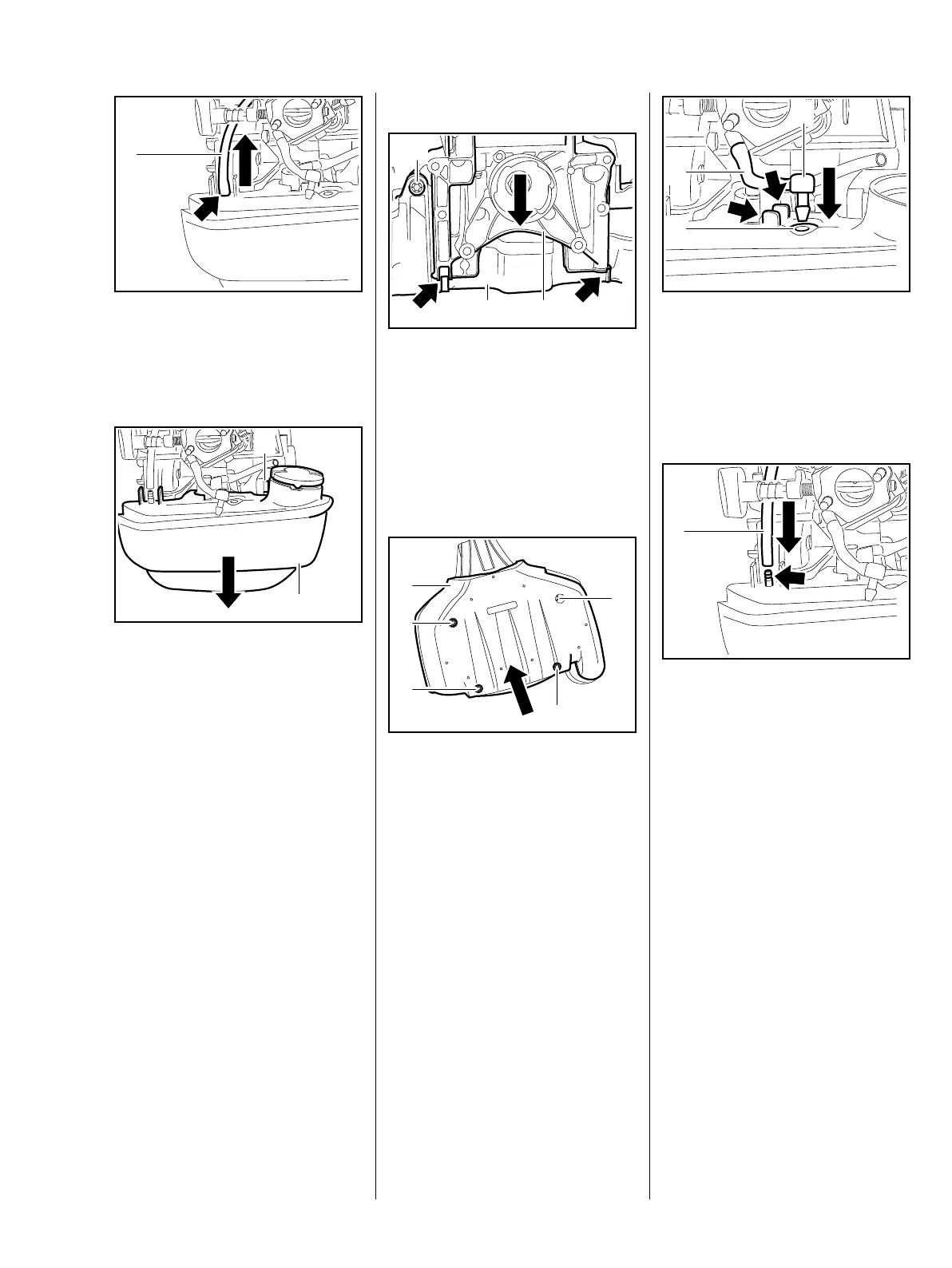

: Pull off the fuel return line (1) at
the connector (arrow)
Always use a new fuel return line.
: Unscrew screw (1) and remove
fuel tank (2) downward
Only reuse those parts of the old
fuel tank which are not supplied with
the new fuel tank – see spare parts
list.
– Check tank vent, replace if
necessary
1
5904RA457 TG
1
5904RA458 TG
2
Installation
: Insert the engine unit (1) in the
fuel tank (2) so that the
domes (arrows) on the starter
and ignition side engage the
recesses of the fuel tank
: Screw in the screw (3) and
tighten
: Fit protective hip plate (2) so that
the bulge is at the tank filler port
: Insert and tighten down the
screws (1)
1
3
5904RA459 TG
2
1
1
1
5904RA460 TG
1
2
: Push connector (1) into the fuel
suction hose (2) so that the fuel
hose (3) is between the
ribs (arrows)
– Connector must be pushed all
the way into the fuel suction hose
: Push the new fuel return line (1)
completely onto the
connector (arrow)
– Reassemble remaining parts in
reverse order
3
1
5904RA455 TG
2
1
5904RA438 TG
