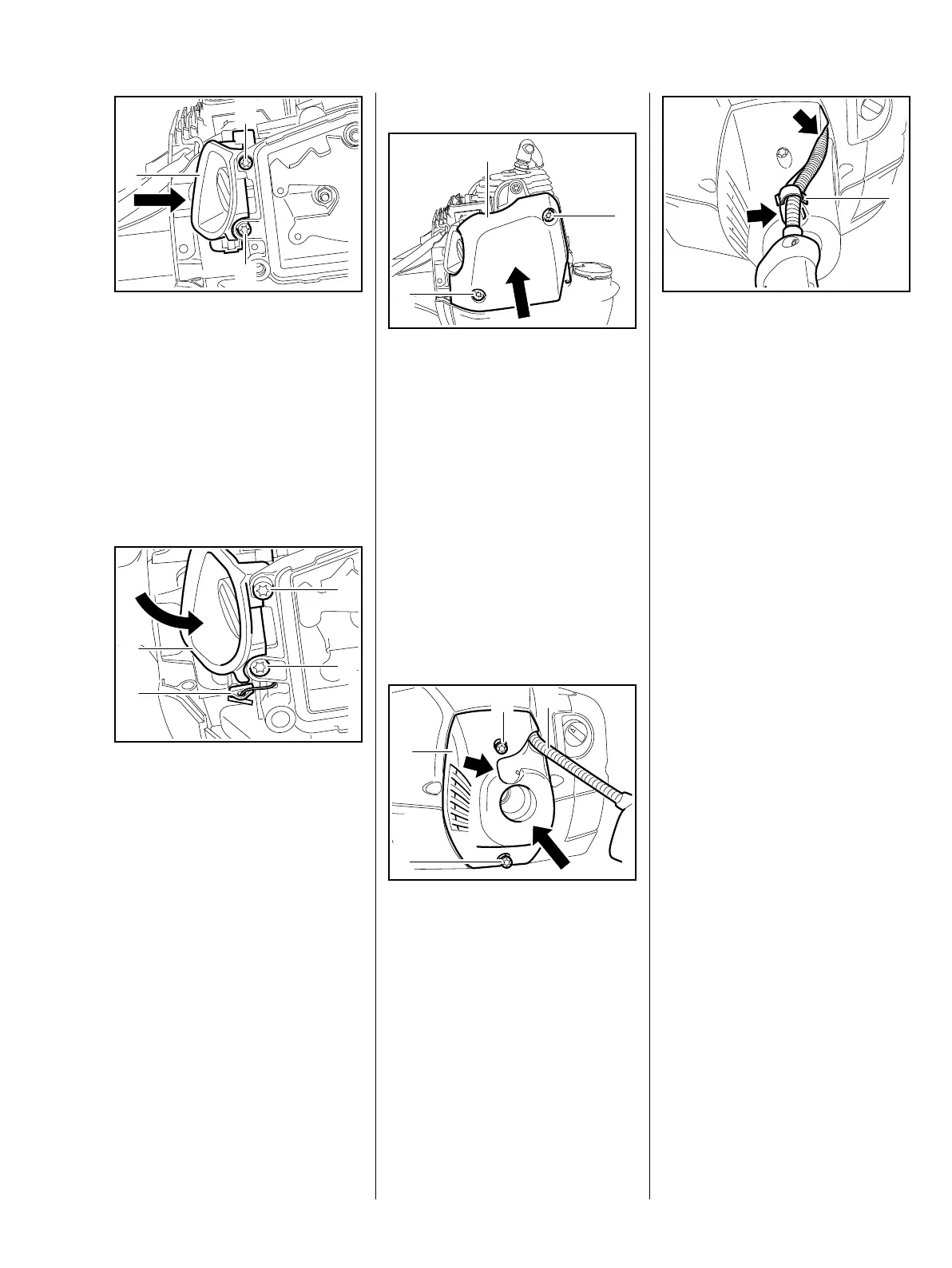

Stihl FS 360 Service Manual

21FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
: Position bushing (1)
: Insert and tighten down the
screws (2)
Versions with M-Tronic
– Attach cable holder and short
circuit wire to engine, b 6.6.3
: Position bushing (1)
: Insert and tighten down the
screws (2)
: Insert plug (3)
5904RA011 TG
1
2
2
3
2
5904RA323 TG
2
1
All versions
: Position filter cover (1) with
screws
: Insert and tighten down the
screws (2)
– Attach protective hip plate,
b 11.9.3
– Refit the shroud, b 5.4
– Install starter, b 8.2
Versions with 1-point
antivibration system
: Orient cover (1) so that the guide
groove (arrow) faces the
protective tube (2)
: Position cover (1)
: Insert and tighten down the
screws (3)
5904RA012 TG
1
2
2
5904RA013 TG
1
3
3
2
: Insert protective tube with control
handle in the guide
groove (arrows)
: Position cable holder (1) and
slide it into the slits on the side
– Install drive tube assembly,
1-point antivibration system,
b 12.1
Versions with 4-point
antivibration system
– Press on rubber buffers, b 9.2
– Install drive tube assembly,
4-point antivibration system,
b 12.2
5904RA014 TG
1
