24 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

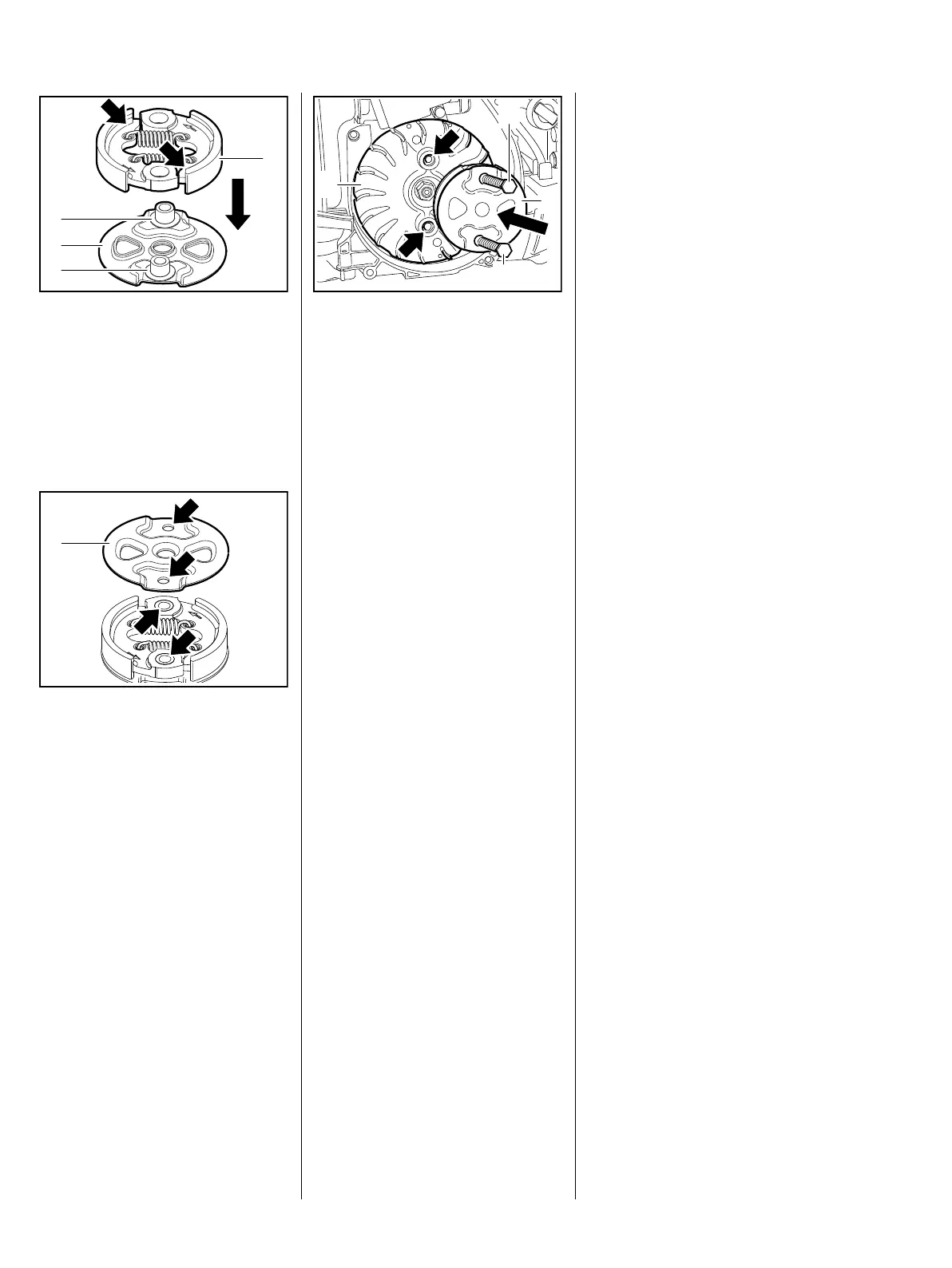

: Position washers (1) on the pegs
: Orient clutch (2) so that the
markings (arrows) are visible
: Slide clutch (2) onto the pegs on
the lower cover washer (3)
: Position upper cover washer (1)
so that the holes (arrows) match
SM
SM
5904RA026 TG
1
2
1
3
SM
SM
5904RA027 TG
1
: Fit coupling (1) complete with
cover washers in the threaded
holes (arrows) of the flywheel (2)
: Insert and tighten down the
screws (3) SW 10
– Pull the locking strip out of the
cylinder
– Install clutch housing, b 4.1
– Reassemble remaining parts in
reverse order
5904RA028 TG
1
2
3
3
