86 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
Installation

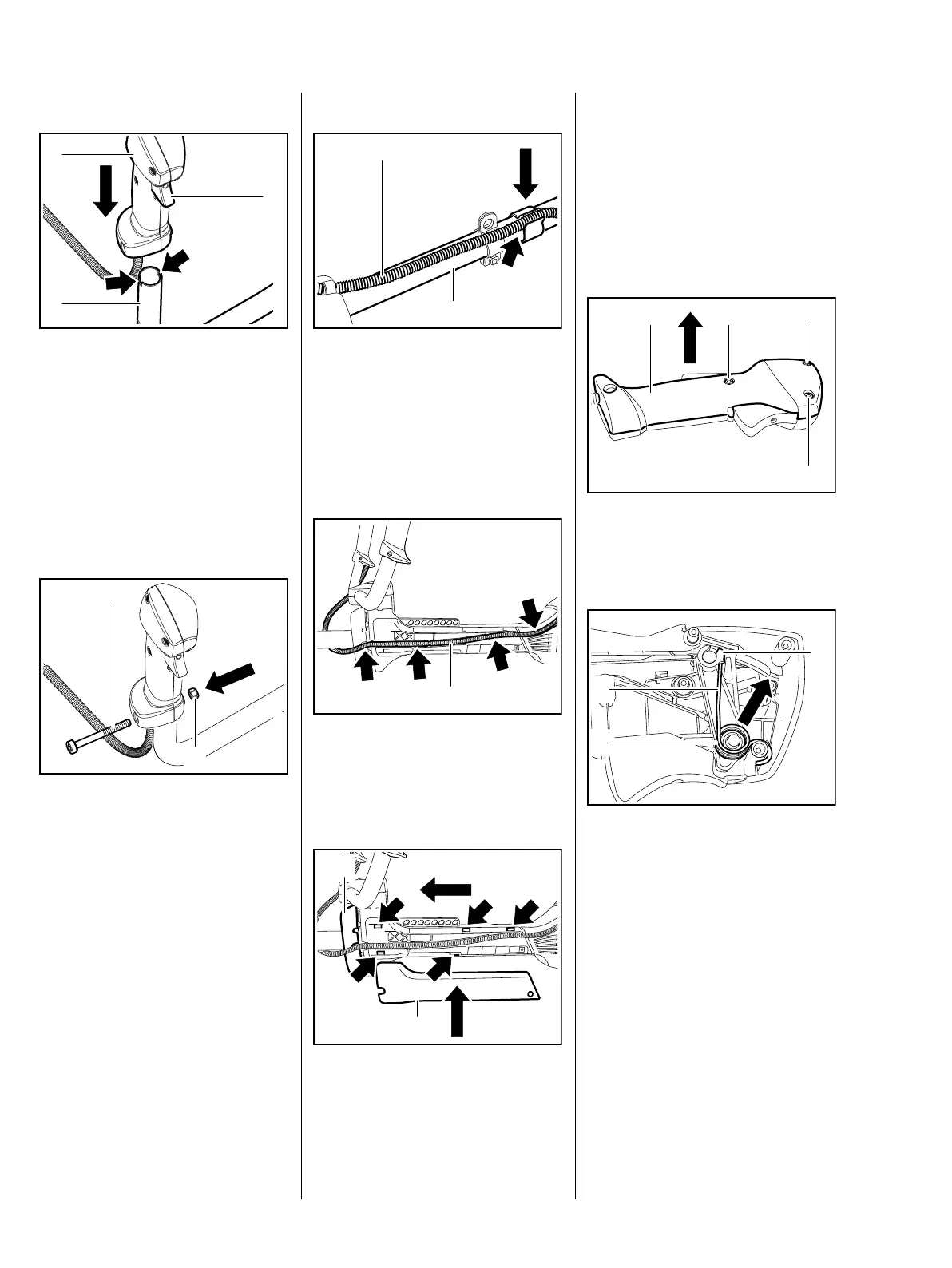

: Orient control handle for bike
handle (1) so that the throttle
trigger (2) faces toward the
cutting attachment
: Push control handle for bike
handle (1) onto handlebar (3)
and twist it gently back and forth
until it is aligned with the
openings (arrows)
: Push bolt (1) through control
handle for bike handle and
handlebar
: Push new hexagon nut (2) in the
mount on the opposite side, then
screw in the bolt and tighten it
The control handle must be
clamped firmly onto the handlebar
and must be immovable.
5904RA302 TG
1
3
2
5904RA303 TG
1
2
1-point antivibration system
: Press protective tube (1) into the
guides (arrow) so that the
protective tube (1) lies against
the drive tube assembly (2) and
does not form any kinks
4-point antivibration system
: Press protective tube (1) into the
guide (arrows) as far as it will go
– protective tube must lie tight
against the machine
: Press fairing (1) with the hooks in
the openings (arrows) and slide
toward support (2)
5904RA304 TG
1
2
5904RA257 TG
1
5904RA258 TG
1
2
– Insert and tighten down the screw
10.2.2 Throttle trigger / throttle
trigger interlock
– Remove control handle for bike
handle, b 10.2
: Unscrew screws (1) and carefully
remove handle molding (2) –
trigger interlock can pop out
: Lift and relieve tension on the end
of the torsion spring (1) at the
stop (2)
: Remove torsion spring (3)
5904RA305 TG
11
1
2
5904RA306 TG
2
1
3
