Stihl FS 360 Service Manual

92 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

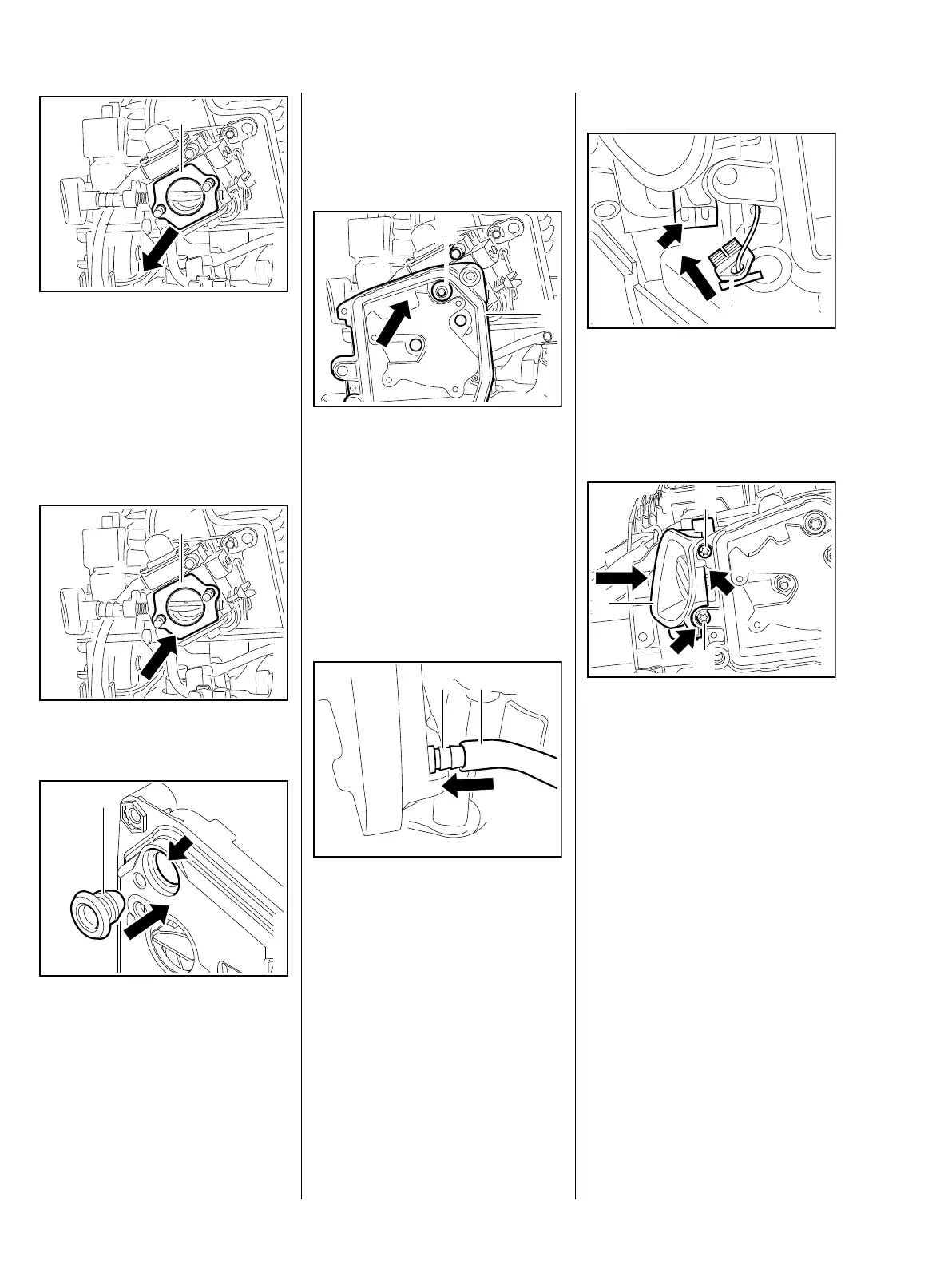

: Remove gasket (1) – always use
a new gasket
– Check mating surfaces on
carburetor and filter housing,
clean if necessary, b 14
Installation
: Push on new gasket (1)
– To simplify installation, coat the
outside of the grommet with
STIHL press fluid, b 14
: Orient grommet (1) so that the
cone faces the hole
5904RA398 TG
1
5904RA399 TG
1
5904RA400 TG
1
: Press grommet (1) into
hole (arrow) on the back of the air
filter housing until it encloses the
hole completely
– To simplify installation, coat the
inside of the grommet with STIHL
press fluid, b 14
: Slide filter housing (1) onto the
studs so that the support of the
carburetor engages the
grommet (2)
– Fit nuts and screw them tight.
– Use STIHL press fluid to simplify
assembly, b 14
: Push the new tank vent hose (1)
completely onto the
connector (2)
5904RA401 TG
1
2
5904RA402 TG
12
Versions with M-Tronic
: Press plug (1) into the diagnostic
connector (arrow) as far as it will
go
All versions
: Push the grommet (1) into the
mounts (arrows)
: Insert and tighten down the
screws (2)
– Reassemble remaining parts in
reverse order
5904RA403 TG
1
5904RA404 TG
1
2
2
