FS 45, FS 46
English
16

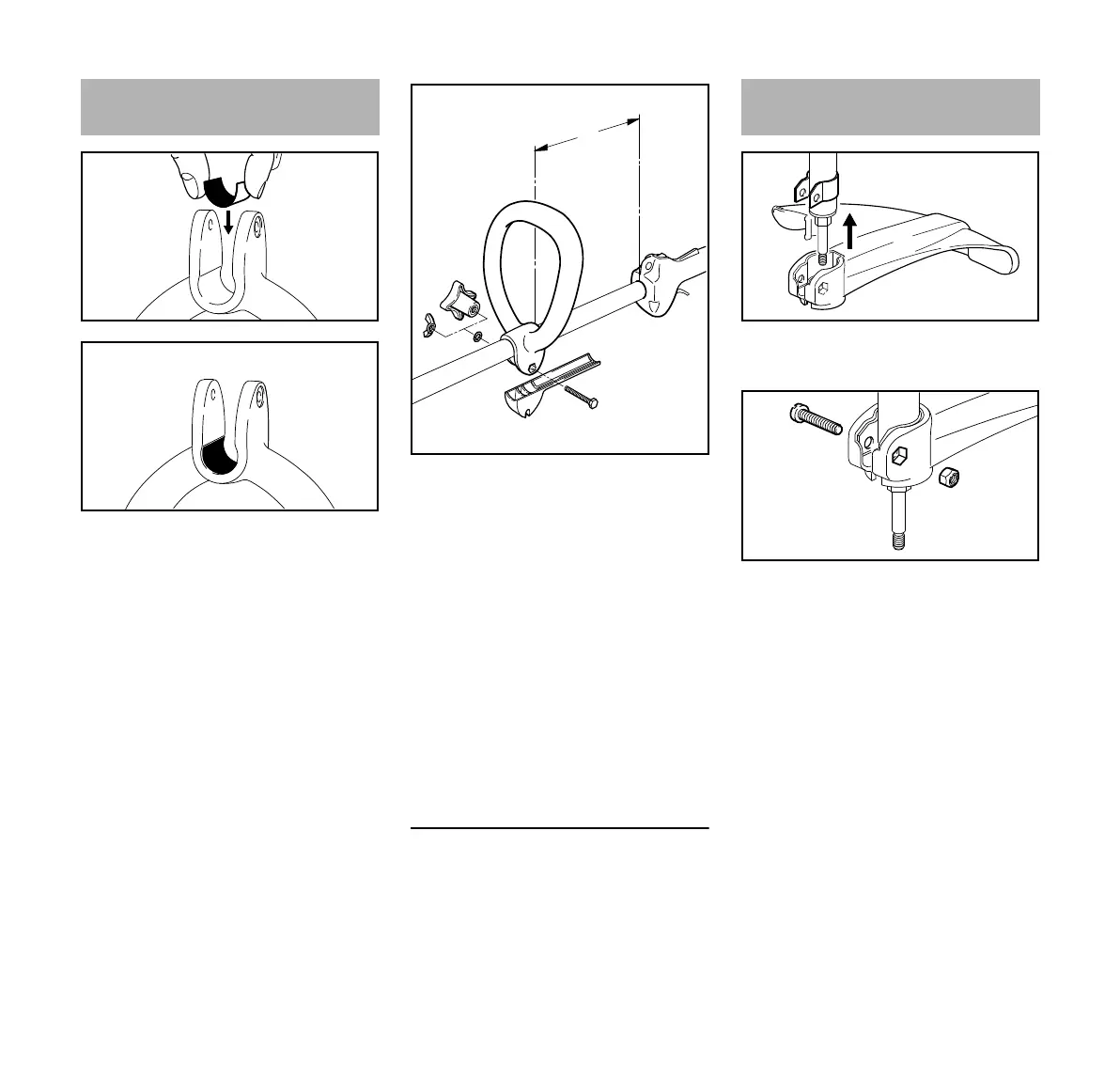

N Place the friction liner in the loop
handle.
N Fit the loop handle (1) on the drive
tube at distance (A) of about 20 cm
(8 in.) from the control handle (2).
N Slide the spacer (3) – if supplied –
into the loop handle as far as
possible.
N Insert the screw (4) through the loop
handle and the spacer until the
screw head locates in the loop
handle's hexagon recess.
N Fit the washer (5).
N Fit the wingnut (6) and tighten it
down firmly.
Adjusting loop handle to most
comfortable position
N Loosen the wingnut (6).
N Move the loop handle (1) along the
drive tube as required.
N Tighten down the wingnut (6) firmly.
N Push the deflector (1) over the
clamp (2) as far as stop.
N Insert the nut (3) in the hex recess in
the deflector – make sure the holes
line up.
N Insert the screw (4) and tighten it
down firmly.
Mounting the Loop Handle
223BA017 KN
223BA018 KN
4
6
5
232BA069 KN
1
2
3
A
Mounting the Deflector
1
2
232BA066 KN
4
232BA067 KN
3

Other manuals for Stihl FS 45

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stihl FS 45 and is the answer not in the manual?

Stihl FS 45 Specifications

General IconGeneral
Engine Displacement27.2 cc
Power Output0.75 kW
Cutting Diameter380 mm
Engine Type2-stroke
Shaft TypeCurved
Fuel Capacity0.33 liters
Fuel Tank Capacity0.33 liters
Cutting Width380 mm
Engine Power1.0 bhp
Vibration Levels Left/Right Handle5.5/5.5 m/s²
