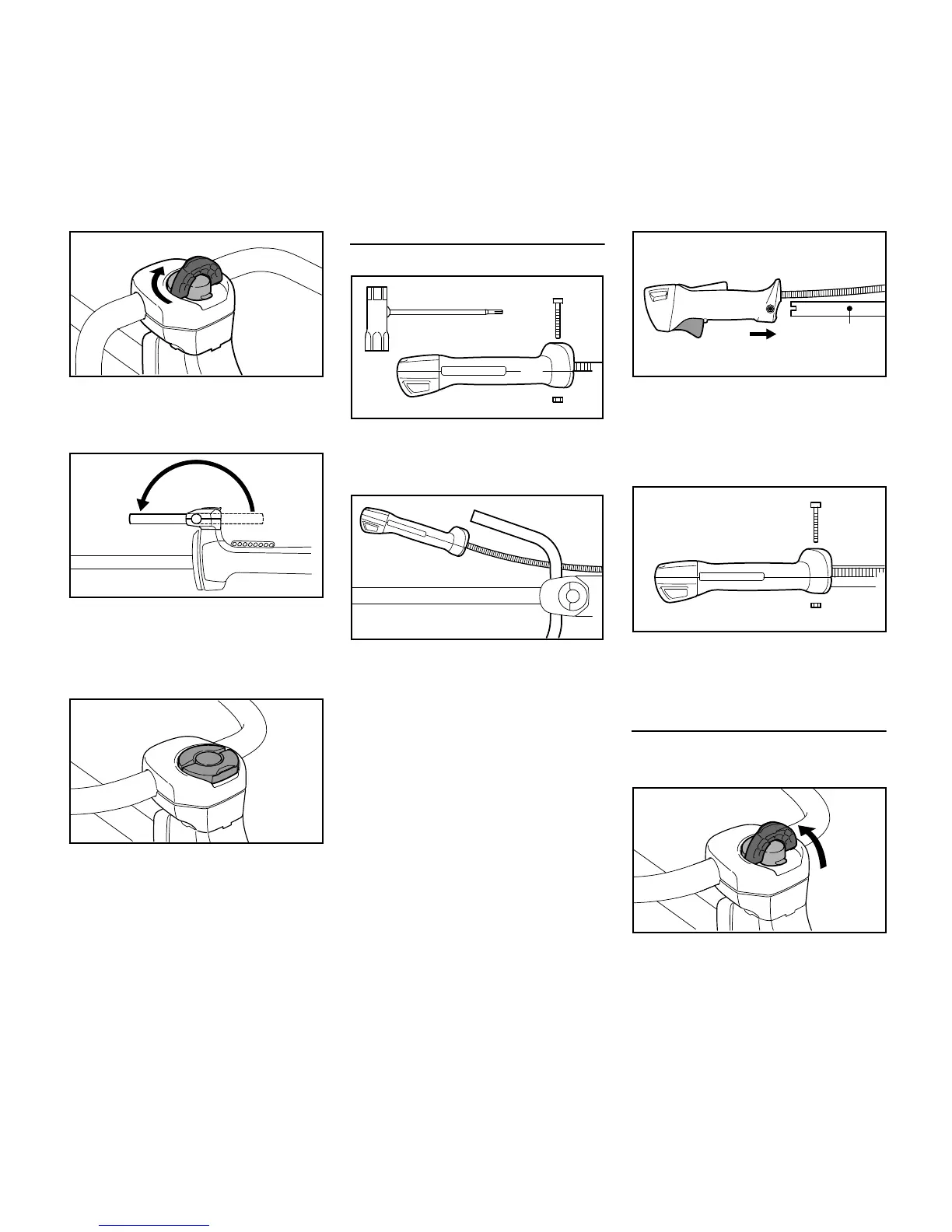

N Rotate wing screw clockwise until
the lower clamp molding (6) butts
against the handle support (7).
N Swing the handebar (2) forwards
through 180°.
N Only tighten the wing screw
moderately.
N Fold the grip of the wing screw down
so that it is flush.
Mounting the Control Handle
N Take out the screw (11) and remove
the nut (12) from the control handle
(1).
N Hold the control handle in front of
the right-hand end of the handlebar
so that the throttle cable (13) is on
the inboard side of the handlebar
(2).
N Push the control handle (1) in this
position onto the end of the
handlebar (2) until the holes (15)
line up – throttle trigger (14) facing
down.
N Fit the nut (12) in the control handle,
insert the screw (11) and tighten it
down firmly.
Adjusting the Handlebar
Opening the wing screw
N Raise the grip of the wing screw to
the upright position.
