FS 510 C, FS 560 C
English
17

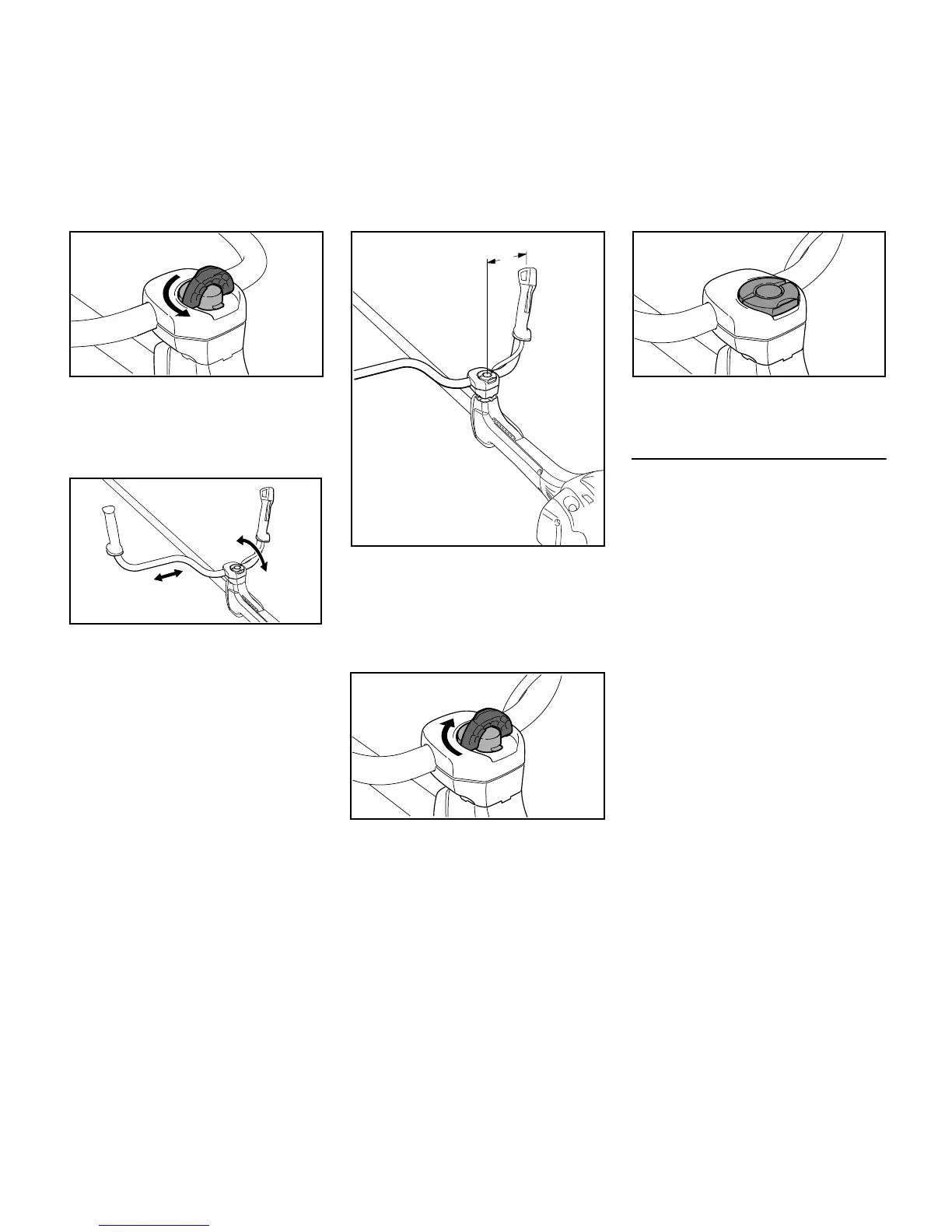

N Turn the wing screw
counterclockwise until the handle
support can be moved.
Lining up the handlebar
N Move the handlebar to the required
position.
N Position the handlebar (2) so that
distance A is about 7 in (17 cm).
Do not clamp the curved part of the
handlebar.
Closing the wing screw
N Rotate the wing screw clockwise
until it becomes difficult to turn.
N Tighten down the wing screw firmly.
N Fold the grip of the wing screw down
so that it is flush.
Checking the Throttle Cable
N After mounting the control handle,
check the throttle cable – see
chapter on "Adjusting the Throttle
Cable".
