FS 510 C, FS 560 C
English
20

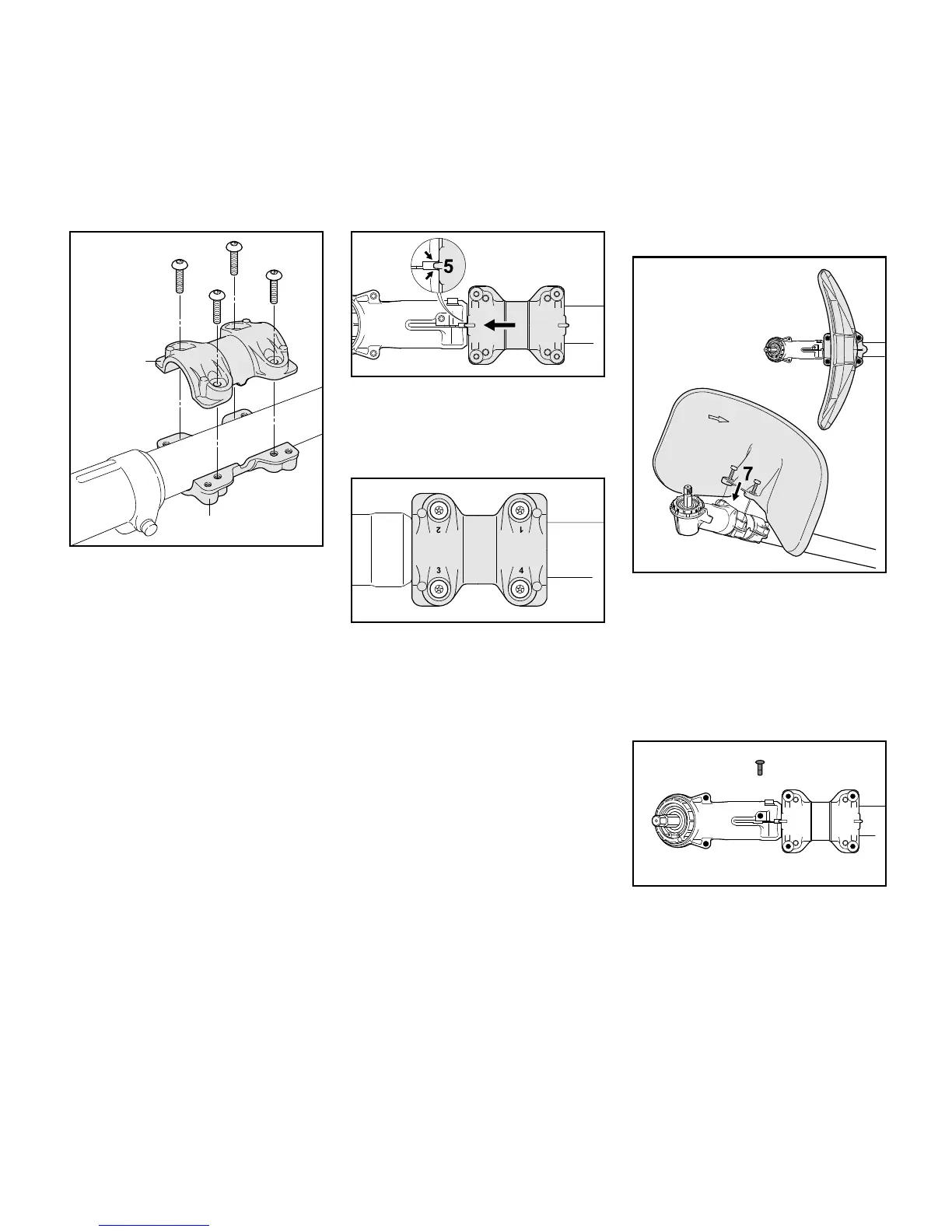

N Position the lower clamp (1) against
the underside of the drive tube next
to the gearbox.
N Position the upper clamp (4) on the
drive tube so that the lug (5)
engages the notch (3).
N Hold both clamps steady in this
position.
N Insert a screw into the hole marked
1 on the upper clamp (4) and wind it
only a few turns into the lower clamp
(1).
N Insert a screw in each of the holes
marked 2, 3 and 4 and wind them
only a few turns into the lower
clamp.
N Slide the clamps up against the
gearbox and engage the lug (5) in
the gearbox gap (arrows).
N Hold both clamps in this position.
N Screw home the screws in holes 1
and 2 as far as stop.
N Tighten down the screws in holes 1
and 2 to a torque of 8 Nm.
N Screw home the screws in holes 3
and 4 in that order and tighten them
down to a torque of 8 Nm.
– Mounting the shredder deflector
N Position the shredder deflector on
the lower clamp with its concave
side facing the gearbox (6).
N Insert the screws (7) and tighten
them down firmly.
– Plugs
Plugs (9) are available as special
accessories to help prevent dirt getting
into the unused tapped holes for the
deflector in the gearbox (6) and clamps
(8).
