FS 510 C, FS 560 C
English
26
Securing the cutting attachment
N Fit the 70 mm (2.8 in) diameter
thrust washer (4) – convex side
must face up.
N Fit the guard ring (5) for brush
knives – opening must face up.
N Block the shaft.
N Screw on the nut (6)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Cutting Attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
Mounting Shredder Blade 320-2
N Check that the deflector on the
machine is approved for shredder
blades – if not, perform the next two
steps.
N Remove grass shield with thrust
plate – if fitted.
N Remove the non-approved
deflector.
N Mount deflector for shredder blade.
N Fit the 65 mm (2.6 in) diameter
thrust plate.
N Seal the unused tapped holes with
plugs.

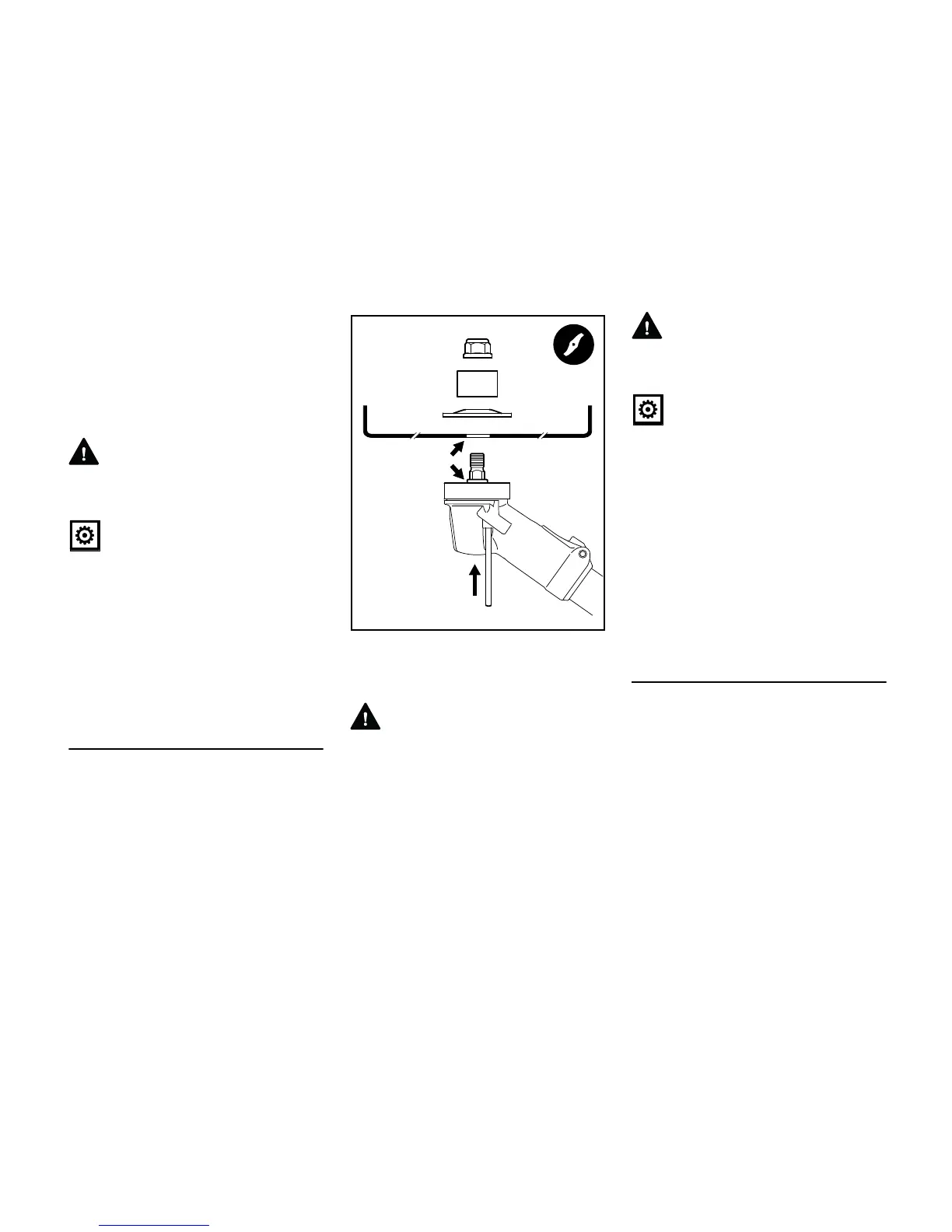

N Place the shredder blade (1) in
position – the cutting edges must
point upwards.
WARNING
Collar (a) must locate in the cutting
attachment's mounting hole (b).
Securing the cutting attachment
N Fit the 70 mm (2.8 in) diameter
thrust washer (2) – convex side
must face up.
N Fit the shredder blade guard ring (3)
– opening must face up.
N Block the shaft.
N Screw on the nut (4)
counterclockwise and tighten it
down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Cutting Attachment
N Block the shaft.
N Unscrew the mounting nut
clockwise.
N Pull the cutting attachment with its
mounting hardware off the gearbox.
N If you intend to use a different
cutting attachment – remove the
shredder deflector.
Mounting circular saw blades 225
N Check that the stop for circular saw
blades is already mounted to the
machine – if not, perform the next
two steps.
N Remove grass shield – if fitted.
N Remove deflector – if fitted.
N Mount limit stop for circular saw
blades.
N Fit the 65 mm (2.6 in) diameter
thrust plate.
N Seal the unused tapped holes with
plugs.
002BA470 KN
3
4
2
1
b
a
