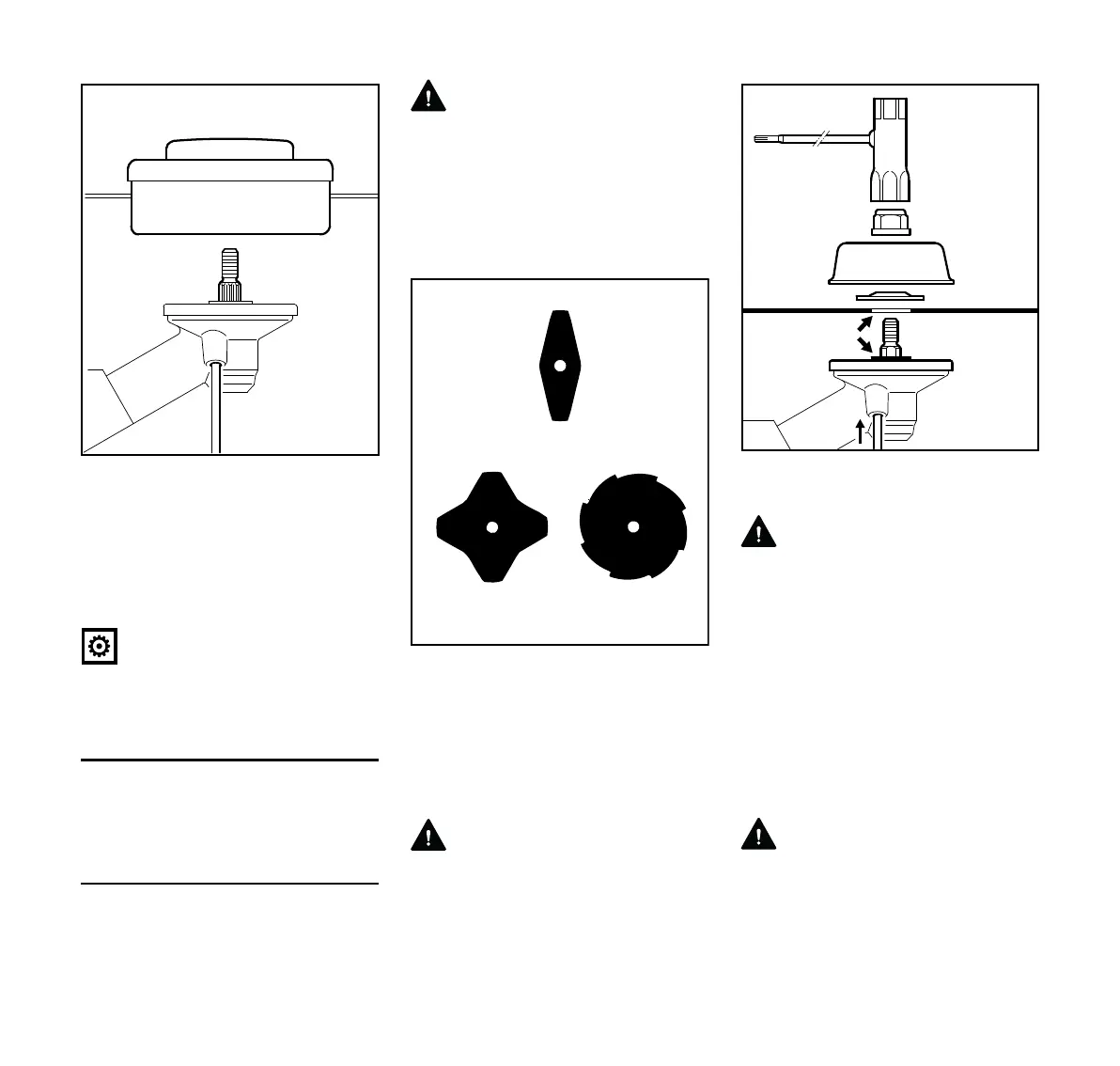

N Fit the thrust plate
N Turn the mowing head
anticlockwise on the shaft (1) as far
as it will go
N Retain the shaft
N Tighten the mowing head
NOTICE
Remove the tool that was used to block
the shaft.
Removing the Mowing Head
N Retain the shaft
N Turn the mowing head clockwise
Mounting Metal Cutting Attachment
Keep the leaflet and packaging of the
metal cutting tool in a safe place.
WARNING
Wear protective gloves to reduce the
risk of direct contact with the sharp
cutting edges.
Mount only metal cutting attachments.
Check direction of rotation of cutting
attachment
The cutting edges of the grass cutting
blades (1) and (2) may point in either
direction – these cutting attachments
must be turned over regularly to reduce
one-sided wear.
Cutting edges of grass cutting blade (3)
must point clockwise.
WARNING
Direction of rotation is indicated by an
arrow on the inside of the deflector.
N Place the cutting attachment (4) on
the thrust plate (5).
WARNING
Collar (see arrow) must engage the
cutting attachment's mounting hole.
Securing the cutting attachment
N Fit the thrust washer (6) – convex
side must face up.
N Fit the rider plate (7).
N Block the shaft (8).
N Screw the mounting nut (9) on to the
shaft counterclockwise and tighten
it down firmly.
WARNING
If the mounting nut has become too
loose, fit a new one.
1
002BA385 KN
1
3
2
681BA050 KN
681BA051 KN
6
9
7
8
5
4
