Stihl FS 56 C User Manual

FS 56, FS 56 R, FS 56 C, FS 56 RC
English
35

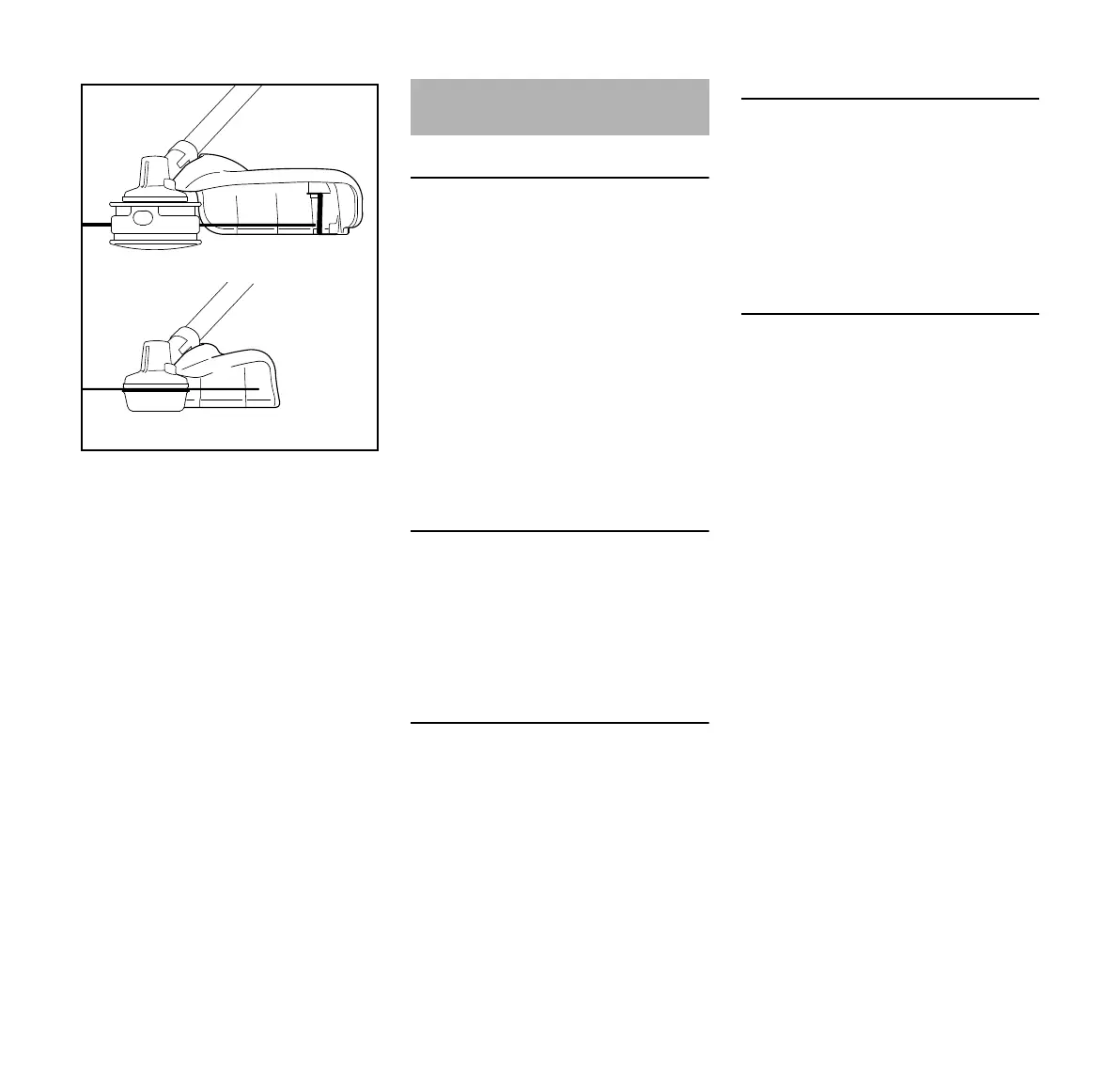

1 Mowing head
2 Deflector for mowing heads only
3 Blade
4 Deflector for grass cutting blades
only
5 Grass cutting blade
Engine
Single-cylinder two-stroke engine
Ignition system
Electronic magneto ignition
Fuel system
All-position diaphragm carburetor with
integral fuel pump
Weight
Noise and Vibration Data
Noise and vibration data measurements
include idling and rated maximum speed
with the same duration of exposure.
For further details on compliance with
Vibration Directive 2002/44/EC see
www.stihl.com/vib/
Sound pressure level L
peq
to ISO 22868
FS 56, FS 56 C
FS 56 R, FS 56 RC
Sound power level L
w
to ISO 22868
FS 56, FS 56 C, FS 56 R, FS 56 RC
1
002BA270 KN
2
3
4
5
Specifications
Displacement: 27.2cm
3
Cylinder bore: 34 mm
Piston stroke: 30 mm
Engine power to
ISO 8893:
0.8 kW (1.1 hp)
at 8500 1/min
Idle speed: 2800 rpm
Cut-off speed (nomi-
nal value): 10000 rpm
Max. output shaft
speed (cutting
attachment): 8600 rpm
Spark plug
(suppressed):
NGK CMR 6 H,
BOSCH USR 4
AC
Electrode gap: 0.5 mm
Fuel tank capacity: 340 cm
3
(0.34 l)
Dry, without cutting attachment and
deflector
FS 56: 5.1 kg
FS 56 R: 4.7 kg
FS 56 C with ErgoStart: 5.2 kg
FS 56 RC with ErgoStart: 4.8 kg
with mowing head: 93 dB(A)
with metal tool: 94 dB(A)
with mowing head: 93 dB(A)
with metal tool: 94 dB(A)
with mowing head: 107 dB(A)
with metal tool: 107 dB(A)

Stihl FS 56 C Specifications

General

Engine Displacement	27.2 cc
Handle Type	Loop handle
Sound Pressure Level	94 dB(A)
Shaft Type	Straight
Power Output	0.8 kW
Cutting Swath	16.5 in
