Stihl FS 80 Service Manual

39FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

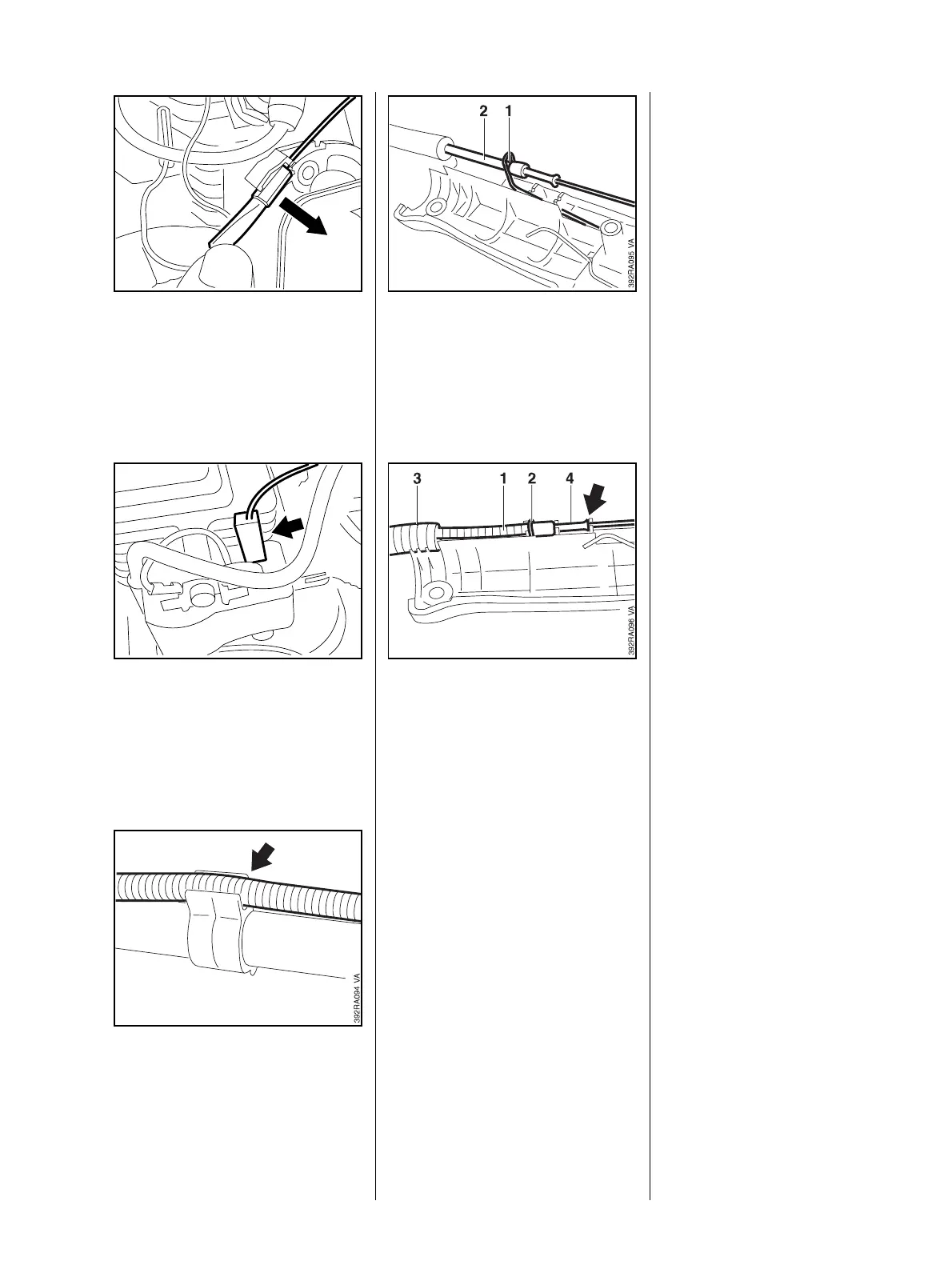

: Pull the throttle cable out of the
tensioner.
VA
936RA117
: Pull short circuit wire’s connector
(arrow) off the tag on the ignition
module.
VA
936RA118
: Take throttle cable’s protective
tube out of the retainer.
– Remove the throttle trigger, b
8.6.1
: Lift the contact spring (1) and
remove the throttle cable (2).
Install in the reverse sequence.
: Make sure the throttle cable (1),
contact spring (2), protective
tube (3) and insulator (4) are
properly seated.
Check that the short circuit wire
(arrow) is making good contact.

Stihl FS 80 Specifications

General

Engine Type	2-stroke
Displacement	25.4 cc
Cutting Diameter	420 mm
Shaft Type	Straight
Starter	Recoil
Sound Power Level	106 dB(A)
Fuel Capacity	0.44 liters
Vibration Level	4.5 m/s²
