Stihl FS 88 - Mounting Loop Handle (Version A)

4
On FS 88
• Place the clamp (5) in the loop
handle (1).
•
PlaE:e packing sleeve (7)
on the drive tube (6).
• Fit the clamp
(8) and place standoff
lever
(4) in position -
line up the holes.
• Insert screws
(9) in holes and
screw them into standoff lever
fingertight.
• Align the loop handle.
• Tighten the screws firmly.
22

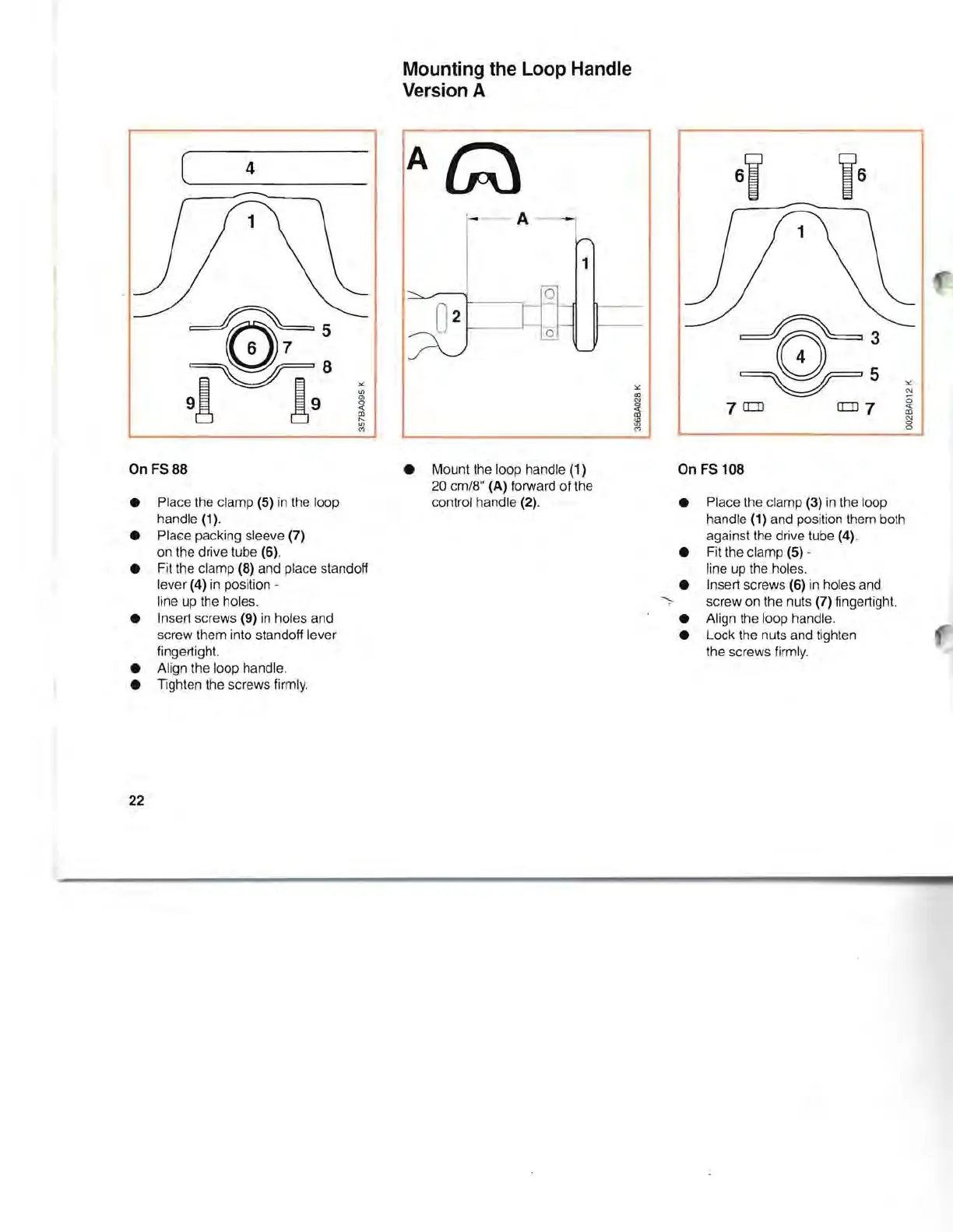

Mounting the Loop Handle
Version A
At;)
A
1
o
o
• Mount the loop handle (1)
20 cm/8" (A) forward of the
control handle (2).
On FS 108
• Place the clamp (3) in the loop
handle
(1) and position them both
against the drive tube
(4)
• Fit the clamp (5) -
line up the holes.
• Insert screws
(6) in holes and
~. screw on the nuts (7) fingertight.
• Align the loop handle.
• Lock the nuts and tighten
the screws firmly.
