5 4
B~

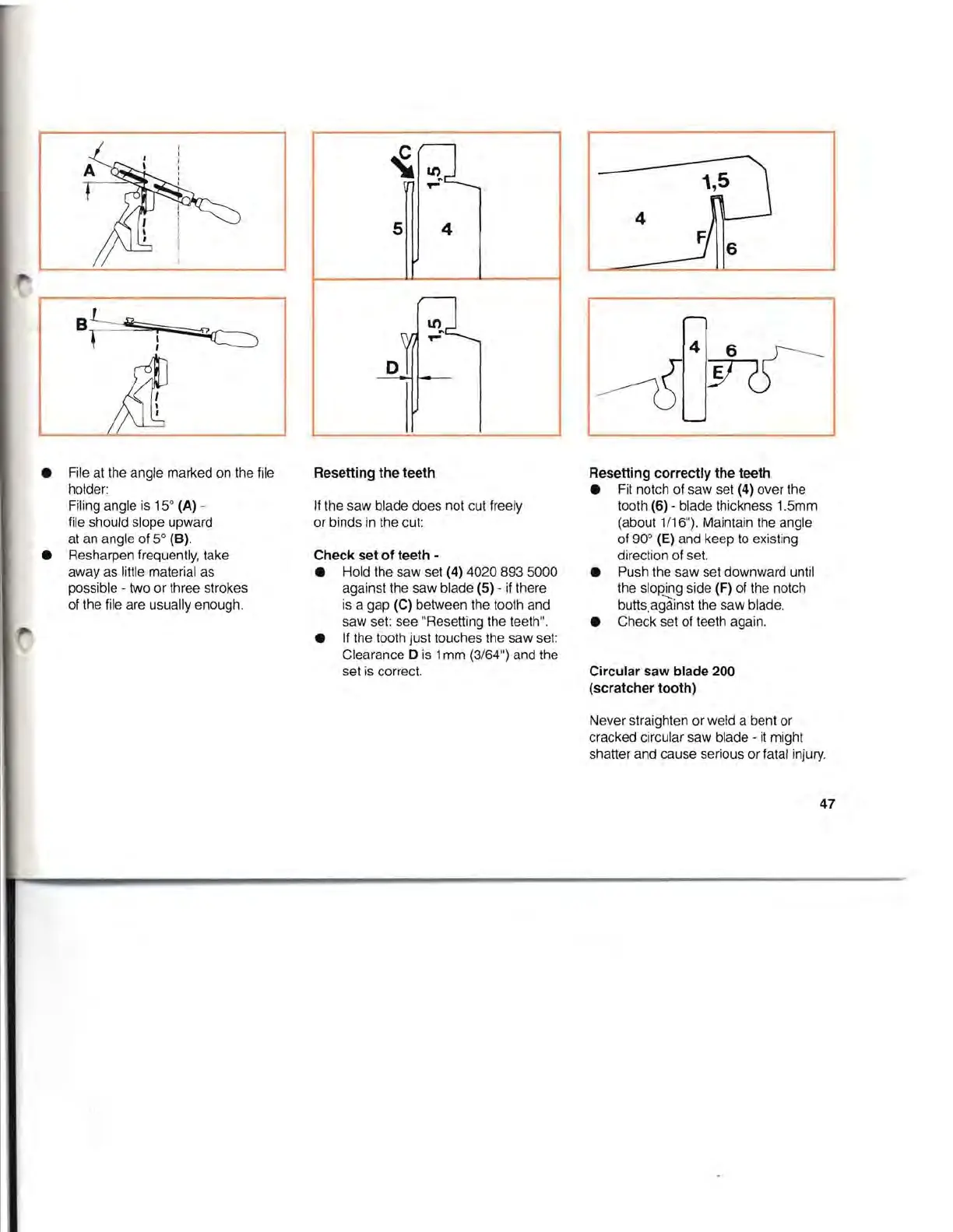

• File at the angle marked on the file
holder:
Filing angle
is
15°
(A)
-
file should slope upward
at an angle of 5° (B).
• Resharpen frequently, take
away as little material as
possible - two or three strokes
of the file are usually enough.
Resetting the teeth
If
the saw blade does not cut freely
or binds
in
the cut:
Check set of teeth -
• Hold the saw set
(4) 4020 893 5000
against the saw blade
(5) - if there
is a gap
(C)
between the tooth and
saw set: see "Resetting the teeth".
•
If
the tooth just touches the saw set:
Clearance
0
is
1mm (3/64") and the
set
is
correct.
Resetting correctly the teeth
• Fit notch of saw set
(4) over the
tooth
(6) - blade thickness 1.5mm
(about 1/16"). Maintain the angle
of 90°
(E) and keep
to
existing
direction of set.
• Push the saw set downward until
the sloRing side
(F) of the notch
"',
butts,against the saw blade.
• Check set of teeth again.
Circular
saw
blade 200
(scratcher tooth)
Never straighten or weld a bent or
cracked circular saw blade -
it
might
shatter and cause serious or fatal injury.
47
