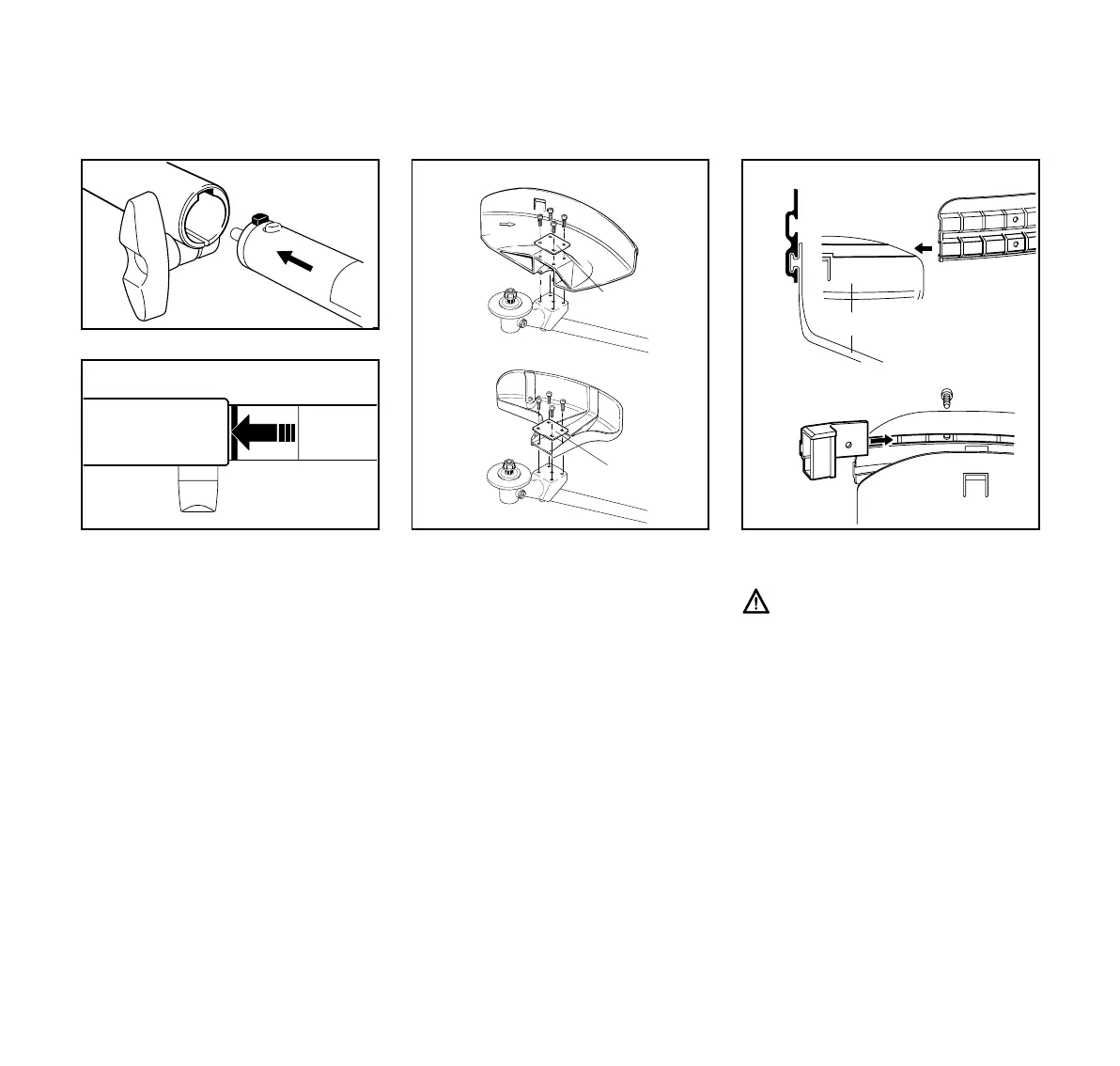

Mounting
: Engage lug (1) on drive tube in
slot (2) in the coupling sleeve and
push home the drive tube as far as
stop.
: When correctly installed, the red
line (3) (arrow point) must be flush
with the end of the coupling sleeve.
: Tighten the wing screw (4) firmly.
Removing
: Reverse the above sequence to
remove the drive tube.
Mounting the deflector
1 = Deflector approved for all cutting
tools
2 = Deflector approved for use with
mowing heads only
: Place the deflector on the
gearhead.
: Fit the plate (3) and line it up.
: Insert M 5 x 18 screws and tighten
down firmly.
Fitting skirt and blade
These parts must be fitted to the
deflector (1) when you use a
mowing head:
: Slide the lower guide slot of the
skirt (4) onto the deflector (1) – it
must snap into position.
: Push the blade (5) into the upper
guide slot on the skirt and line it up
with the first hole.
: Fit the screw and tighten it down
firmly.
Mounting the KombiTool
002BA132 KN
1
2
4
3
002BA133 KN
Mounting the Deflector
002BA102 KN
1
3
2
3
4
1
5
4
002BA103 KN
