: Place the cutting tool (6) on the
thrust plate (7).
Collar (see arrows) must locate in
cutting tool’s mounting hole.
: Slip thrust washer (8) and rider
plate (9) over the output shaft (10).
: Block the output shaft and
: Screw the mounting nut (11) with
the combination wrench (12) onto
the output shaft counterclockwise
and tighten down firmly.
If the mounting nut is too loose,
fit a new one.
Removing cutting tool
: Block the output shaft.
: Unscrew the nut clockwise.
: Removing the cutting tool – do not
remove the thrust plate (7).
The type and style of harness depend on
the market.

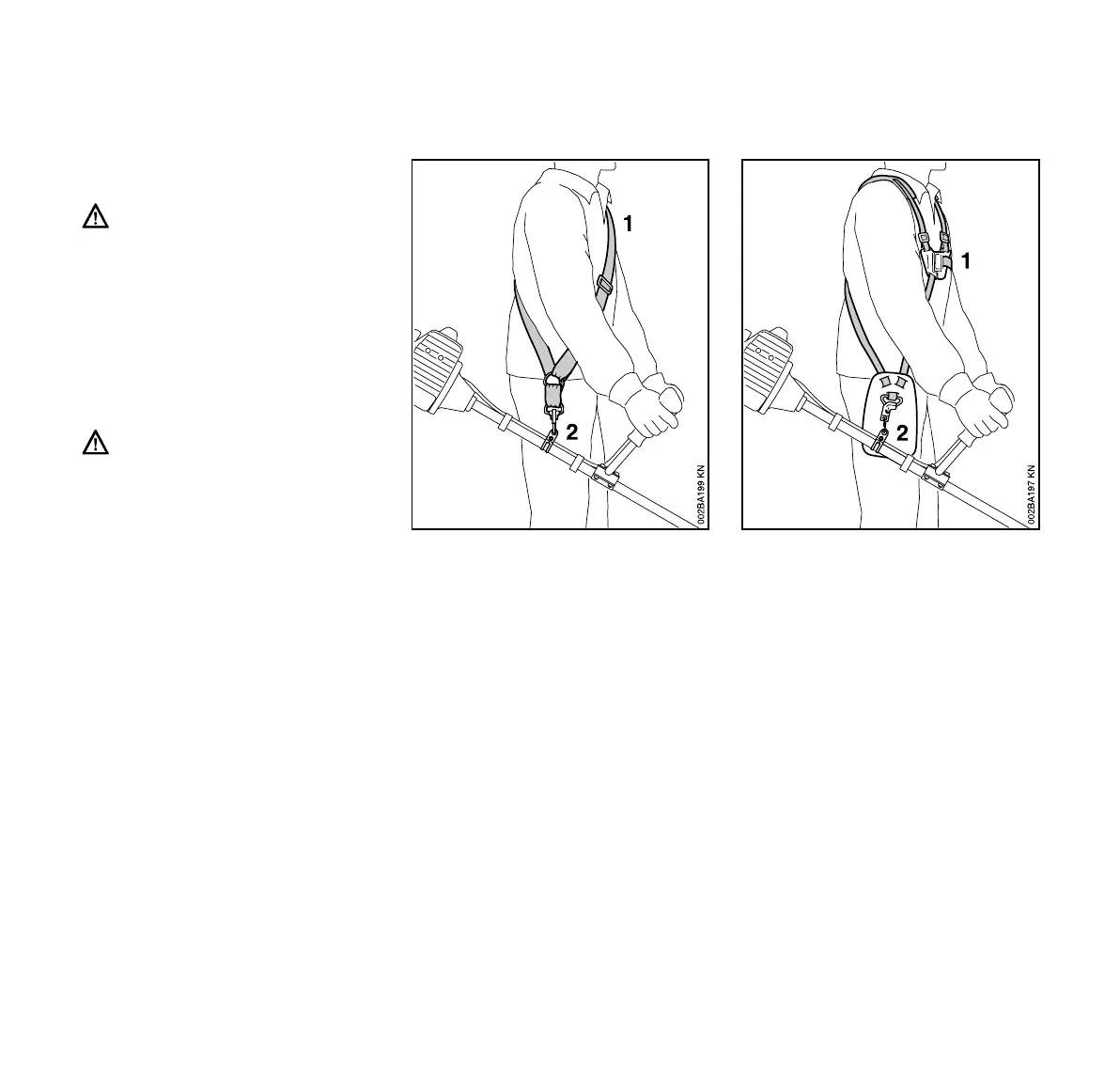

Shoulder strap*
: Put on the shoulder strap (1).
: Adjust length until the spring hook
(2) is about a hand’s width below
your right hip.
: Balance the brushcutter.
The use of the shoulder strap is
described in chapter “Approved
Combinations of Cutting Tool, Deflector,
Handle and Harness”.
Full harness
: Put on the full harness (1).
: Adjust length until the spring hook
(2) is about a hand’s width below
your right hip.
: Balance the brushcutter.
The use of the harness is described in
chapter “Approved Combinations of
Cutting Tool, Deflector, Handle and
Harness”.
Fitting the Harness
