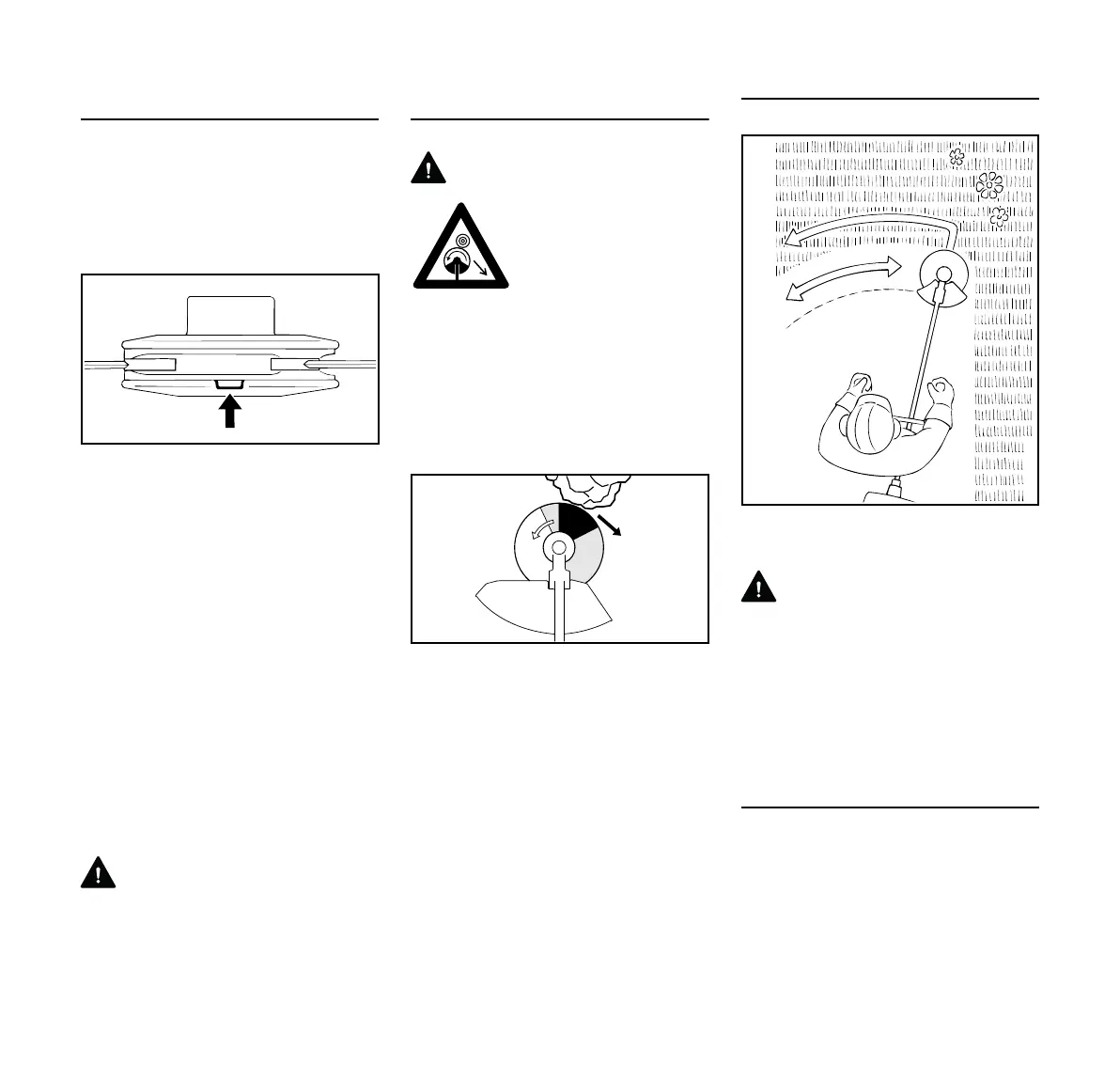

Cabezal de corte con cuchillas de
plástico – STIHL PolyCut
Para segar bordes de prados silvestres
(sin postes, vallas, árboles ni obstáculos
similares).
¡Tener en cuenta las marcas de
desgaste!
Si se ha roto una de las marcas del
cabezal de corte PolyCut hacia abajo
(flecha): no volver a utilizar el cabezal de
corte y sustituirlo por uno nuevo.
¡Peligro de lesiones por piezas de la
herramienta despedidas!
Observar sin falta las indicaciones de
mantenimiento para el cabezal de corte
PolyCut.
En lugar de las cuchillas de plástico, se
puede poner también hilo en el cabezal
de corte PolyCut.
En el volumen de suministro del cabezal
de corte existen hojas de instrucciones
adjuntadas. Poner cuchillas de plástico
o hilo en el cabezal de corte sólo según
las indicaciones contenidas en las hojas
de instrucciones.
ADVERTENCIA
No poner alambres o cuerdas en lugar
del hilo de corte – ¡peligro de lesiones!
Peligro de rebote en el caso de
herramientas de corte de metal
ADVERTENCIA
Existe un riesgo de rebote aumentado
cuando la herramienta incide en un
obstáculo por el sector negro.
Hoja cortahierbas
Sólo para hierba y malas hierbas – guiar
la máquina como una guadaña.
ADVERTENCIA
El uso inapropiado puede dañar la hoja
cortahierbas – ¡peligro de lesiones! por
piezas despedidas
Afilar la hoja cortahierbas cuando el
embotamiento sea perceptible,
procediendo con arreglo a las
prescripciones.
Cuchilla cortamalezas
Para cortar hierba enredada, aclarar
hierba silvestre y matorrales y para el
aclareo de arboleda joven con un
diámetro de tronco de máximo 2 cm – no
cortar madera más gruesa – ¡peligro de
accidente!
002BA049 KN
Al trabajar con herra-
mientas de corte de
metal, existe el peligro de
rebote cuando la herra-
mienta incide en un
obstáculo sólido (el
tronco de un árbol, rama,
tocón, piedra o algo simi-
lar). La máquina es
lanzada entonces hacia
atrás – en sentido contra-
rio al del giro de la
herramienta.
002BA135 KN
000BA020 KN
