FS 56, FS 56 R, FS 56 C, FS 56 RC
English
22

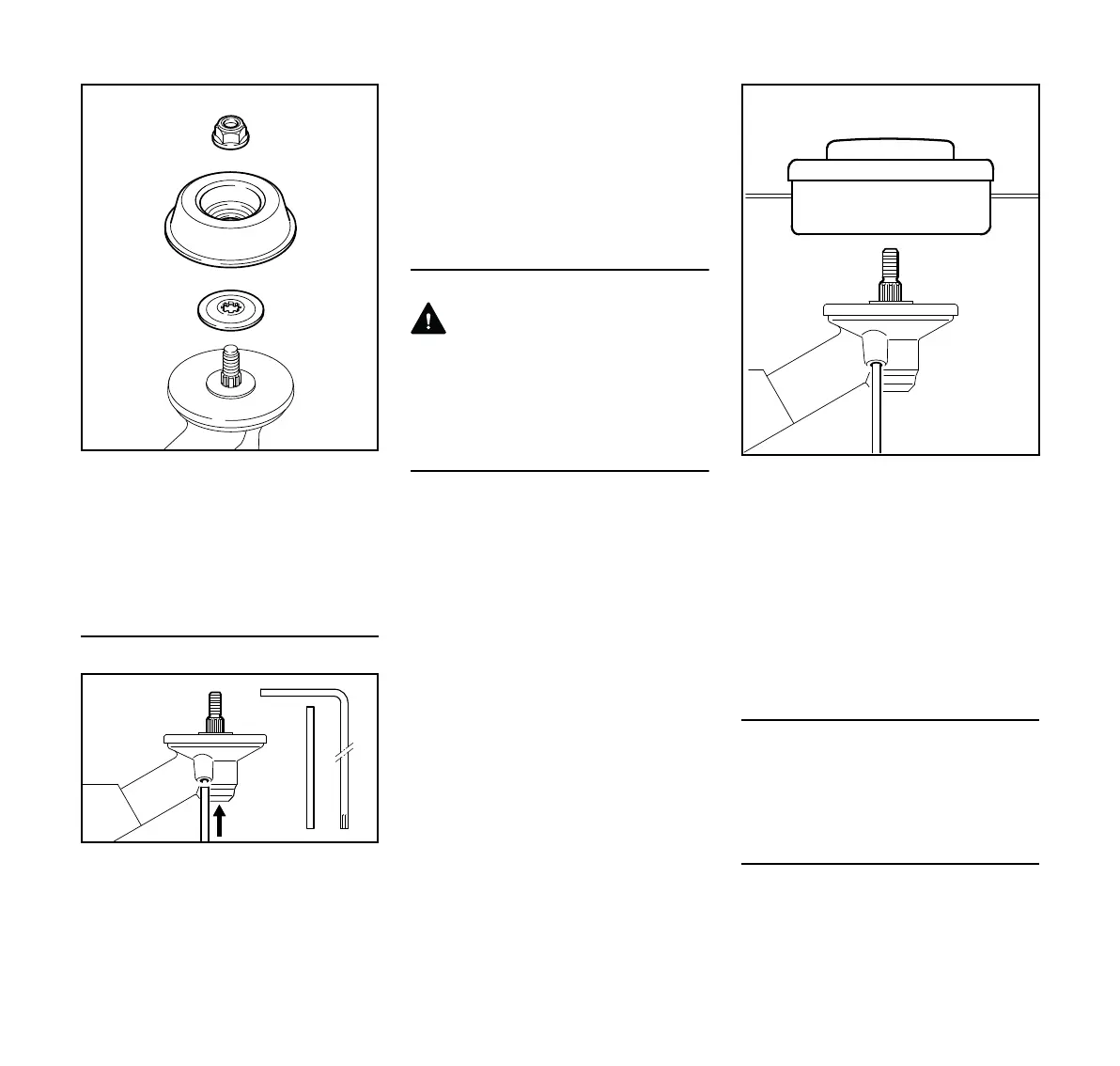

The nut (3), rider plate (4) and thrust
washer (5) are required to secure some
mowing heads.
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Block the shaft.
The output shaft (2) must be blocked
with the stop pin (7) or screwdriver (7) to
mount or remove cutting tools. These
parts come standard with the machine or
are available as special accessories.
N Insert the stop pin (7) or offset
screwdriver (7) in the hole (8) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate shaft or cutting attachment
until the stop pin slips into position
and blocks the shaft.
Mounting the Cutting Attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Fitting Mowing Head with Screw
Mounting
Keep the instruction leaflet for the
mowing head in a safe place.
N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head
firmly.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
N Block the shaft.
N Unscrew the mowing head
clockwise.
Mounting Metal Cutting Attachment
Keep the leaflet and packaging of the
metal cutting tool in a safe place.
