0478 216 9907 C - EN
36
Risk of injury from the blades.
Always store an old garden shredder in a
safe place prior to scrapping. Ensure that
the machine and particularly all the blades
are kept out of the reach of children.
● Place the machine on level and firm
ground when performing all the
operations described.
7.1 Installing ejection chute
extension
● Fit ejection chute extension (E)
onto basic unit and install screws (J)
(1 - 2Nm).

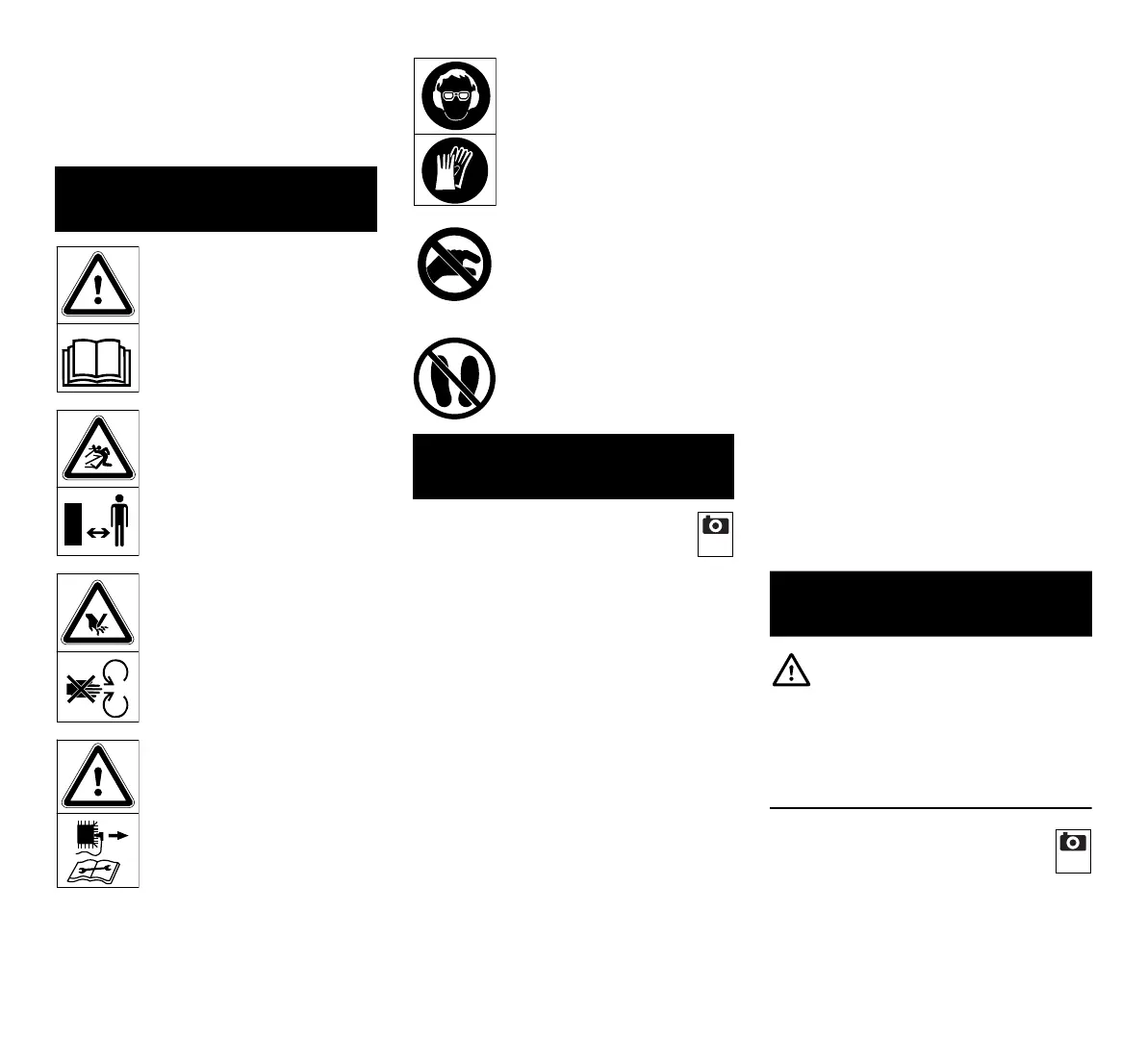

5. Description of symbols
Caution!
Read the instruction man-
ual before initial use.
Risk of injury!
Keep other persons out of
the danger area.
Risk of injury:
Risk of injury caused by
rotating tools.
Caution:
Detach the spark plug
socket before performing
any maintenance or clean-
ing operations.
Wear hearing protection.
Wear safety glasses.
Wear work gloves.
Risk of injury:
Never put your hands or any
other part of your body or
clothing into the feed chute
or ejection chute.
Risk of injury:
Do not climb onto the
machine.
6. Standard equipment
Item Designation Qty.
A Feed chute 1
B Basic unit 1
C Wheel carrier 1
D Discharge flap 1
E Ejection chute extension 1
F Strip 1
G Wheel 2
H Wheel cap 2
I Blade disc 1
J Torx screw
P5x20
5
K1 Nut M10 2
K2 Lock nut M8 2
L1 Washer 2
L2 Washer A10 2
2
M Torx screw
P5x50
1
N Flat head bolt
M8x45
2
O Hexagon screw
M10x55
1
P Retaining washer 1
Q Closure screw 2
R Wheel pin 2
S Pin 2
T Deflector 1
U Upper spacing ring 1
V Lower spacing ring 1
W Protective cap 1
X Installation tool 1
Y Torx wrench 1
Z Combination spanner 1
• Instruction manual 1
• Engine
instruction manual
1
7. Preparing the machine for
operation
Risk of injury:
Observe the safety instructions in
the section "For your safety" (Ö 4.).
Item Designation Qty.
3
