7.1 Installing the wheels and feet
GHE 140 L:

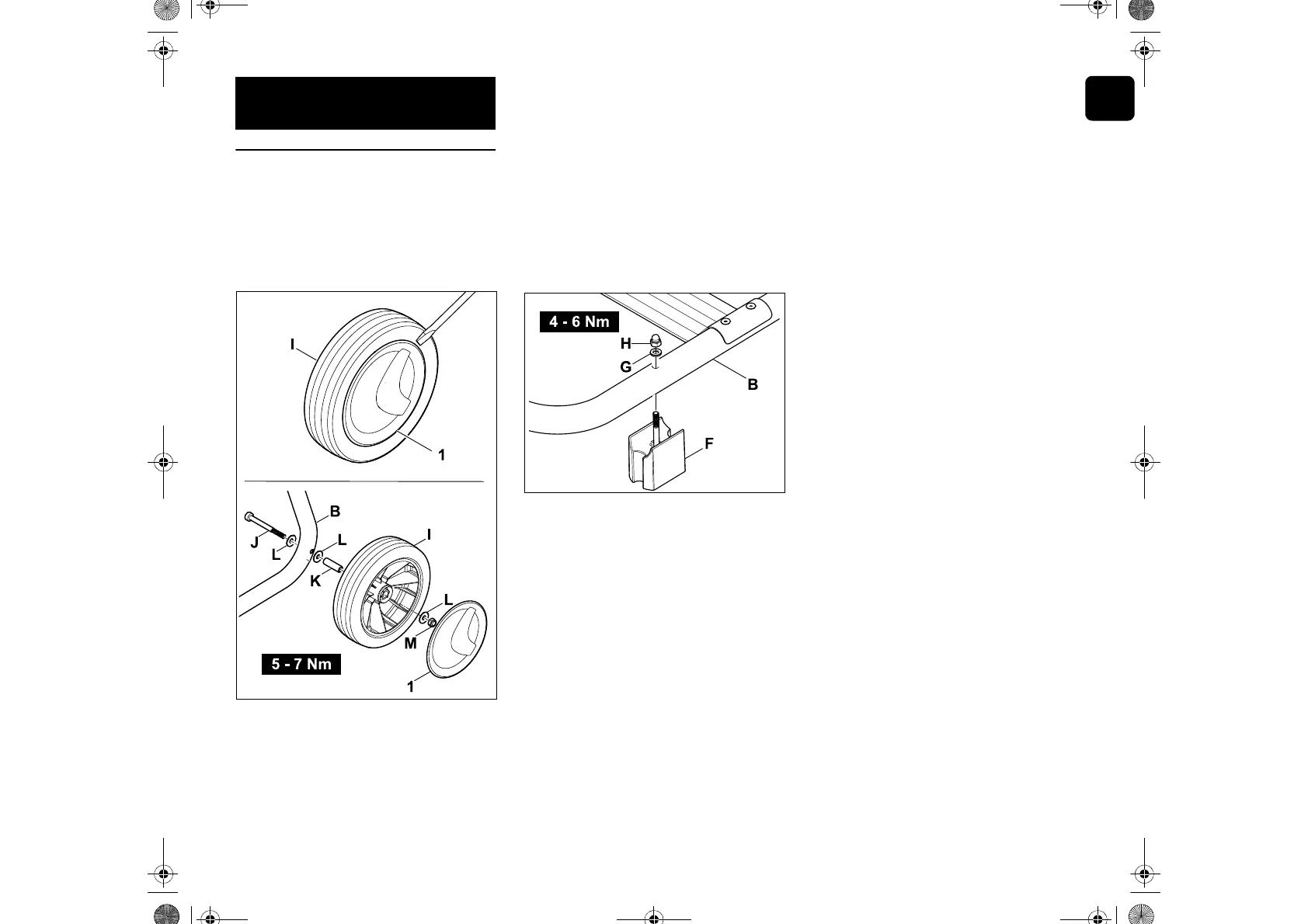

– Fold out the machine. (Ö 10.12)
Installing the wheels:
GHE 135 L, GHE 140 L:
– Remove the shredder bag. (Ö 10.6)
● Lever wheel cap (1) from wheel (I)
using a screwdriver.
● Insert bolt (J) with washer (L) from the
inside through the bore in wheel
carrier (B). Push washer (L) and
sleeve (K) onto bolt (J). Push wheel (I)
onto sleeve (K). Fit nut (M) with
washer (L) and tighten to 5-7 Nm.
● Centre wheel cap (1) on wheel (I) and
press in until wheel cap (1) engages.
– Repeat this procedure on the other
side.
Installing the feet:
● Insert the bolt of foot (F) through the
bore in wheel carrier (B) from below. Fit
washer (G) on the bolt, screw on
nut (H) and tighten to 4-6 Nm.
– Repeat this procedure on the other
side.
7. Preparing the machine for
operation
