Stihl HL 100 User Manual

HL 100, HL 100 K
English
20
WARNING
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear housing.
WARNING
To reduce the risk of injury, never touch
the blades while making adjustments.

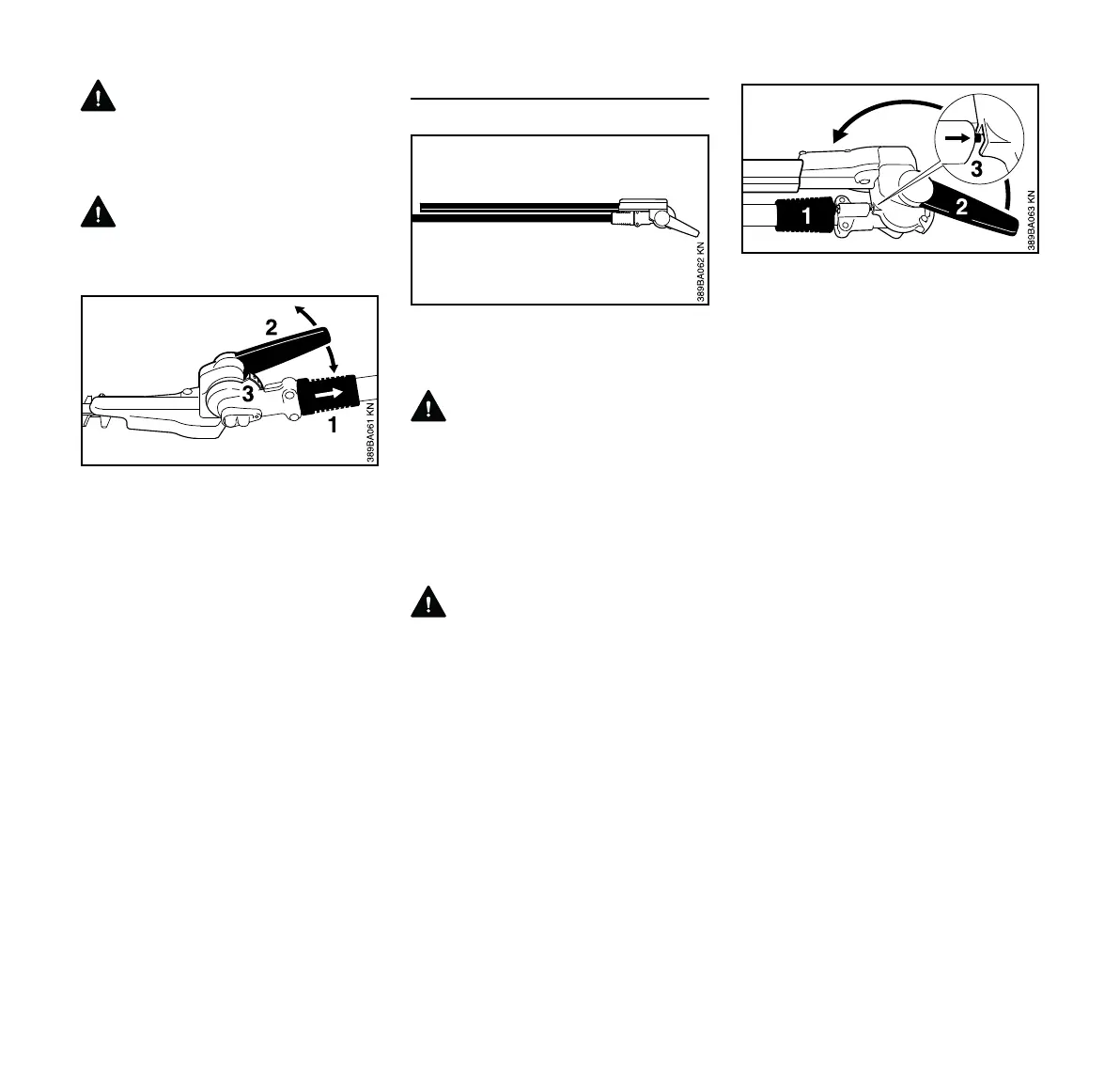

N Pull back the sliding sleeve (1) and
use the lever (2) to adjust the joint
by one or several holes.
N Release the sliding sleeve (1) and
make sure the lock pin engages the
quadrant (3).
The sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).
Transport Position
The cutter bar can be folded flat against
the drive tube and locked in position to
save space during transportation.
WARNING
To reduce the risk of injury, always shut
off the engine – move slide control to
STOP or stop switch to 0 – and fit the
blade scabbard before moving the cutter
bar to the transport position or from the
transport position to the normal working
position.
WARNING
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear housing.
N Shut off the engine.
N Fit the blade scabbard.
N Pull back the sliding sleeve (1) and
use the lever (2) to swing the joint
upwards – in direction of drive tube
– until the cutter bar is flat against
the drive tube.
N Release the sliding sleeve (1) and
make sure the lock pin engages the
quadrant (3).
The sliding sleeve butts against the
housing when the pin is properly
engaged (after making adjustment).
