12
English / USA
KM 110, KM 130
: Place the secured assembly on the
handle support (8) with the wing
screw at the engine side.
: Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
: Line up the handlebar at a right
angle to the drive tube – check
dimension A again.
: Tighten down the wing screw firmly

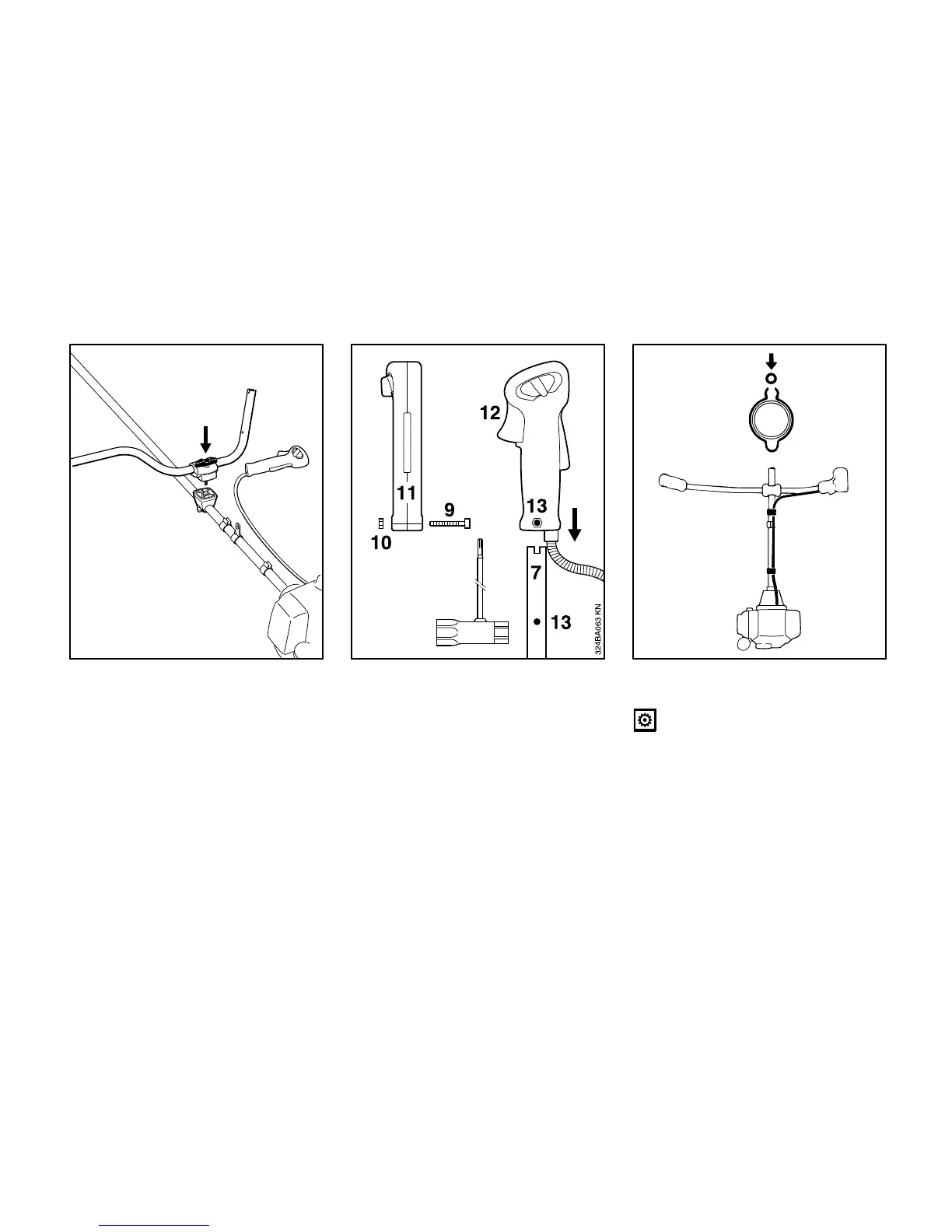

Mounting the Control Handle
: Loosen the screw (9). The nut (10)
remains in the control handle (11).
: Push the control handle – throttle
trigger (12) must point toward the
gearbox – onto the handlebar (7) so
that the holes (13) line up.
: Insert screw and tighten down
firmly.
Fitting the Throttle Cable
Do not kink the throttle cable or lay
it in tight radii – make sure the
throttle trigger moves freely.
: Press the throttle cable (14) into the
retainers (15).
Throttle Cable Adjustment
On control handles with slide:
: Go to chapter "Adjusting the
Throttle Cable".
* see "Guide to Using this Manual"
002BA234 KN
8
15
14
15
14
15
250BA002 KN
