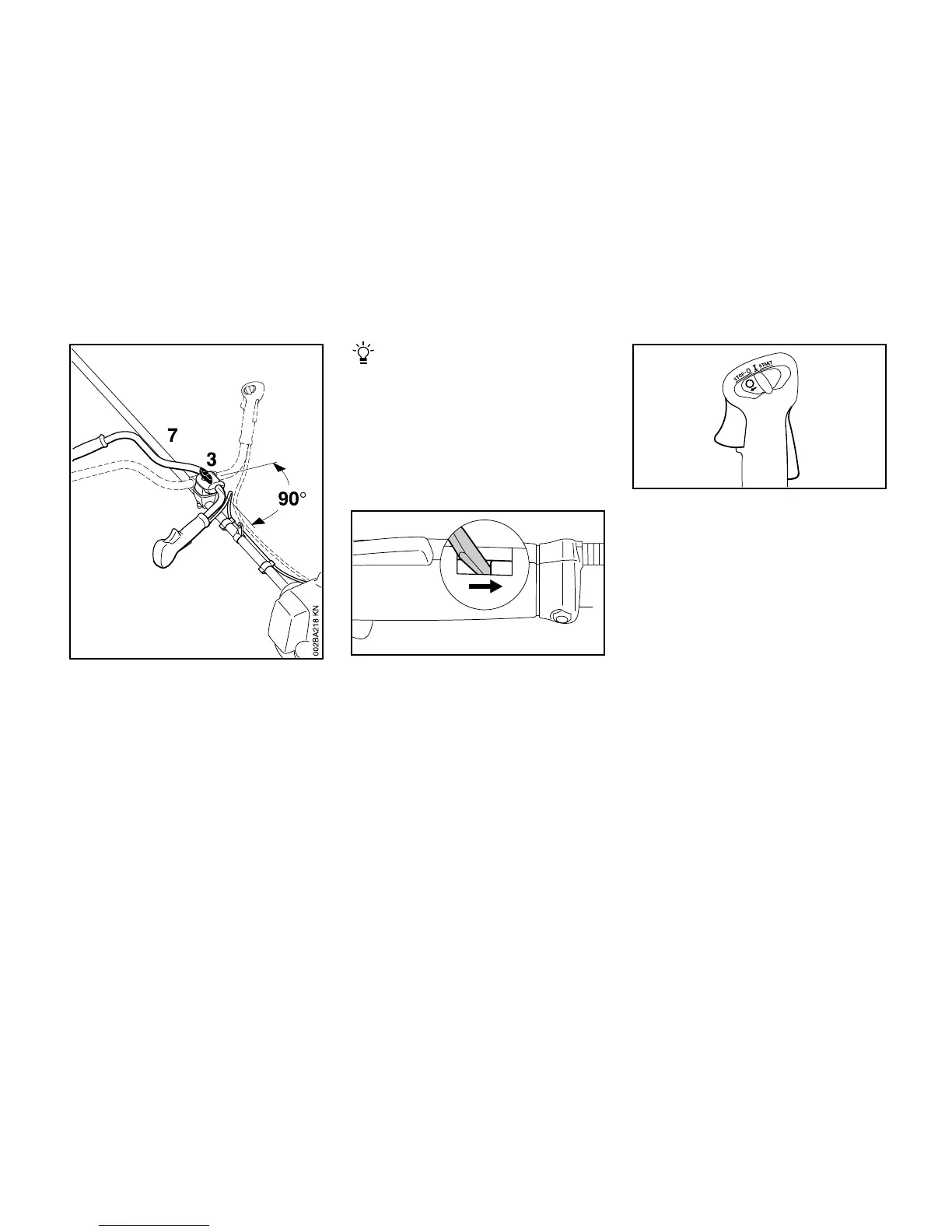

Swiveling the Handlebar
Transport position:
: Release the wing screw (3) and
unscrew it until the handlebar (7)
can be turned clockwise.
: Turn the handlebar 90° and then
swing the handles down.
: Tighten down the wing screw firmly.
Working position:
: Reverse the sequence described
above to swing the handles up
and turn the handlebar counter-
clockwise.
A properly adjusted throttle cable is
the precondition for correct
operation in the full throttle, starting
throttle and idle positions.
Adjust the throttle cable only after
the unit is fully assembled – the
control handle must be in the normal
operating position.
: Use a suitable tool to push the slide
to the bottom of the slot (see
illustration).
: Press down the trigger interlock (1)
and squeeze the throttle trigger (2)
(full throttle) – this sets the throttle
cable correctly.
Adjusting the Throttle Cable
002BA163 KN
STOP
249BA017 KN
1
2
