KM 110, KM 130

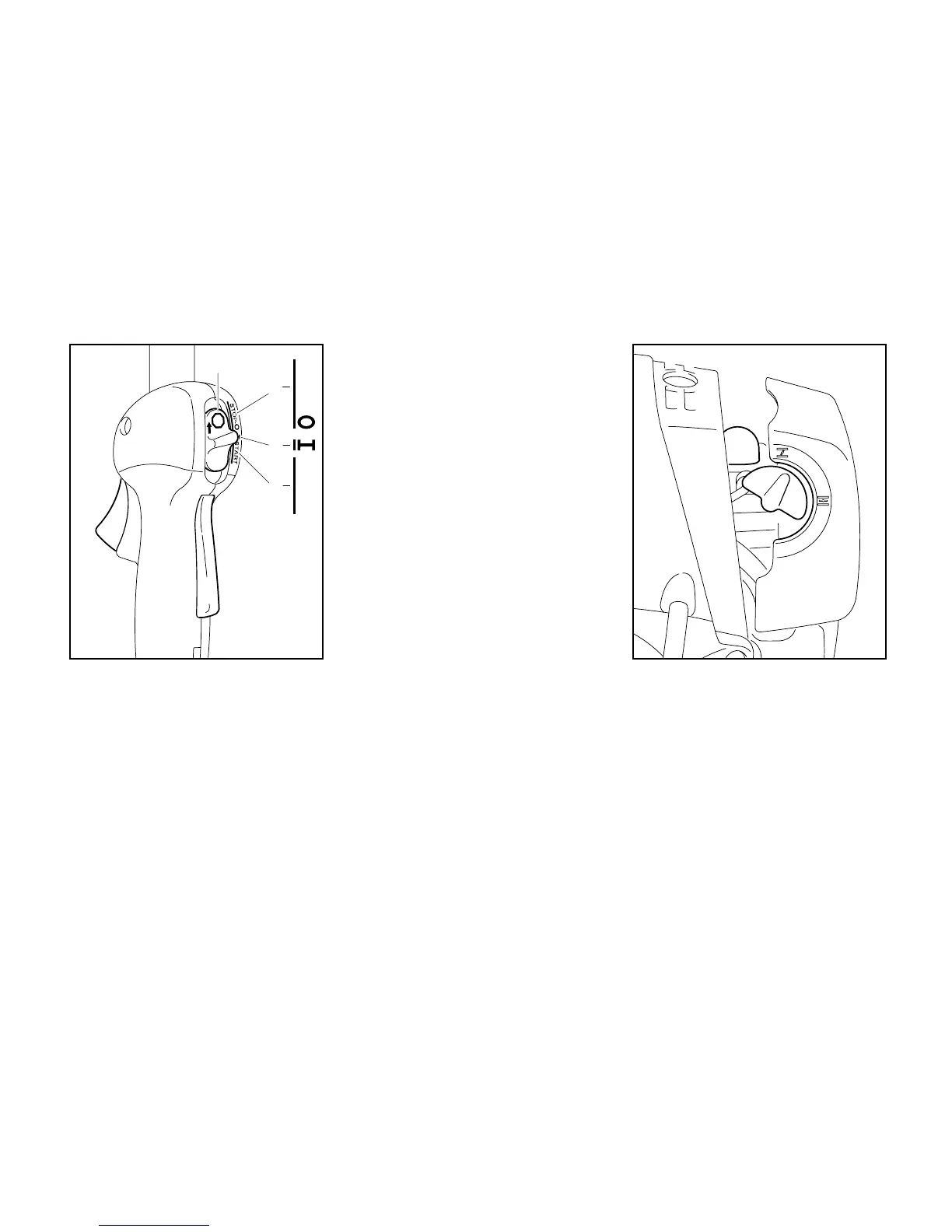

Control handle on drive tube
Throttle trigger interlock (1), throttle
trigger (2) and slide control (3).
Positions of Slide Control
STOP-O (4) – engine off – the ignition is
switched off
# – normal run position (5) – the engine
is running or can start
START (6) – the ignition is switched on,
the engine can start
Symbol on slide control
h (7) – stop symbol and arrow – to stop
the engine, push the slide control in the
direction of the arrow on the stop symbol
(h) to STOP-O.
Starting Procedure
: Hold down the throttle trigger
interlock and squeeze the throttle
trigger.
: While holding both levers in this
position, move the slide control to
START and hold it there.
: Now release the throttle trigger,
slide control and throttle trigger
interlock in that order. This is the
starting throttle position.
: Set the choke knob (8):
For cold start to
g
For warm start to e
Also use this setting if engine has
been running but is still cold.
: Press the fuel pump bulb (9) at least
five times, even if the bulb is still
filled with fuel.
3
STOP
2
5
6
4
7
002BA181 KN
START
STOP-
1
249BA007 KN
9
8
