: Thread the rope through the rotor
and secure it with a simple
overhand knot.
: Coat rope rotor bearing bore with
non-resinous oil.
: Slip rotor over starter post – turn it
back and forth to engage anchor
loop of rewind spring.
: Refit the pawl (5) in the rotor.
: Fit the washer (4) on the starter
post.
: Use a screwdriver or suitable pliers
to install spring clip (3) on starter
post and engage it on the pawl's peg
– the spring clip must point
counterclockwise clockwise as
shown in the illustration.
: Go to "Tensioning the rewind
spring".
Replacing a broken rewind spring
: Remove the rope rotor as described
under "Replacing Starter Rope and
Rewind Spring".
The bits of spring might still be
under tension and could fly apart
when you take them out of the
housing. To reduce risk of injury,
wear eye and face protection and
work gloves.
: Remove spring housing and the
parts of the spring.
: Lubricate the new spring with a few
drops of non-resinous oil.

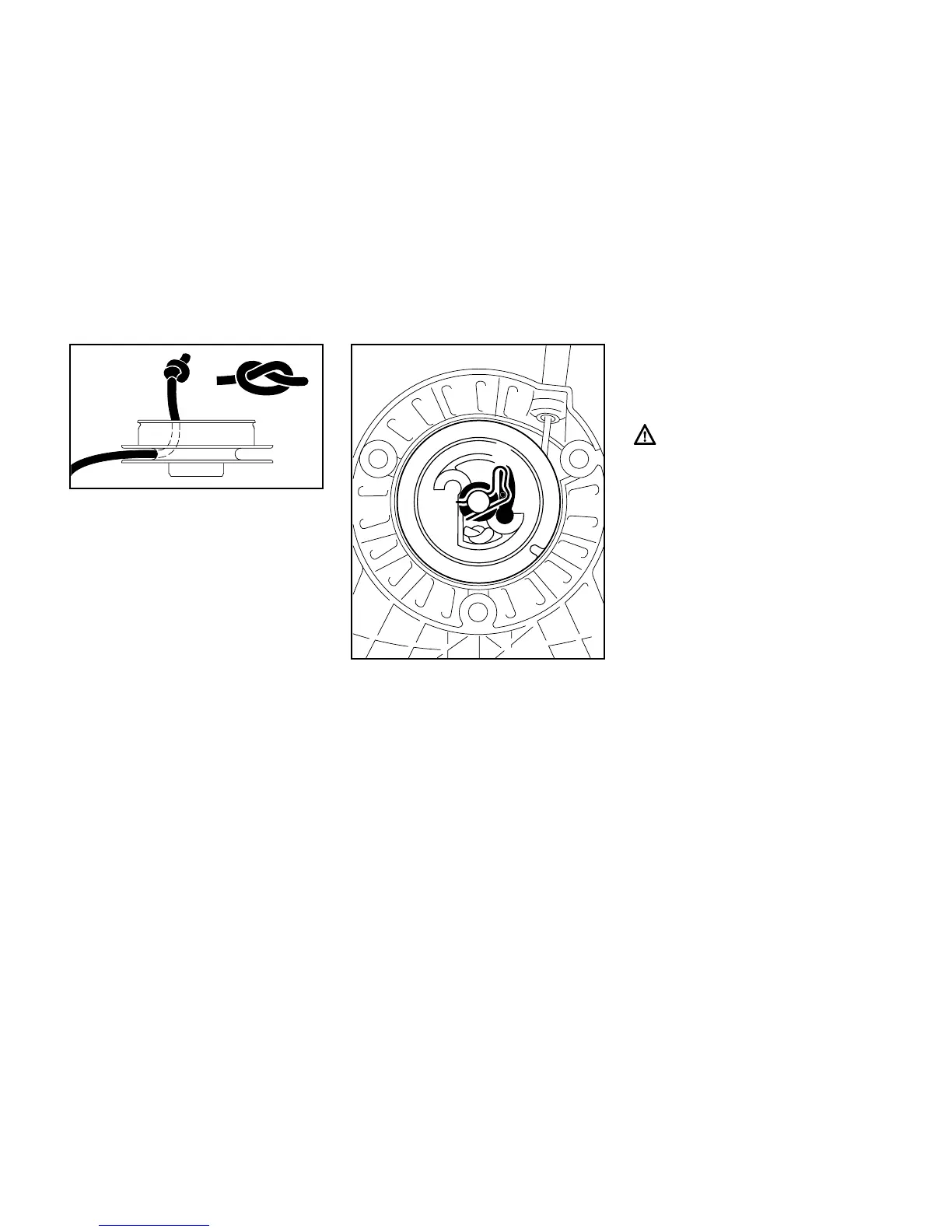

249BA015 KN
