Stihl HL - Approved Basic Power Tools; Mounting the Attachment; Attachment Preparations

12
English / USA
HL

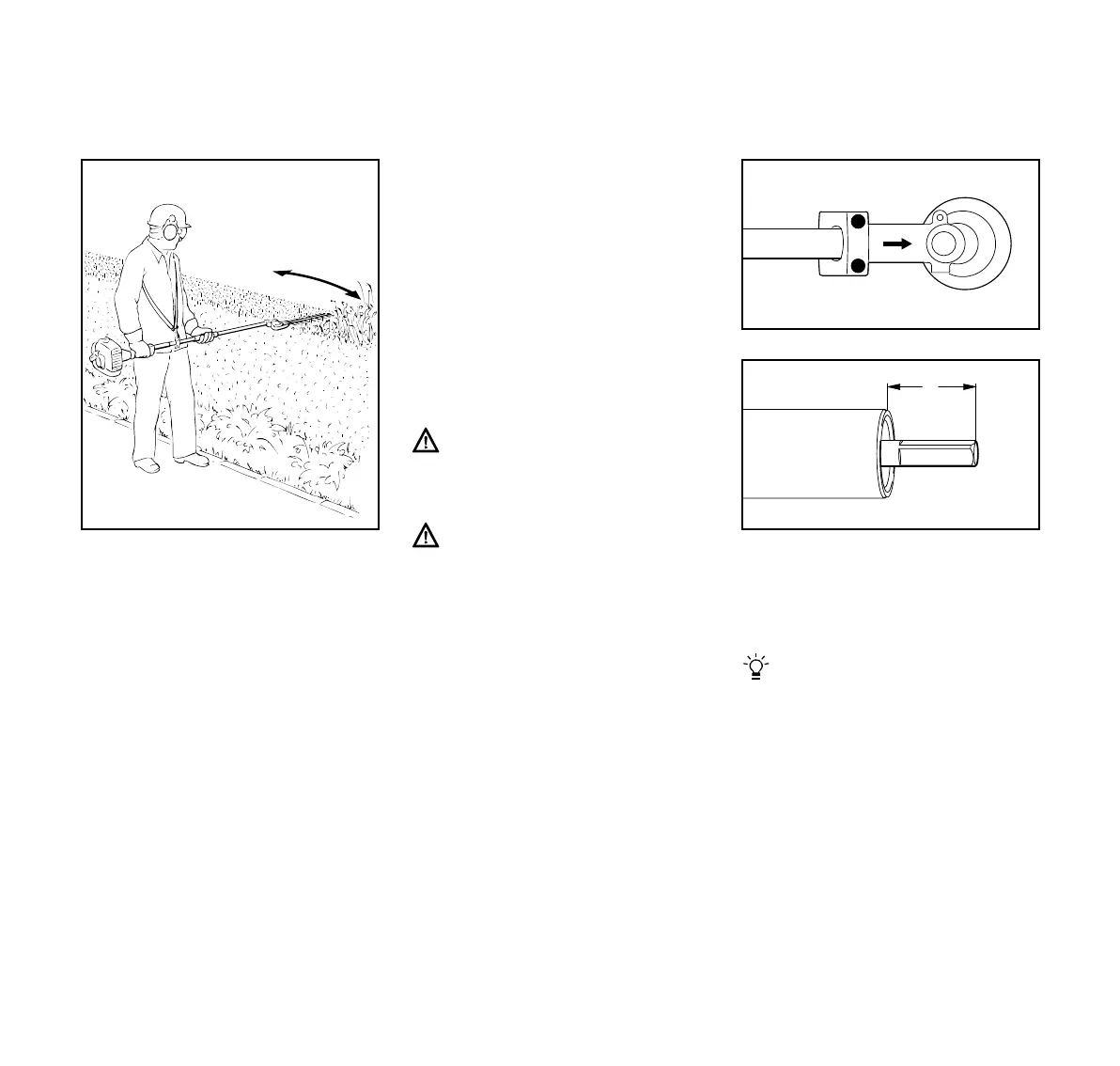

Horizontal cut
(with straight cutter bar)
Cutting without standing directly in front
of the hedge, e.g. reaching over a
flowerbed.
Operation of STIHL HL-0° and
HL-0° - 90°/135° hedge cutter
attachments is permitted only with the
following basic power tools:
STIHL FC 83, STIHL FC 85,
STIHL FC 110, STIHL FH 75,
STIHL FS 83
1)
, STIHL FS 85
1)
,
STIHL FS 110
1)
, STIHL HL 73,
STIHL HL 73 K, STIHL HL 75,
STIHL HL 75 K, STIHL HL 100,
STIHL HL 100 K, STIHL KW 85,
STIHL HT 70
2)
, STIHL HT 101
2)
Loop-handled machines must be
equipped with a barrier bar before
using hedge cutter attachments with
a 0° - 90°/135° cutter bar.
Other combinations of the
attachment and non-approved
power tools are not permitted since
they may result in accidents or
serious personal injury.
1)
HL-0° attachment not approved for
units with a bike handle
2)
Only approved with HL-0°
attachment
Preparations
: Loosen the clamp screws on the
basic power tool’s gearhead and
pull the gearhead off the drive tube.
The drive shaft may slip out of the
tube in this process. If this happens,
push the drive shaft back into the
tube.
The drive shaft must not project from the
tube more than L = 0.9“ (22 mm). If
necessary, apply slight pressure to the
drive shaft and rotate it slowly at the
same time until it can be pushed in to the
required length.
389BA047 KN
Approved Basic Power
Tools
Mounting the Attachment
402BA001 KN
381BA015 KN
L
