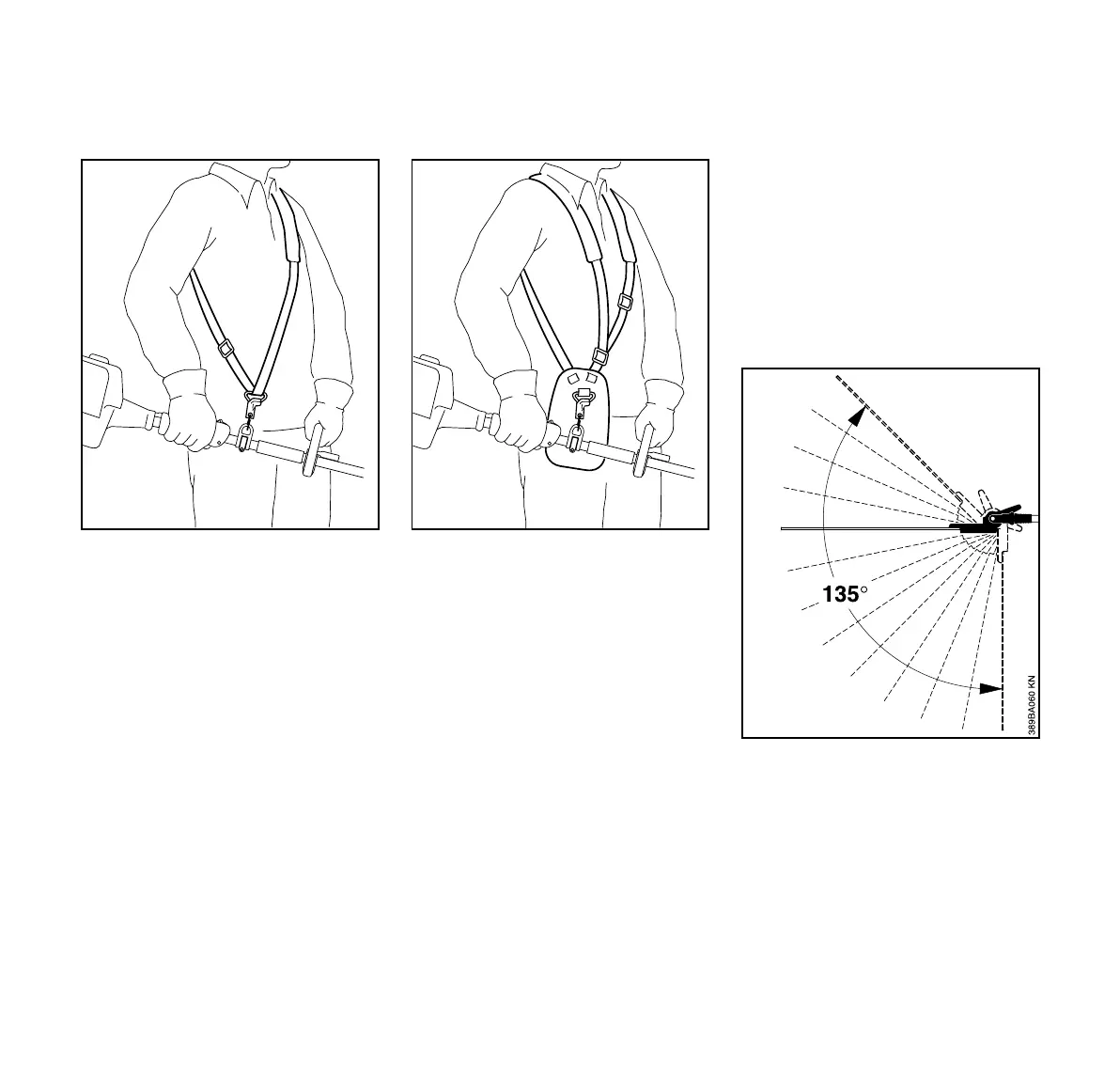

Shoulder strap
: Put on the shoulder strap (1).
: Adjust length until the spring hook
(3) rests against your right hip.
Full harness*
: Put on the full harness (2).
: Adjust length until the spring hook
(3) rests against your right hip.
* see chapter
“Symbols Used in this Manual“
135° Version
The angle of the cutter bar can be
adjusted upwards in 4 stages from 0°
(straight) to 45°, and downwards in 8
stages from 0° to 90° (right angle facing
down). There are therefore 13 possible
working positions.
There is also a special transport
position.
Fitting the Harness
1
389BA055 KN
3
2
389BA056 KN
3
Adjusting Cutter Bar
