Stihl HT 102 - Main Parts

HT 102, HT 103, HT 132, HT 133
English
40
1 Handle Hose (HT 102, HT 132)
2 Fixed Drive Tube (HT 102, HT 132)
3 Carrying Ring (HT 102, HT 132)
4 Stop Switch
5 Throttle Trigger Lockout
6 Choke Lever
7 Air Filter Cover
8 Fuel Tank
9 Throttle Trigger
10 Carrying Ring (HT 103, HT 133)
11 Handle Hose (HT 103, HT 133)
12 Telescopic Drive Tube (Shaft)
(HT 103, HT 133)
13 Oil Filler Cap
14 Oilomatic Saw Chain
15 Guide Bar
16 Oil Tank
17 Clamp Nut (HT 101, HT 131)
18 Chain Sprocket Cover
19 Hook
20 Chain Guard (Scabbard)
21 Chain Tensioner
22 Chain Sprocket
23 Machine Support
24 Fuel Tank
25 Fuel Filler Cap
26 Carburetor Adjusting Screws
27 Manual Fuel Pump
28 Starter Grip
29 Cover
30 Muffler (with Spark Arresting
Screen)
# Serial Number

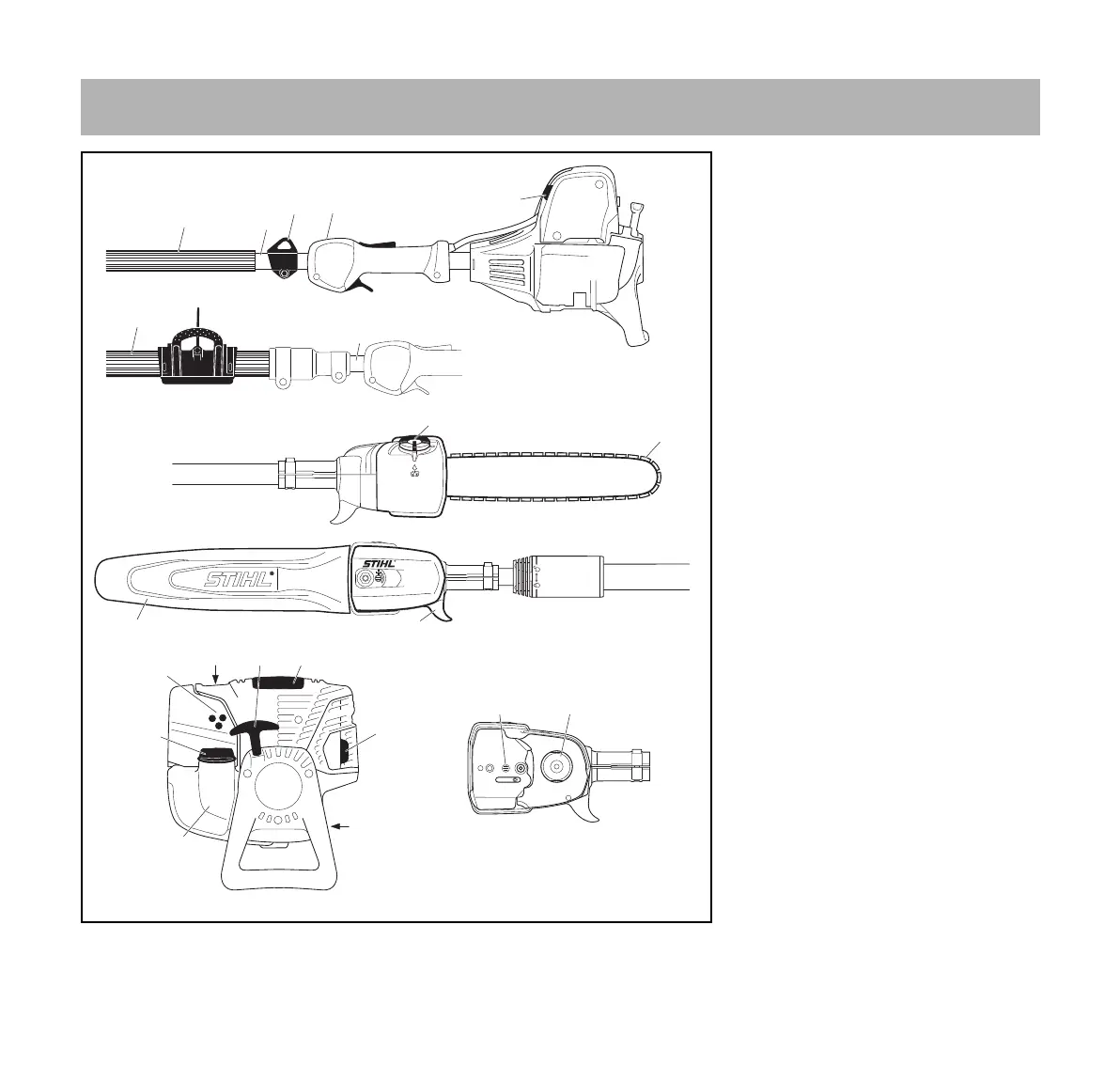

Main Parts
5
7
8
9
10
#
24
25
26
27 28
4
3
1
11
12
2
6
14
13
16
18
23
15
17
1920
21
30
29
22
