Stihl HT 102 - Adjusting the Telescoping Shaft; Fitting the Harness

HT 102, HT 103, HT 132, HT 133
English
25
WARNING
Always shut off the engine and fit the
chain guard

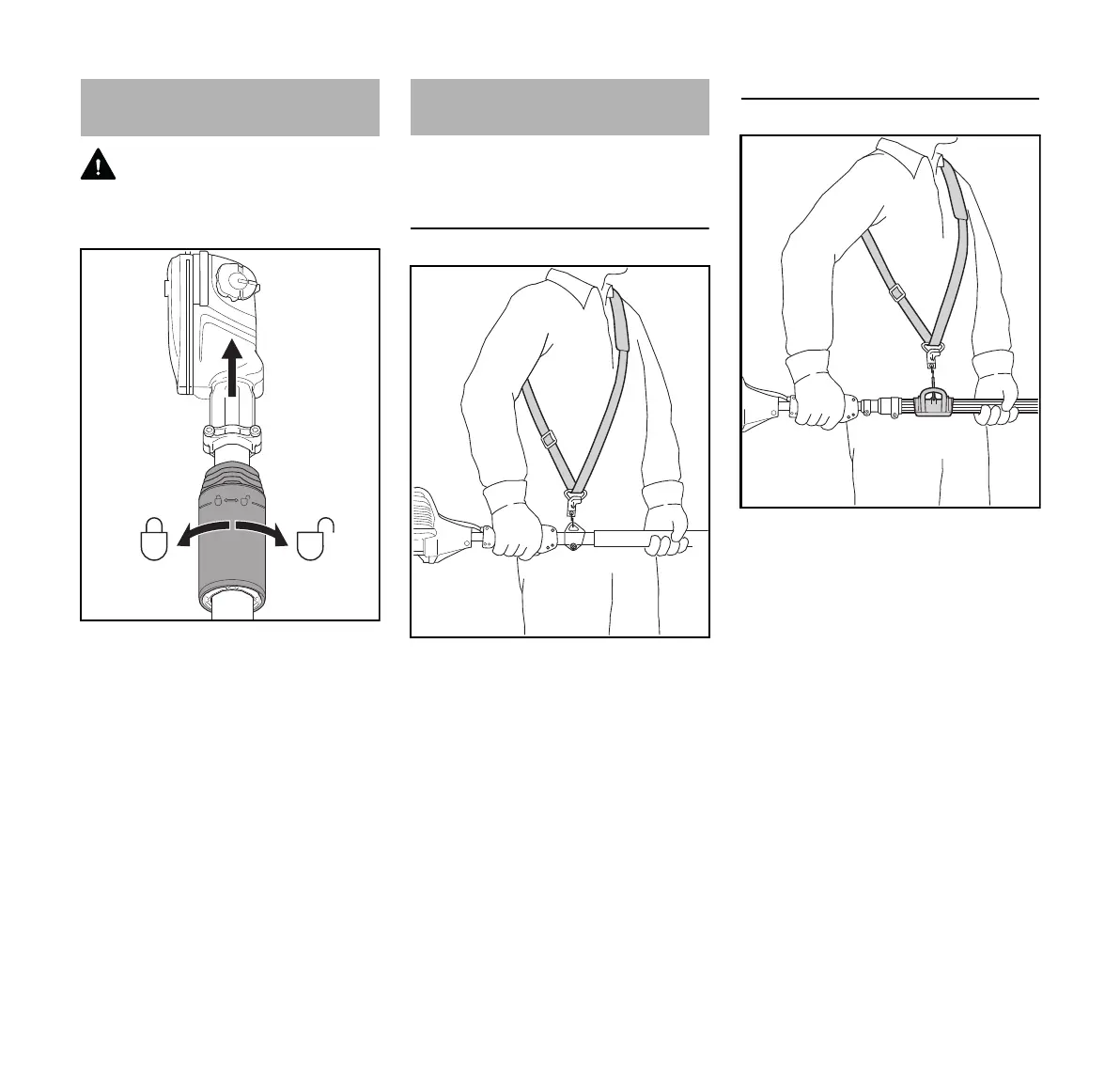

N Loosen the clamp nut half a turn
counterclockwise.
N Adjust shaft to the required length.
N Tighten down the clamp nut firmly.
The type and style of the shoulder strap
depend on the market.
Shoulder strap (HT 102, HT 132)
N Put on the shoulder strap (1).
N Adjust the length of the strap.
N With the power tool attached, the
carabiner (2) must be at about the
same height as your right hip.
Shoulder strap (HT 103, HT 133)
N Put on the shoulder strap (1).
N Adjust the length of the strap.
N With the power tool attached, the
carabiner (2) must be at about the
same height as your right hip.
Adjusting the Telescoping
Shaft
0000-GXX-1566-A0
Fitting the Harness
2
1
0000-GXX-1663-A0
2
1
0000-GXX-1664-A0
