► Push the gearbox (11) fully home as far as
stop.
► Tighten down the clamp screws moderately.
► Line up the gearbox (11) with the powerhead.
► Tighten down the clamp screws firmly.

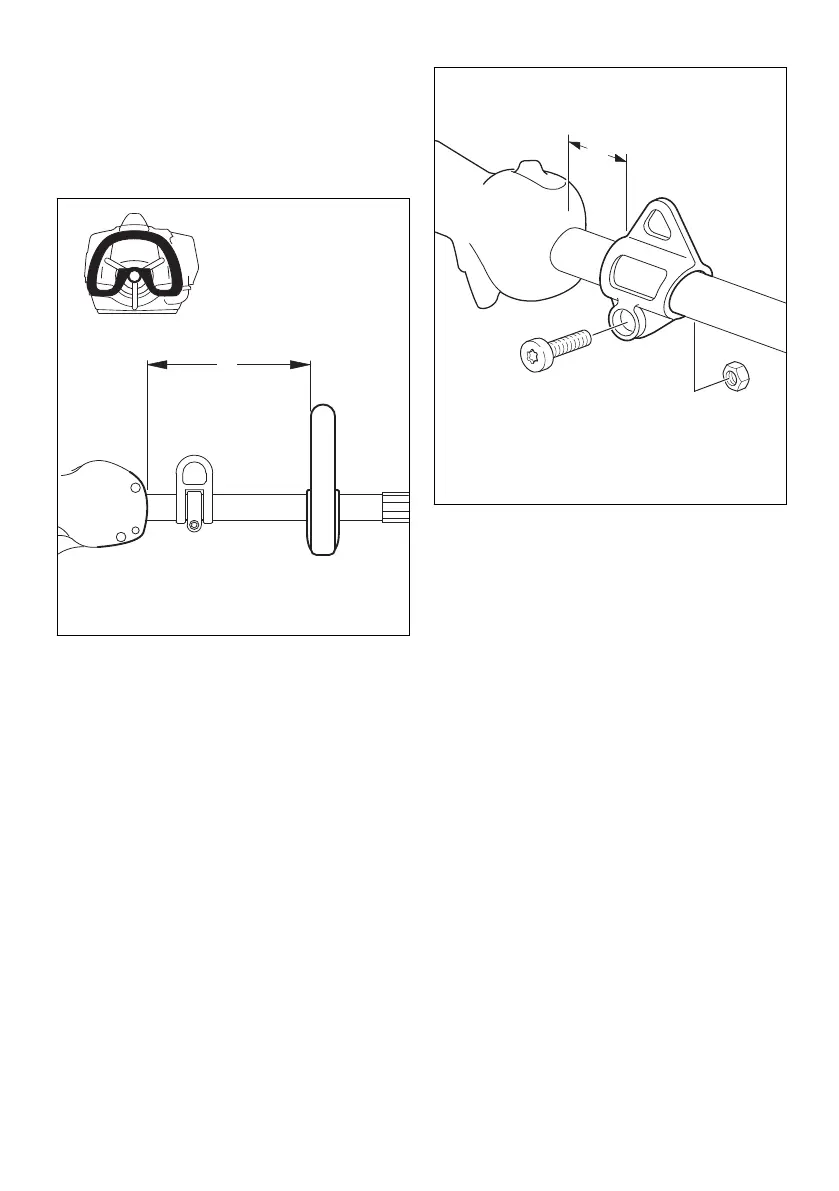

6.3 Models with Loop Handle
► Loosen the screws on the loop handle.
► Align the loop handle (2) and move it to the
most comfortable position.
Distance A must not be more than A = 20 cm.
► Tighten down the screws on the loop handle.
6.4 Fitting the Carrying Ring
A carrying ring is necessary if the power tool is to
be used with a shoulder strap/harness. Not all
versions of basic power tools are equipped with
a carrying ring.
The carrying ring is available as a special acces‐
sory and is mounted as described below.
► Mount the carrying ring (1) about 5 cm (A) for‐
ward of the control handle (2).
► Push the carrying ring (1) over the drive tube.
► Insert the M5 nut (3) in the hex recess in the
carrying ring.
► Fit the M5x14 screw (4).
► Line up the carrying ring.
► Tighten down the screw firmly.
English 6 Mounting the Attachment
