14.2 Parts Subject to Wear and Tear
Some parts of the power tool (e.g. cutting
blades) are subject to normal wear and tear even
during regular operation in accordance with
instructions and, depending on the type and
duration of use, have to be replaced in good
time.

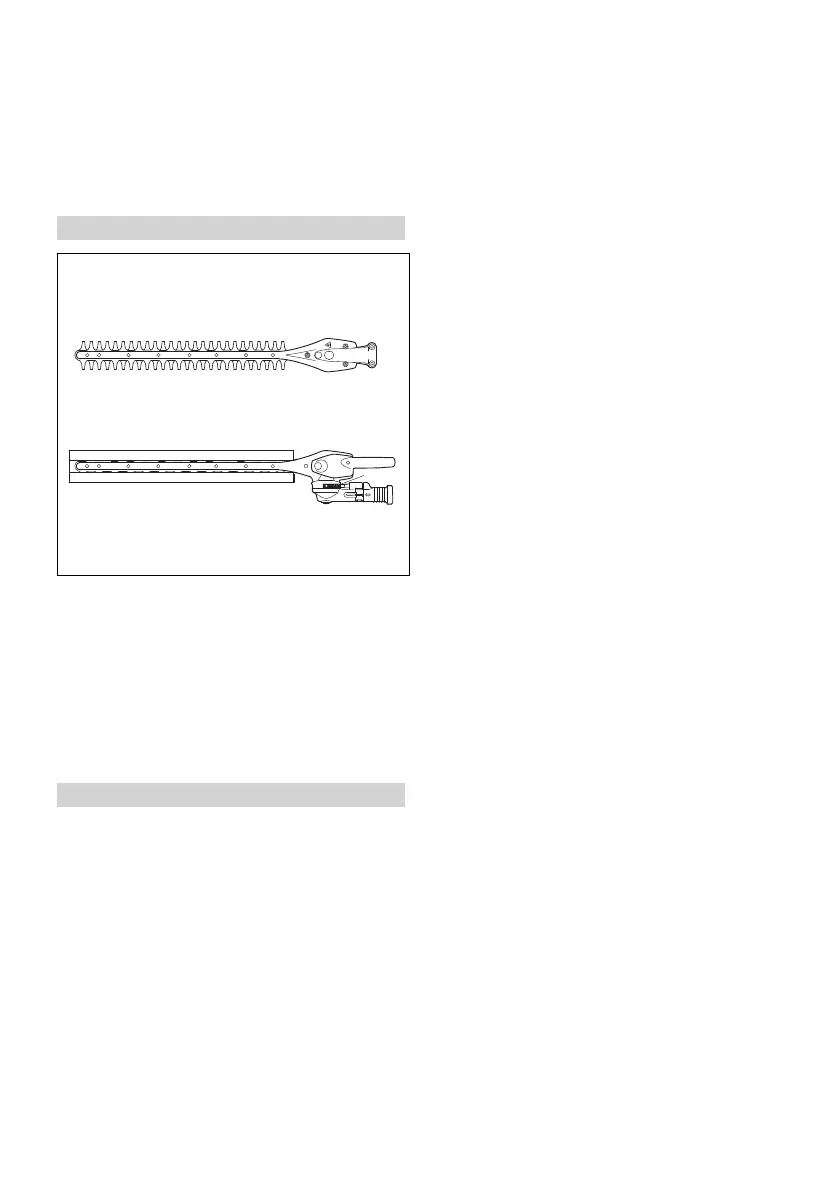

15 Main Parts
1
2
0000-GXX-1851-A0
4
3
5
6
2
7
1 Cutting blades
2 Blade drive gear
3 Angle drive
4 Sliding sleeve
5 Quadrant
6 Adjusting lever
7 Blade guard (scabbard)
16 Specifications
16.1 Cutting Blades
Type: Double-edged for
bidirectional cut‐
ting
Cutting length: 500 mm, 600 mm
Tooth spacing: 34 mm
Tooth height: 22 mm
Sharpening angle: 45° to horizontal
16.2 Weight
HL 0° 500 mm: 1.4 kg
HL 145° 500 mm: 1.8 kg
HL 145° 600 mm: 1.9 kg
16.3 Noise and Vibration Data
Noise and vibration data measurements on
power tools with the HL attachment include idling
and rated maximum speed in a ratio of 1:4.
For further details on compliance with Vibration
Directive 2002/44/EC visit www.stihl.com/vib.
16.3.1 Sound pressure level L
p
to ISO 28868
HL 0° 500 mm
KA 85 R: 95 dB(A)
FS 91 R: 91 dB(A)
FS 111 R: 91 dB(A)
FS 131 R: 95 dB(A)
HT 102: 91 dB(A)
HT 132: 95 dB(A)
HL 92: 92 dB(A)
HL 92 K: 91 dB(A)
HL 94: 91 dB(A)
HL 145° 500 mm, 600 mm
KA 85 R: 95 dB(A)
FS 91: 96 dB(A)
FS 91 R: 91 dB(A)
FS 111: 96 dB(A)
FS 111 R: 91 dB(A)
FS 131: 100 dB(A)
FS 131 R: 95 dB(A)
HT 102: 91 dB(A)
HT 132: 95 dB(A)
HL 92: 92 dB(A)
HL 92 K: 91 dB(A)
HL 94: 91 dB(A)
16.3.2 Sound power level L
w
to ISO 22868
HL 0° 500 mm
KA 85 R: 109 dB(A)
FS 91 R: 106 dB(A)
FS 111 R: 106 dB(A)
FS 131 R 110 dB(A)
HT 102: 106 dB(A)
HT 132: 110 dB(A)
HL 92: 108 dB(A)
HL 92 K: 107 dB(A)
HL 94: 107 dB(A)
HL 145° 500 mm, 600 mm
KA 85 R: 109 dB(A)
FS 91: 106 dB(A)
FS 91 R: 106 dB(A)
FS 111 R: 106 dB(A)
FS 131 110 dB(A)
FS 131 R 110 dB(A)
HT 102: 106 dB(A)
HT 132: 110 dB(A)
HL 92: 108 dB(A)
HL 92 K: 107 dB(A)
HL 94: 107 dB(A)
English 15 Main Parts
18 0458-401-0121-E
