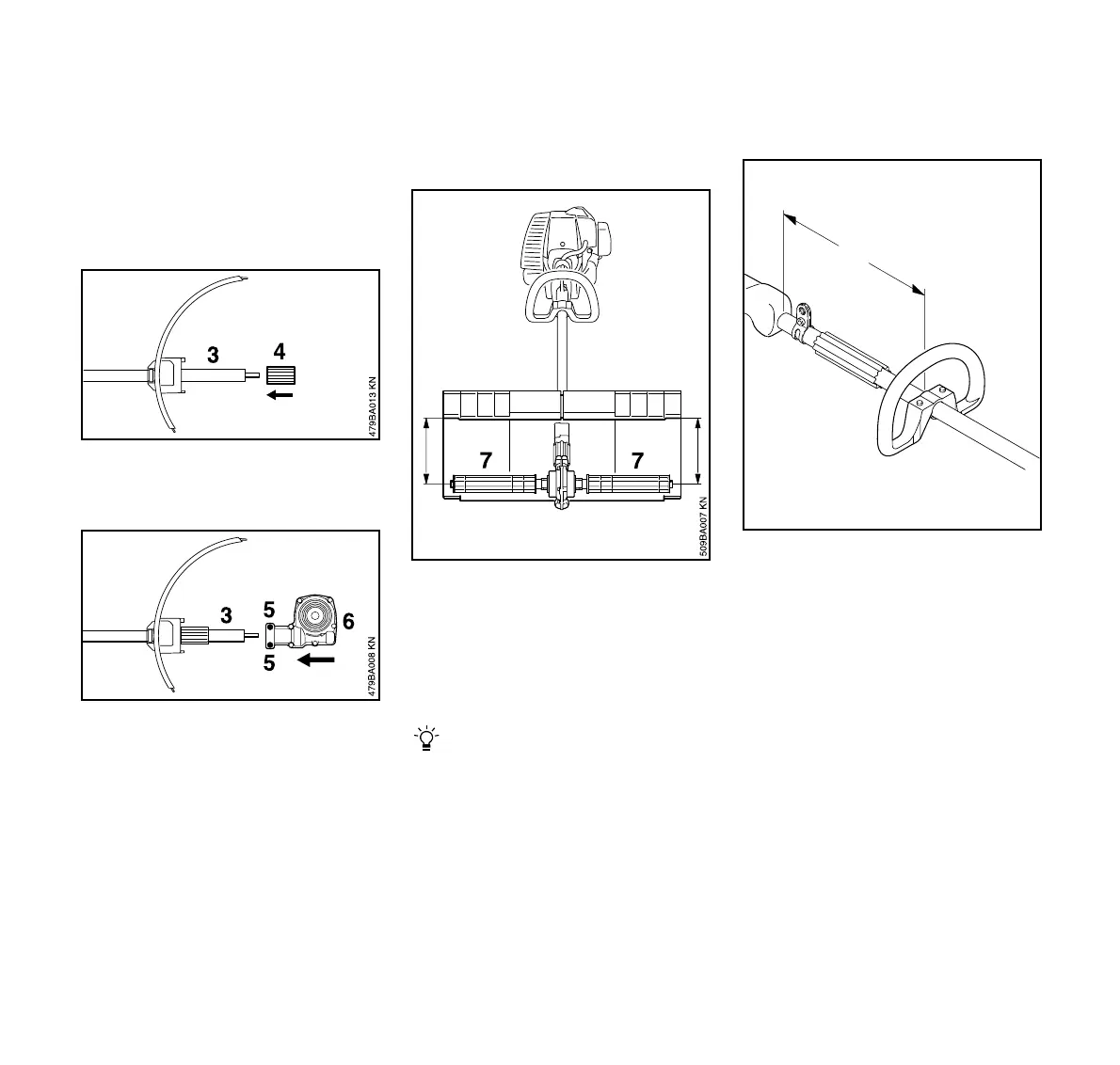

Mounting the Gearbox
: Remove both sweeping
attachments – see “Replacing the
Sweeping Attachments”.
: Push the sleeve (4) onto the drive
tube (3) as far as stop.
: Loosen the clamp screws (5).
: Push the gearbox (6) onto the drive
tube (3) and engage it by turning it
back and forth.
Aligning the Gearbox
: Line up the gearbox on the drive
shaft so that the distance between
the horizontal axles (7) and the
deflector is the same at both sides.
: Tighten down the clamp screws
firmly.
It must not be possible to rotate the
gearbox on the drive tube.
: Mount the two sweeping
attachments – see chapter on
“Replacing the Sweeping
Attachments”.
Position of Loop Handle
: Fit the loop handle (1) on the drive
tube approx. 8“ / (20 cm) (A)
forward of the control handle (2).
: Make sure that any parts that are
already fitted, ie. the spacer sleeve*
(3) and carrying eye* (4), are
between the loop handle and
control handle.
* see “Guide to Using this Manual”
Mounting the Loop Handle*
2
1
002BA184 KN
A
4
3
