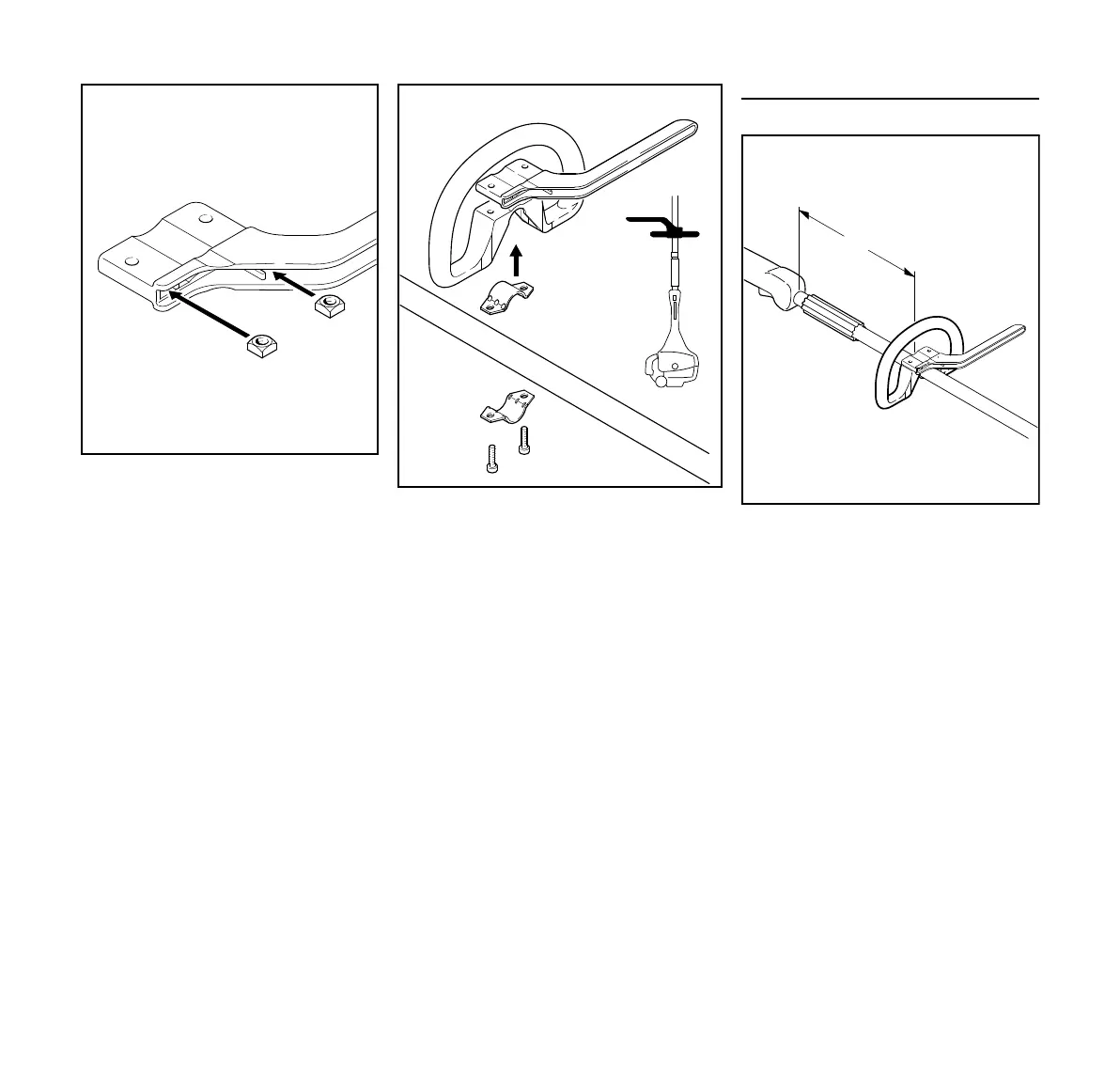

N Insert the square nuts (1) in the
barrier bar (2) – the holes must line
up
N Insert the clamp (3) in the loop
handle (4) and position them
together on the shaft (5)
N Position the clamp (6) against the
shaft
N Position the barrier bar (2) – note
position!
N Line up the holes
N Insert the screws (7) in the holes
and screw them into the barrier bar
as far as they will go
N Go to "Adjusting and Securing the
Loop Handle"
Always leave the barrier bar attached.
Orienting and Securing the Loop Handle
By changing the distance (A), the
handle can be moved into the best
position for the operator and application.
N Secure the loop handle
N Line up the loop handle
N Tighten down the screws firmly –
lock the nuts if necessary
2
002BA098 KN
1
1
5
2
4
002BA589 KN
3
6
7
7
A
002BA598 KN

Stihl KM 56 RC Specifications

General

Displacement	27.2 cm³
Fuel Capacity	0.33 l
Power Source	Gasoline
Idle Speed	2, 800 rpm
Fuel Tank Capacity	0.33 l
Engine Power	0.8 kW
Engine	2-stroke
Ignition System	Electronic
Starter System	STIHL ErgoStart (E)
