Stihl MS 181 Instruction Manual

MS 171, MS 171 C, MS 181, MS 181 C, MS 211, MS 211 C
English
25

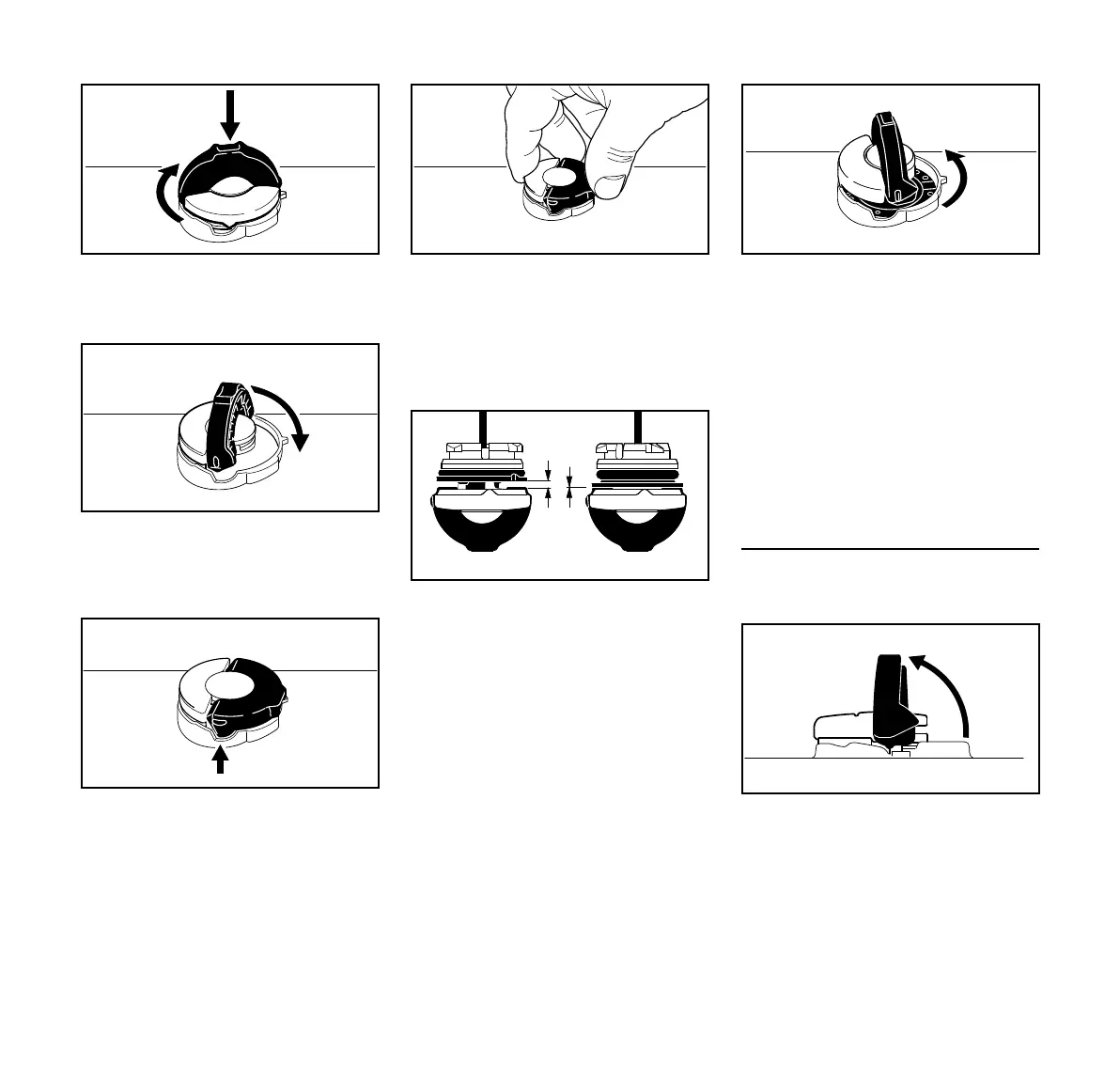

N While holding the cap depressed,
turn it clockwise until it engages in
position.
N Fold the grip flush with the top of the
cap.
Checking security of cap
– The lug on the grip must fully
engage the recess (arrow).
N Grip the cap – it is properly locked if
it cannot be turned or removed.
If the cap can be turned or removed
Bottom of cap is twisted in relation to
top:
N Place the cap on the opening and
rotate it counterclockwise until it
engages the filler neck.
N Continue rotating the cap
counterclockwise (about a quarter
turn) – this causes the bottom of the
cap to be turned to the correct
position.
N Turn and lock the cap clockwise –
see sections on "Closing" and
"Checking security of cap".
Tank cap with markings and symbols
Opening
N Raise the grip until it is upright.
001BA221 KN
001BA222 KN
001BA223 KN
Left: Bottom of cap twisted
Right: Bottom of cap correctly
positioned
001BA225 KN
001BA227 KN
001BA226 KN
001BA236 KN

Stihl MS 181 Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	400 mm
Product color	Black, Grey, Orange
Chain tensioner	Yes
Motor speed (max)	10000 RPM
Fuel tank capacity	0.266 L
Engine displacement	31.8 cm³
Power source	Gasoline
Sound power level	112 dB
Vibration emission	3.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	43004300 g
