Stihl MS 181 Instruction Manual

MS 171, MS 171 C, MS 181, MS 181 C, MS 211, MS 211 C
English
26

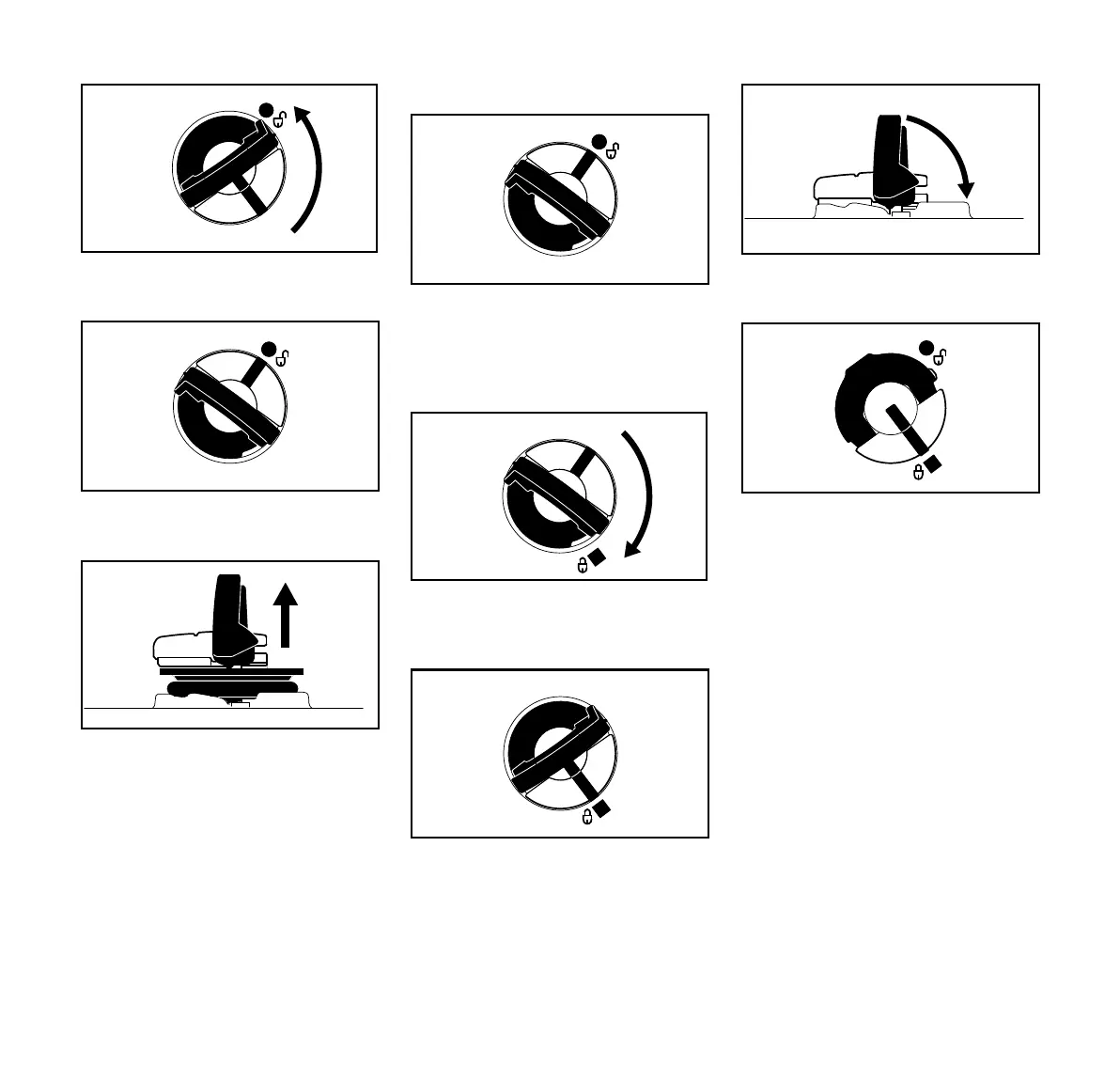

N Turn the cap counterclockwise
(about a quarter turn).
Marks on tank cap and fuel tank must
line up.
N Remove the cap.
Filling up with fuel
Take care not to spill fuel while fueling
and do not overfill the tank.
STIHL recommends you use the STIHL
filler nozzle for fuel (special accessory).
N Fill up with fuel.
Closing
Grip must be vertical:
N Fit the cap – marks on tank cap and
fuel tank must line up.
N Press the cap down as far as stop.
N While holding the cap depressed,
turn it clockwise until it engages in
position.
The marks on the tank cap and fuel tank
are then in alignment.
N Fold the grip down so that it is flush
with the top of the cap.
Tank cap is locked.
If the tank cap cannot be locked in the
fuel tank opening
Bottom of cap is twisted in relation to
top.
N Remove the cap from the fuel tank
and check it from above.
001BA232 KN
001BA234 KN
001BA237 KN
001BA234 KN
001BA233 KN
001BA231 KN
001BA235 KN
001BA241 KN

Stihl MS 181 Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	400 mm
Product color	Black, Grey, Orange
Chain tensioner	Yes
Motor speed (max)	10000 RPM
Fuel tank capacity	0.266 L
Engine displacement	31.8 cm³
Power source	Gasoline
Sound power level	112 dB
Vibration emission	3.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	43004300 g
