Stihl MS 192 T Manual

19MS 192 T

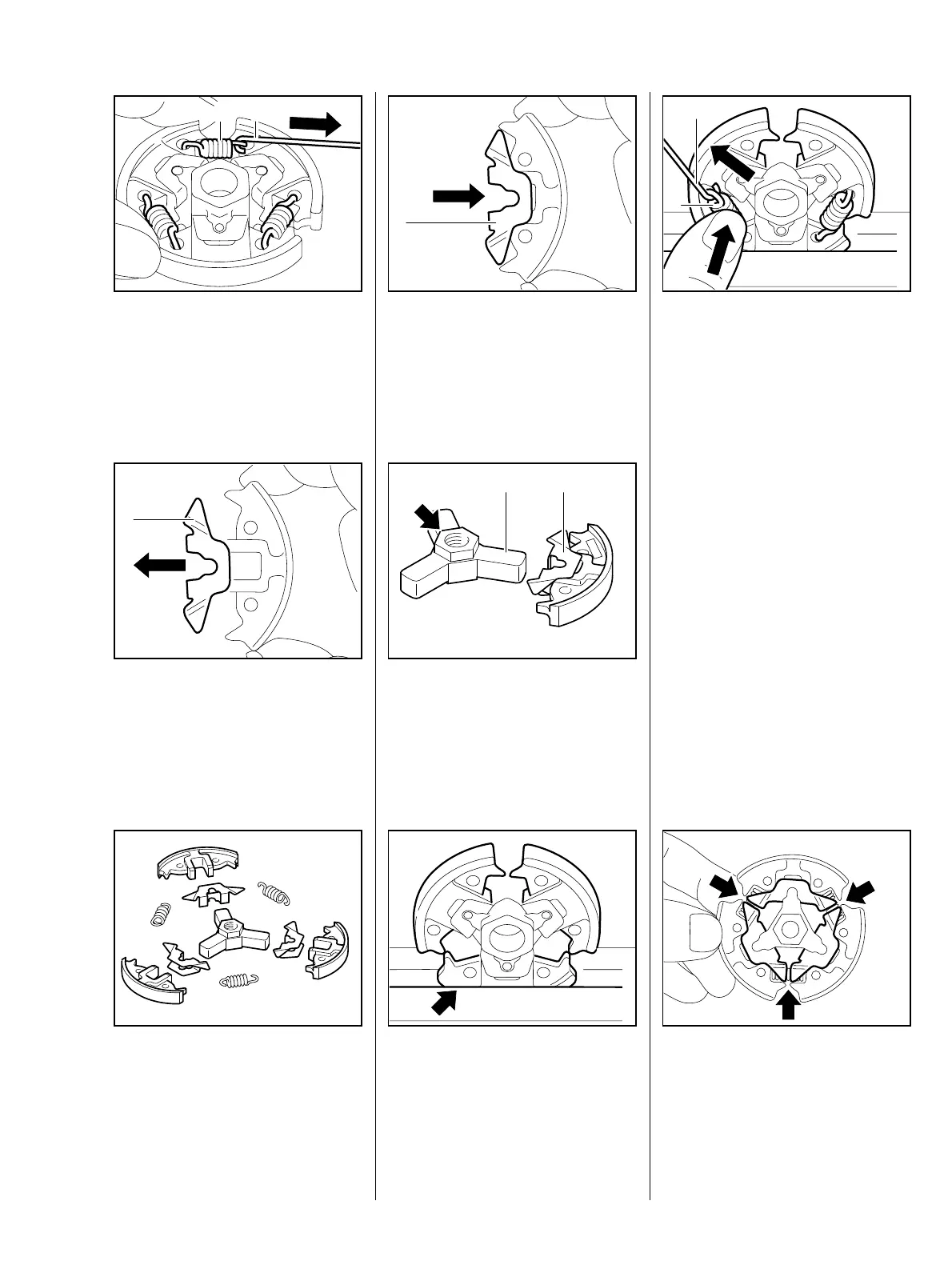

Disassembly
: Use hook (2) 5910 890 2800 to
remove the clutch springs (1).
217RA013 TG
2
1
– Pull the clutch shoes off the
carrier.
: Pull the retainers (1) off the clutch
shoes.
217RA014 TG
1
– Clean all parts.
– Replace any damaged parts.
217RA015 TG
: Slip the retainers (1) onto the
clutch shoes.
217RA016 TG
1
: Fit the clutch shoes over the
arms (1) so that the series
number (2) is on the same side
as the raised hexagon (arrow).
217RA017 TG
12
: Clamp the clutch in a vice
(arrow).
217RA018 TG
: Attach one end of the clutch
spring (1) to the clutch shoes.
: Use the hook (2) 5910 890 2800
to attach the other end of the
spring and press it firmly into the
clutch shoe.
217RA019 TG
1
2
The tips of the retainers (arrows)
must match one another on the side
with the raised hexagon and the
series numbers must be visible on
the clutch shoes.
217RA020 TG
1137
1137
1137

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
