43MS 192 T

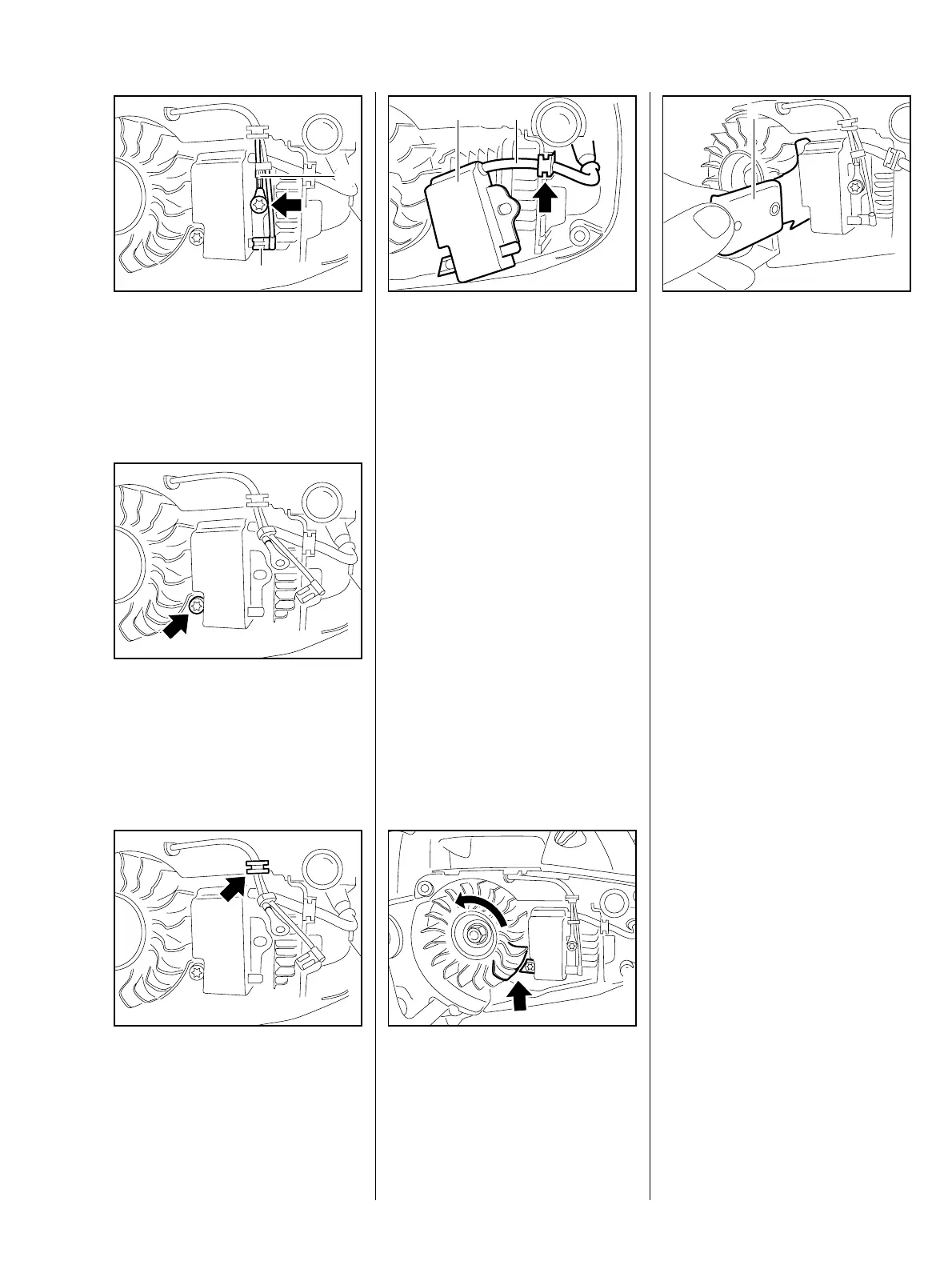

: Disconnect the short circuit
line (1).
: Remove the screw (arrow).
: Disconnect the ground wire (2).
217RA099 TG
1
2
: Remove the screw (arrow).
217RA100 TG
: Remove the cable guide (arrow).
217RA101 TG
: Remove the ignition module (1)
and cable guide (arrow) for the
ignition lead (2).
– Pull the ignition lead with spark
plug boot out of the engine
housing.
217RA102 TG
1 2
A damaged ignition lead can only be
replaced together with the ignition
module.
– Examine the spark plug boot and
replace it if necessary, b 9.4
– Reassemble parts in reverse
order.
– Moderately tighten the screws on
the ignition module.
: Turn the flywheel until the
magnet pole is lined up with the
ignition module (arrow).
217RA098 TG
: Slide the setting gauge (1)
4118 890 6401 between the
arms of the ignition module and
the magnet pole of the flywheel.
– Press the ignition module against
the setting gauge.
217RA096 TG
1
– Tighten down the screws.
– Tightening torques, b 3.5
– Reassemble remaining parts in
reverse order.

Stihl MS 192 T Specifications

General

Engine Displacement	30.1 cc
Recommended bar length	30 cm
Engine Power	1.3 kW
Guide Bar Length	30-35 cm
Fuel Capacity	0.27 liters
Chain Oil Capacity	0.22 liters
Chain pitch	3/8"
