59MS 192 T

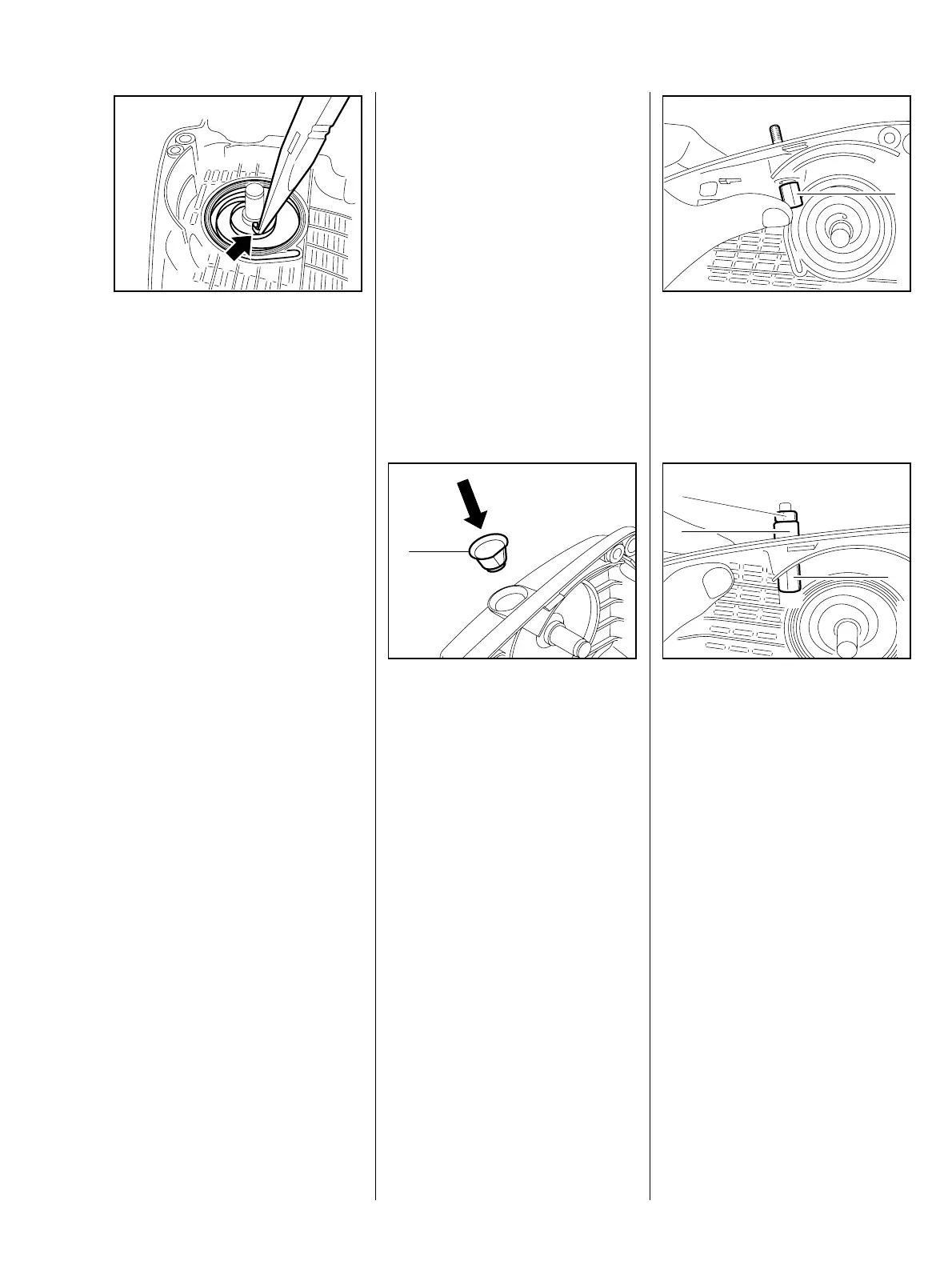

: Arrange the inner loop (arrow)
with suitable pliers so that it is
slightly angled against the starter
post.
– Install the rope rotor, b 10.4
– Reassemble remaining parts in
reverse order.
217RA277 TG
Wear on the guide bushing is
accelerated by the starter rope
being pulled sideways. The wall of
the bushing eventually wears
through and the bushing becomes
loose.
– Remove the fan housing,
b 10.2
– Relax the rewind spring and
remove the starter rope and rope
rotor, b 10.4
– Use a suitable tool to remove the
damaged guide bushing from the
fan housing.
: Place the new guide bushing (1)
in the hole in the fan housing.
217RA278 TG
1
: Insert the screw spindle (1) of the
installing tool 0000 890 2201
through the guide bushing from
inside the housing.
1
217RA279 TG
: Fit the thrust sleeve (1) and hex
nut (2).
: Tighten down the hex nut,
steadying the screw (3), until the
bushing is firmly seated.
The installing tool flares the lower
1
2
3
217RA280 TG
end of the rope bushing.
– Remove the installing tool.
– Reassemble remaining parts in
reverse order.
10.8 Starter Rope Guide
Bushing
