62 MS 192 T
The AV spring is located between
handle housing and engine housing
to secure the handle housing
without transmitting vibrations. The
replacement spring is supplied
complete with bearing plug.
– Remove the sprocket cover and
bar and chain, b 5.1
– Open the handle housing,
b 12.1
: Remove the screw (arrow).

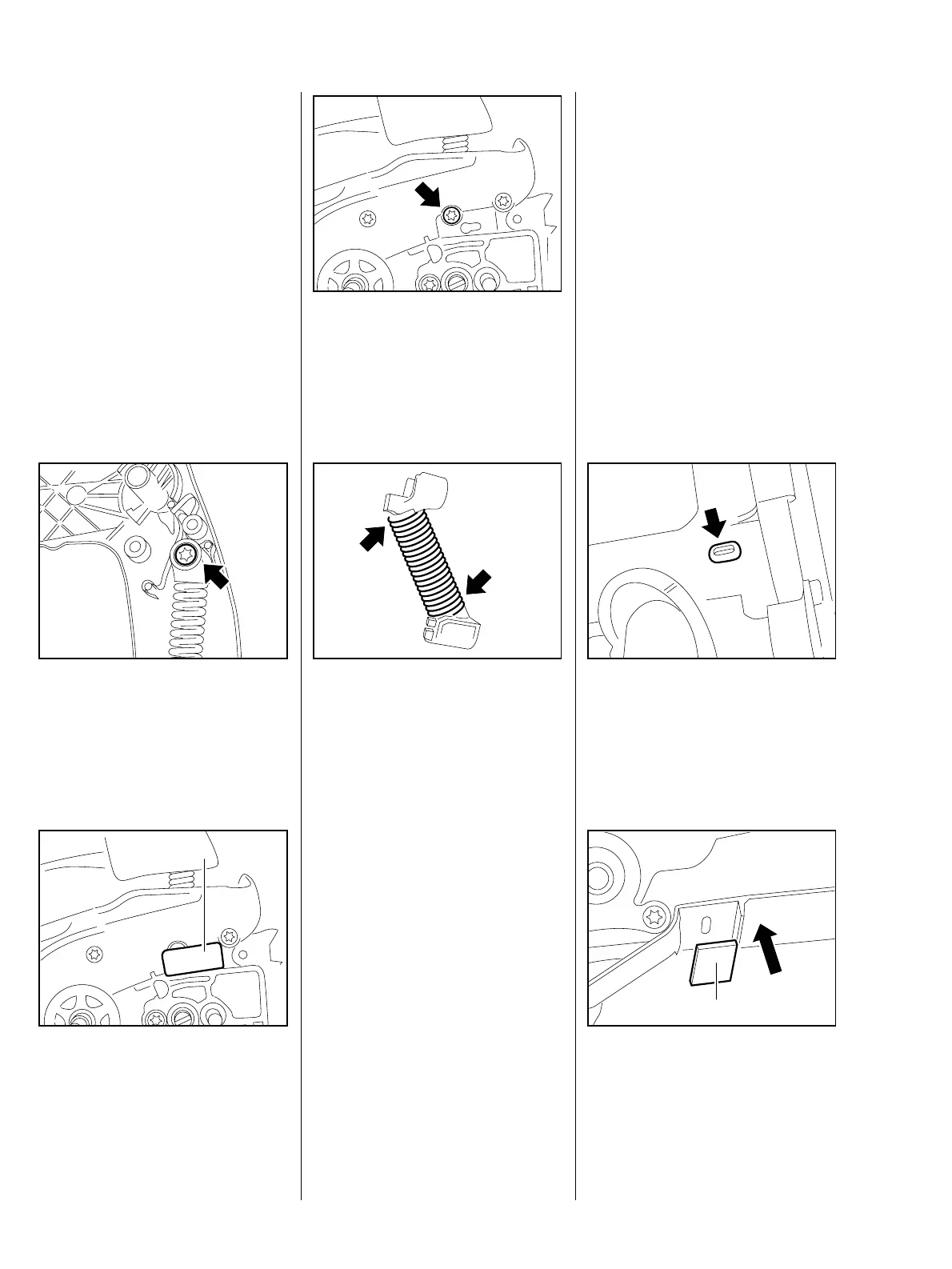

217RA170 TG
: Prise off the bumper strip (1) with
a suitable tool.
217RA172 TG
1
: Remove the screw (arrow).
– Draw the AV spring out of the
recess in the engine housing.
217RA169 TG
– Examine the AV spring and
replace it if necessary,
: Before installing the AV spring,
ensure that it has been fully
turned into the bearing plugs
(arrows).
217RA168 TG
– Reassemble parts in reverse
order.
– Tightening torques, b 3.5
To prevent the engine vibrating in
the engine housing, a clamp is fitted
on the inside of the engine housing
so that the cylinder rests against the
clamp.
Remove the engine, b 8.4
– The following work is made
easier by using STIHL Press
Fluid, b 16
: Press the rubber stub (arrow) out
of the engine housing.
– Examine the clamp and replace it
if necessary,
217RA184 TG
: Press the clamp (1) into the
engine housing from below.
– Reassemble remaining parts in
reverse order.
217RA185 TG
1
11.3 AV Spring between
Handle Housing / Engine
Housing
11.4 Clamp
